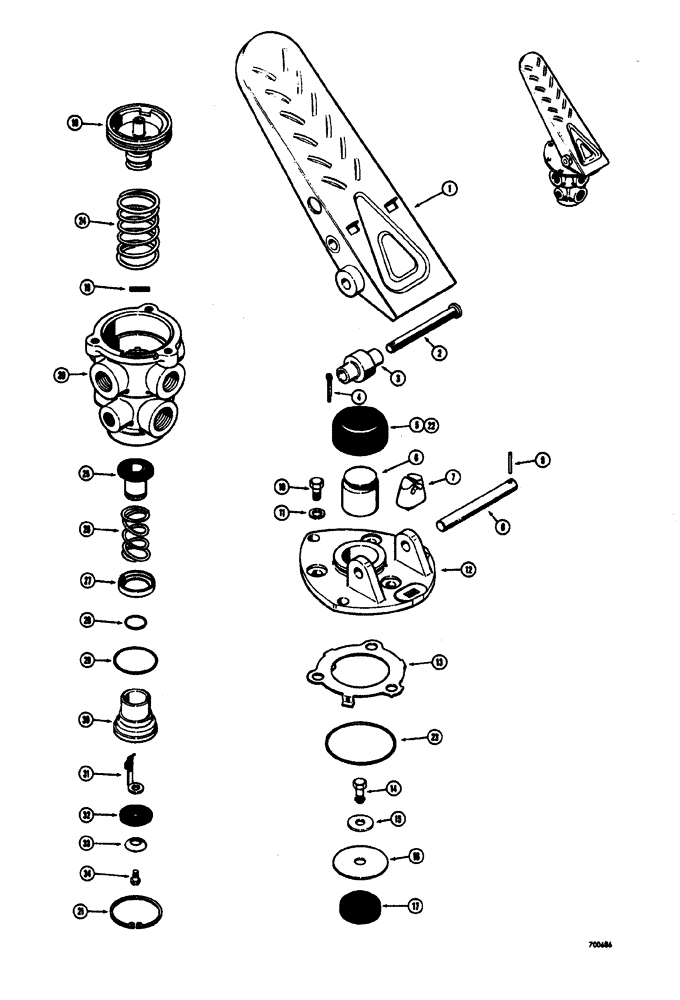

Запчасти Case W20 (194) - BRAKE SYSTEM L44173 TREADLE AND BRAKE VALVE (07) - BRAKES
№
Артикул
Название
Примечание
Количество
L44173
VALVE
AND TREADLE ASSEMBLY - brake, Includes Ref: 1-34
1шт.
1
L32927
PEDAL
TREADLE - brake valve
1шт.
2
L31367
PIN
roller, treadle valve
1шт.
3
L32676
ROLLER
treadle valve
1шт.
4
132-26
COTTER PIN
Pin, Split (Cotter), 3/32" x 3/4"
1шт.
5
L32730
BOOT
SPARE PART treadle, brake (Included in L31806 repair kit)
1шт.
6
L32925
PLUNGER
treadle, brake
1шт.
7
L31362
BUTTON
stop, treadle (Brake)
1шт.
8
L31465
PIN
fulcrum, treadle (Brake)
1шт.
9
138-59
LOCK PIN,1/8" x 7/8", Slotted
Fulcrum pin
1шт.
10
13-512
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
(Plate to brake valve)
3шт.
11
92-5
LOCK WASHER,5/16"
3шт.
12
L32924
PLATE ASSY.
mounting, brake treadle
1шт.
L31360
VALVE
ASSEMBLY - brake, Includes Ref: 13-34
1шт.
13
NLS
NO LONGER SERVICED
- valve
1шт.
L31380
PISTON
ASSEMBLY - valve, Includes Ref: 14-18
1шт.
14
L31384
LOCK BOLT,Hex, 1/4" - 20 x 5/8"
locking, special
1шт.
15
L31387
WASHER
compression, spring
1шт.
16
L31386
SEAT
spring, piston
1шт.
17
L31385
SPRING
rubber piston
1шт.
18
L31383
PISTON
valve
1шт.
19
L31459
FILTER
vent
1шт.
20
NSS
NOT SOLD SEPARAT
BODY - valve
1шт.
21
NLS
NO LONGER SERVICED
Ring, Snap, , washer 1.625", Int, #162
1шт.
L31806
KIT
repair valve, Includes Ref: 22-34
1шт.
22
L32730
BOOT
SPARE PART treadle, brake
1шт.
23
L31381
O-RING,2 1/8" ID x 2 3/8" OD x 1/8"
piston
1шт.
24
L31379
SPRING
return, piston
1шт.
NSS
NOT SOLD SEPARAT
VALVE ASSEMBLY - inlet and exhaust
1шт.
25
L31375
VALVE
inlet and exhaust
1шт.
26
L31378
VALVE SPRING
1шт.
27
L31376
RETAINER
valve
1шт.
28
L31377
O-RING,5/8" ID x 3/4" OD x 1/16"
valve
1шт.
29
L31374
O-RING
exhaust check valve
1шт.
30
L31370
SEAT
check valve, exhaust
1шт.
31
L31371
SPRING
preload, inlet valve
1шт.
32
L31372
DIAPHRAGM
valve
1шт.
33
L31373
WASHER
diaphragm, valve
1шт.
34
182-84
SCREW,Slotted Pan Hd, #8-32 x 3/8"
machine, slotted head (#8 - 32 NC x 3/8")
1шт.
Выбрано товаров: 39
