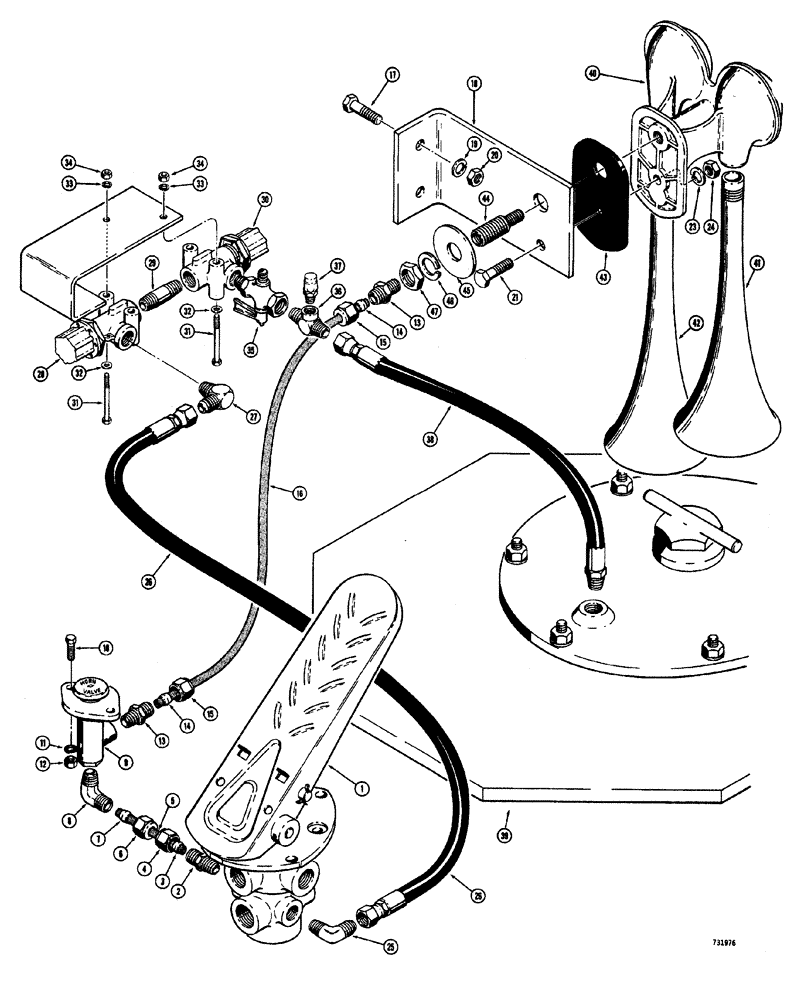

Запчасти Case W20 (192) - BRAKE SYS. TREADLE TO HYD. TANK & HORN SHUT-OFF VALVE ON LOW PRESSR. SIDE OF PRESSR. REDUCING VALVE (07) - BRAKES

1

L44173

VALVE

AND TREADLE ASSEMBLY - brake, See parts list Figure: 194

1шт.

222-5003

CONNECTOR, ELEC,3/8"-24 x 1/4" NPT, Hi-seal

SPARE PART ASSEMBLY - tube, 1/4", Includes Ref: 3, 4

1шт.

2

NSS

NOT SOLD SEPARAT

CONNECTOR - tube

1шт.

3

222-5047

SLEEVE,1/4" Tube

connector

1шт.

4

222-5060

NUT,1/2"-20

connector

1шт.

5

L48193

TUBE,0.25" OD

treadle to horn valve

1шт.

222-5024

ELBOW,90 Degree, 1/2"-20 x 1/4" NPT, Hi-seal

ASSEMBLY - 90° 1/4", Includes Ref: 6-8

1шт.

6

222-5060

NUT,1/2"-20

elbow

1шт.

7

222-5047

SLEEVE,1/4" Tube

elbow

1шт.

8

NSS

NOT SOLD SEPARAT

BODY - elbow

1шт.

9

L12647

VALVE

horn, air (Parts list Figure: 200)

1шт.

10

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

11

92-4

LOCK WASHER,1/4"

2шт.

12

25-104

NUT,1/4"-20, G5

2шт.

222-5002

HYD CONNECTOR,1/2"-20 x 1/8" NPT, Hi-seal

ASSEMBLY - straight 1/4" tube, Includes Ref: 13-15

2шт.

13

NSS

NOT SOLD SEPARAT

CONNECTOR - straight, 1/4" tube

1шт.

14

222-5047

SLEEVE,1/4" Tube

connector

1шт.

15

222-5060

NUT,1/2"-20

connector

1шт.

16

L48191

TUBE,0.25" OD

horn valve to horn

1шт.

17

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

18

L48196

BRACKET

mounting horn

1шт.

19

92- 6

WASHER - med sect lock (3/8")

2шт.

20

25-106

NUT,3/8"-16, G5

hex (3/8"- 16 NC)

2шт.

21

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

HHCS - 5/16" - 18 NC x 1-1/4"

1шт.

22

RESERVED

1шт.

23

92-5

LOCK WASHER,5/16"

1шт.

24

9635082

NUT,5/16" - 18, Gr 5

1шт.

25

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

male 90°

1шт.

26

L48025

HOSE

treadle to shut-off valve

1шт.

27

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

90° male

1шт.

28

L13530

VALVE

pressure protection (Parts list Figure: 200)

1шт.

29

217-201

PIPE,Nipple, 1/4" NPT x 15/16"

pipe 1/4" NPT x 7/8" long (Brass)

1шт.

30

L48129

VALVE

regulator, pressure (Parts list Figure: 198)

1шт.

31

13-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

2шт.

32

95-4

WASHER,1/4"

plain () 1/4"

2шт.

33

92-4

LOCK WASHER,1/4"

2шт.

34

25104

NUT - hex (1/4" - 20 NC)

2шт.

35

L53739

VALVE

air shut-off

1шт.

36

L48132

FITTING

TEE air supply

1шт.

37

D38663

VENT

VALVE - relief

1шт.

38

L48026

HOSE

TEE to hydrauhc tank

1шт.

39

NSS

NOT SOLD SEPARAT

TANK - hydraulic (See Figures: 230, 232 for related parts)

1шт.

L50225

HORN

ASSEMBLY - air, Includes Ref: 40-47

1шт.

40

NSS

NOT SOLD SEPARAT

MOTOR AND BODY - horn

1шт.

41

L33784

HORN

SPARE PART high pitch (10-3/4" long)

1шт.

42

L33785

HORN

SPARE PART HORN - low pitch (13-1/2" long)

1шт.

L33786

KIT

horn mounting, Includes Ref: 43-47

1шт.

43

NSS

NOT SOLD SEPARAT

PAD - mounting

1шт.

44

NSS

NOT SOLD SEPARAT

ADAPTER - air, Serial Range: line-horn

1шт.

45

NSS

NOT SOLD SEPARAT

WASHER - special

1шт.

46

193-63

LOCK WASHER,Int Tooth, 5/8"

lock

1шт.

47

129-127

NUT,5/8"-18, G5

1шт.
