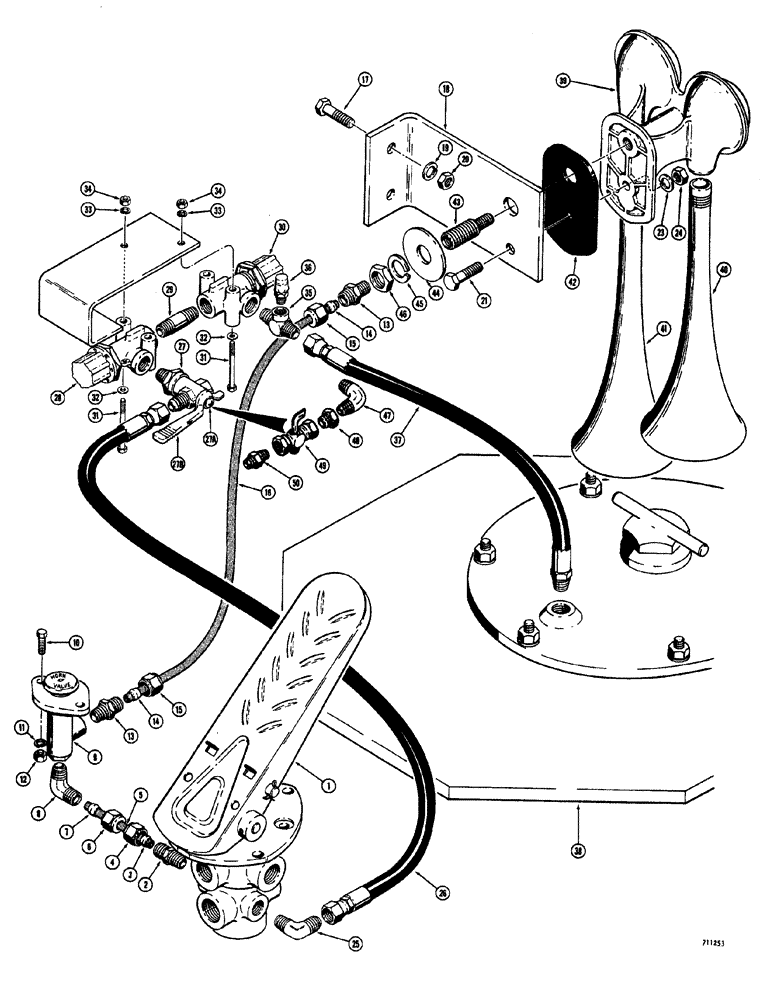

Запчасти Case W20 (188) - BRAKE SYS. TREADLE TO HYD. TANK & HORN SHUT-OFF VALVE O HIGH PRESSR. SIDE OF PRESSR. REDUCING VALVE (07) - BRAKES

1

L44173

VALVE

AND TREADLE ASSEMBLY - brake, See parts list Figure: 194

1шт.

222-5003

CONNECTOR, ELEC,3/8"-24 x 1/4" NPT, Hi-seal

SPARE PART ASSEMBLY - tube, 1/4", Includes Ref: 2-4

1шт.

2

NSS

NOT SOLD SEPARAT

TUBE connector

1шт.

3

222-5047

SLEEVE,1/4" Tube

connector

1шт.

4

222-5060

NUT,1/2"-20

connector

1шт.

5

L48193

TUBE,0.25" OD

treadle to horn valve

1шт.

222-5024

ELBOW,90 Degree, 1/2"-20 x 1/4" NPT, Hi-seal

ASSEMBLY - 90°, 1/4", Includes Ref: 6-8

1шт.

6

222-5060

NUT,1/2"-20

elbow

1шт.

7

222-5047

SLEEVE,1/4" Tube

elbow

1шт.

8

NSS

NOT SOLD SEPARAT

BODY - elbow

1шт.

9

L12647

VALVE

horn, air, See parts list Figure: 200

1шт.

10

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

11

92-4

LOCK WASHER,1/4"

2шт.

12

25-104

NUT,1/4"-20, G5

2шт.

222-5002

HYD CONNECTOR,1/2"-20 x 1/8" NPT, Hi-seal

ASSEMBLY - straight, 1/4" tube, Includes Ref: 13-15

2шт.

13

NSS

NOT SOLD SEPARAT

CONNECTOR - straight, 1/4" tube

1шт.

14

222-5047

SLEEVE,1/4" Tube

connector

1шт.

15

222-5060

NUT,1/2"-20

connector

1шт.

16

L48191

TUBE,0.25" OD

horn valve to horn

1шт.

17

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

18

L48196

BRACKET

mounting, horn

1шт.

19

92-6

LOCK WASHER,3/8"

2шт.

20

25-106

NUT,3/8"-16, G5

hex (3/8" - 16 NC)

2шт.

21

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

HHCS - 5/16 - 18 NC x 1-1/4"

1шт.

22

RESERVED

1шт.

23

92-5

LOCK WASHER,5/16"

1шт.

24

9635082

NUT,5/16" - 18, Gr 5

1шт.

25

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

male, 90°

1шт.

26

L48025

HOSE

treadle to shutoff valve

1шт.

L47868

LOCK VALVE

ASSEMBLY - shutoff, air, (90°), Includes Ref: 27-27B, Serial Range: -9107854

1шт.

27

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

27a

175-463

SCREW - truss head (#10 - 24 NC x 1/2")

1шт.

27b

L33694

SPARE PART VALVE

1шт.

28

L13530

VALVE

pressure protection, See part list Figure: 200

1шт.

30

L48129

VALVE

regulator pressure, See parts list Figure: 198

1шт.

31

13-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

2шт.

32

95-4

WASHER,1/4"

plain () 1/4"

2шт.

33

92-4

LOCK WASHER,1/4"

2шт.

34

25-104

NUT,1/4"-20, G5

2шт.

35

L48132

FITTING

tee, air supply

1шт.

36

D38663

VENT

VALVE - relief

1шт.

37

L48026

HOSE

tee to hydraulic tank

1шт.

38

NSS

NOT SOLD SEPARAT

TANK - hydraulic, See Figures: 230 or 232 for related parts

1шт.

L50225

HORN

ASSEMBLY - air, Includes Ref: 39-41

1шт.

39

NSS

NOT SOLD SEPARAT

MOTOR AND BODY - horn

1шт.

40

L33784

HORN

SPARE PART high pitch (10-3/4" long)

1шт.

41

L33785

HORN

SPARE PART low pitch (13-1/3" long)

1шт.

L33786

KIT

MOUNTING horn, Includes Ref: 42-46

1шт.

42

NSS

NOT SOLD SEPARAT

PAD - mounting

1шт.

43

NSS

NOT SOLD SEPARAT

ADAPTER - air, Serial Range: line-horn

1шт.

44

NSS

NOT SOLD SEPARAT

WASHER - special

1шт.

45

193-63

LOCK WASHER,Int Tooth, 5/8"

lock

1шт.

46

129-127

NUT,5/8"-18, G5

1шт.

47

217-1225

ELBOW,90 Degree, 1/4"-18 Male

elbow, male pipe (90°), Start Serial: 9107854

1шт.

48

217-43

REDUCER,1/2" - 14 NPTF x 1/4" - 18 Fem NPTF

Used with L50463 valve only, Start Serial: 9107854

1шт.

49

L50463

VALVE

air, shut off with (2) 1/2" NPT female ports, When stock is exhaust, Start Serial: 9107854

1шт.

49

L53739

VALVE

air, shut off, with 1 male and I female 1/4" NPT ports, Not shown, Start Serial: 9107854

1шт.

50

218-454

HYD CONNECTOR,9/16" - 18 Male JIC x 1/2" - 14 Male NPTF

male, straight, Used with L50463 valve onlv, Start Serial: 9107854

1шт.

50

218-463

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Female NPTF

male, straight, Used with L53739 valve onlv, Not shown, Start Serial: 9107854

1шт.
