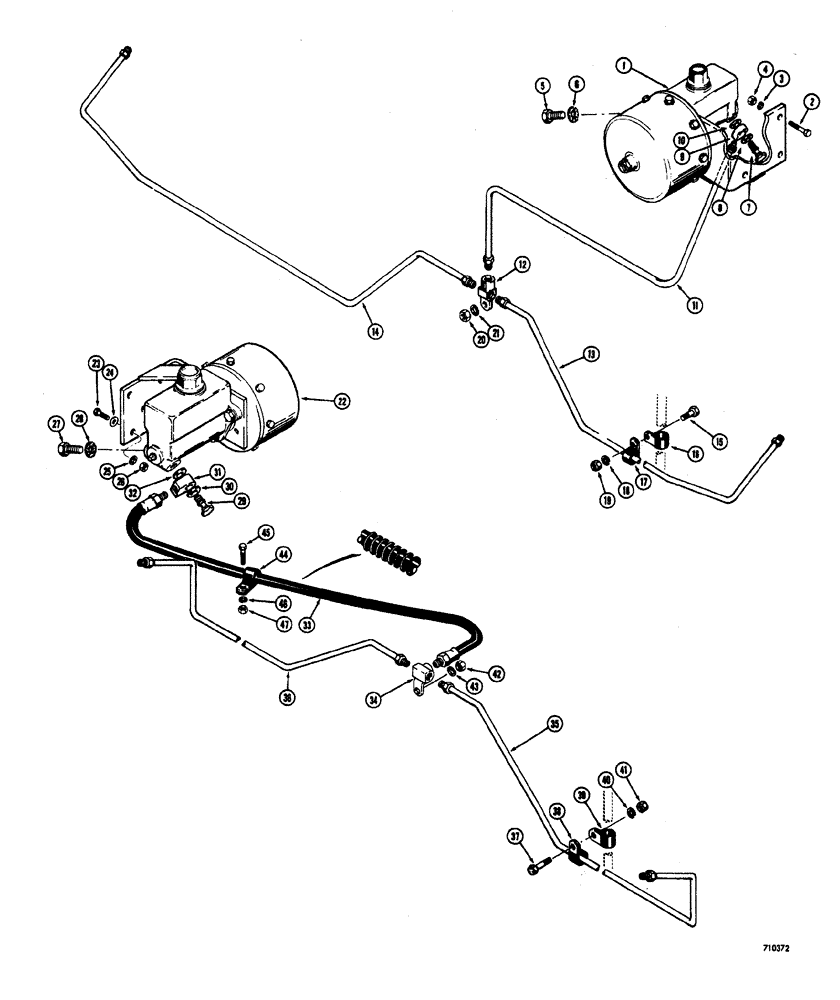

Запчасти Case W20 (186) - BRAKE SYSTEM BRAKE MASTER CYLINDERS TO WHEEL CYLINDERS (07) - BRAKES

1

L40663

CYLINDER

master - brake, front axle, See parts list Figure: 196

1шт.

2

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

(Master cylinder mounting)

2шт.

3

92-6

LOCK WASHER,3/8"

2шт.

4

25-106

NUT,3/8"-16, G5

hex (3/8" - 16 NC)

2шт.

5

114-412

BOLT,Hex, 1/2" - 20 x 5/8", Gr 5, Full Thd

1шт.

6

L114099

WASHER,13.64mm ID x 21.21mm OD x 1.59mm Thk

bolt

1шт.

7

A12864

BOLT

special, tube fitting

1шт.

8

51200242

SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk

fitting, outer

1шт.

9

A18531

FITTING

brake, Serial Range: cylinder-tube

1шт.

10

L114099

WASHER,13.64mm ID x 21.21mm OD x 1.59mm Thk

fitting inner

1шт.

11

L48102

TUBE,0.25" OD x 12.2, 11.7" L

front brakes master cylinder to tee (L59764 tube will be supplied when stock is exhausted

1шт.

11

L59764

TUBE,0.25" OD x 11.8, 11.7" L

front brakes, master cylinder to tee

1шт.

12

A12452

FITTING

TEE - front brake system

1шт.

13

L48283

TUBE,0.25" OD

TEE to R H wheel cylinder, front, Includes Ref: 15

1шт.

14

L48284

TUBE,0.25" OD

TEE to L H wheel cylinder, front, Includes Ref: 15

1шт.

15

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Clamp mounting

2шт.

16

R14668

CLAMP

tube support

2шт.

17

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

brake tube

2шт.

18

92-6

LOCK WASHER,3/8"

2шт.

19

25-106

NUT,3/8"-16, G5

hex. (3/8" - 16 NC)

2шт.

20

25-117

NUT,7/16"-20, G5

hex. (7/16" - 20 NF) Tee mounting

1шт.

21

92-7

LOCK WASHER,7/16"

1шт.

22

L40663

CYLINDER

master - brake, rear axle, See parts list Figure: 196

1шт.

23

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

(Master cylinder mounting)

2шт.

24

95-6

WASHER,3/8"

standard wrot

2шт.

25

92-6

LOCK WASHER,3/8"

2шт.

26

25-106

NUT,3/8"-16, G5

hex. (3/8" - 16 NC)

2шт.

27

114-412

BOLT,Hex, 1/2" - 20 x 5/8", Gr 5, Full Thd

1шт.

28

L114099

WASHER,13.64mm ID x 21.21mm OD x 1.59mm Thk

zinc plated bolt

1шт.

29

A12864

BOLT

special, tube fitting

1шт.

30

51200242

SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk

fitting, outer

1шт.

31

A18531

FITTING

brake, Serial Range: cylinder-tube

1шт.

32

L114099

WASHER,13.64mm ID x 21.21mm OD x 1.59mm Thk

fitting, inner

1шт.

33

L47785

HOSE

rear brakes, master cylinder to tee (25-1/2" long)

1шт.

34

A12452

FITTING

TEE - rear brake system

1шт.

35

L48284

TUBE,0.25" OD

TEE to R H wheel cylinder, rear, Includes Ref: 37

1шт.

36

L48283

TUBE,0.25" OD

TEE to L H wheel cylinder, rear, Includes Ref: 37

1шт.

37

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

38

R14668

CLAMP

tube support

2шт.

39

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

brake tube

2шт.

40

92-6

LOCK WASHER,3/8"

2шт.

41

25-106

NUT,3/8"-16, G5

hex (3/8" - 16 NC)

2шт.

42

25-117

NUT,7/16"-20, G5

hex. (7/16" - 20 NF) Tee mounting

1шт.

43

92-7

LOCK WASHER,7/16"

1шт.

44

D20302

CLAMP,7/8", Insul, 3/8" Bolt

hose

1шт.

45

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

46

92-6

LOCK WASHER,3/8"

1шт.

47

25-106

NUT,3/8"-16, G5

hex (3/8" - 1 6 NC)

1шт.
