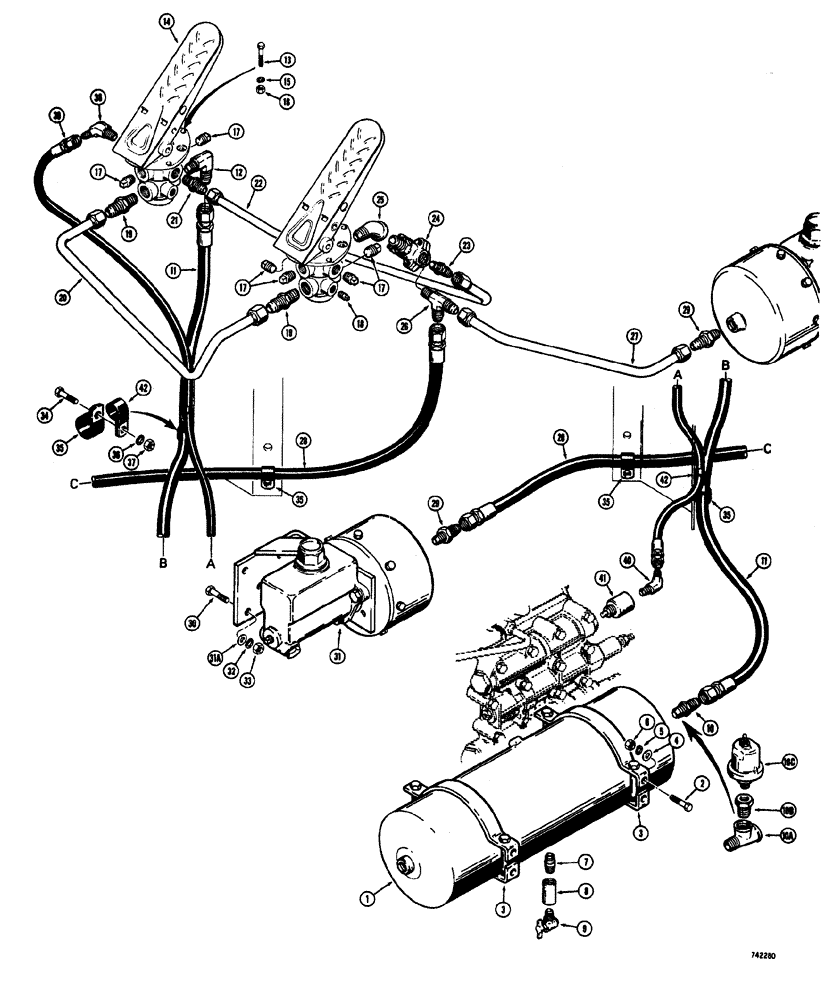

Запчасти Case W20 (184) - BRAKE SYSTEM RESERVOIR TO TREADLES, MASTER CYLINDERS AND CLUTCH CUTOUT (07) - BRAKES

1

L14823

TANK

RESERVOIR - air brake system

1шт.

2

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

3

L12632

BRACKET

mounting reservoir

2шт.

4

95-6

WASHER,3/8"

4шт.

5

92-6

LOCK WASHER,3/8"

4шт.

6

25-106

NUT,3/8"-16, G5

hex (3/8"- 16 NC)

4шт.

7

221-1130

PIPE,Nipple, 1/4" NPT x 7/8"

NIPPLE - pipe (1/4" NPT x 7/8" long)

1шт.

8

221-1327

X

COUPLING - pipe (l/4" NPT)

1шт.

0

217-101

VALVE

drain moisture

1шт.

10

128-456

CONNECTOR - male, straight

1шт.

10a

221-439

SPARE PART TEE - 1/2" x 1/2" x 1/4" NPT (L14814 Compressor)

1шт.

Used on units with S/N 9115403 and after equipped with an instrument panel cluster only.

1шт.

10a

221-693

TEE,1/2" NPT

TEE - 1/2" x 1/2" x (L57774 Compressor) 1/2" NPT

1шт.

Used on units with S/N 9115403 and after equipped with an instrument panel cluster only.

1шт.

10b

221-51

SUN VISOR,Hex, 1/4" x 1/8" NPT

BUSHING - reducing 1/4" x 1/8" NPT (L14814 Compressor)

1шт.

Used on units with S/N 9115403 and after equpped with an instrument panel cluster only.

1шт.

10b

221-54

BUSHING

reducing, 1/2" x 1/8" NPT (L57774 Compressor)

1шт.

Used on units with S/N 9115403 and after equipped with an instrument panel cluster only.

1шт.

10c

L57176

SENDER UNIT

air pressure

1шт.

Used on units with S/N 9115403 and after equipped with an instrument panel cluster only.

1шт.

11

L48030

HOSE

reservoir to L H brake treadle

1шт.

12

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

ELBOW - male, 90°

1шт.

13

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

6шт.

14

L44173

VALVE

AND TREADLE ASSEMBLY - brake control, See parts list Figure: 194

2шт.

15

92-5

LOCK WASHER,5/16"

6шт.

16

9635082

NUT,5/16" - 18, Gr 5

6шт.

17

221-4

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

pipe, square head (1/2" NPT)

6шт.

18

221-2

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF

pipe square head (1/4" NPT)

1шт.

19

218-445

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

male straight

2шт.

20

L48137

TUBE,0.625" OD

connecting, R H to L H treadle

1шт.

21

218-456

HYD CONNECTOR,3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

male straight

1шт.

22

L48187

TUBE,0.5" OD

treadles to master cylinders

1шт.

23

218-455

HYD CONNECTOR,3/4" - 16 Male JIC x 1/4" - 18 Male NPTF

male straight

1шт.

24

L48128

VALVE

double check air

1шт.

25

221-1404

ELBOW,45 Degree, 1/2"-14, NPT

ELBOW - street 45° (1/2" NPT)

1шт.

26

218-614

TEE,3/4"-16, 37 Degree x 3/8"-18, NPTF Run

Male

1шт.

27

L48113

TUBE,0.5" OD x 20.3, 11.6" L

tee to front master cylinder

1шт.

28

L48030

HOSE

tee to rear master cylindor

1шт.

29

218-444

HYD CONNECTOR,3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

male straight

2шт.

30

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

31

L40663

CYLINDER

master - brake front and rear (Parts list Figure: 196)

2шт.

31a

95-6

WASHER,3/8"

4шт.

32

92-6

LOCK WASHER,3/8"

4шт.

33

25-106

NUT,3/8"-16, G5

hex. (3/8" - 16 NC)

4шт.

34

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

35

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

hose to frame brackets

4шт.

36

92-6

LOCK WASHER,3/8"

4шт.

37

25-106

NUT,3/8"-16, G5

hex (3/8" - 16 NC)

4шт.

38

218-1096

ELBOW,45 Degree, 9/16-18" 37 Degree x 1/2"-14, NPTF

ELBOW - male, 45°

1шт.

39

L48061

HOSE

treadle to clutch cutout cylinder

1шт.

40

218-533

ELBOW,45 Degree, 9/16-18" 37 Degree x 1/4"-18, NPTF

Male

1шт.

41

L12627

CYLINDER

clutch cutout

1шт.

49

49838

CLAMP

hose

2шт.
