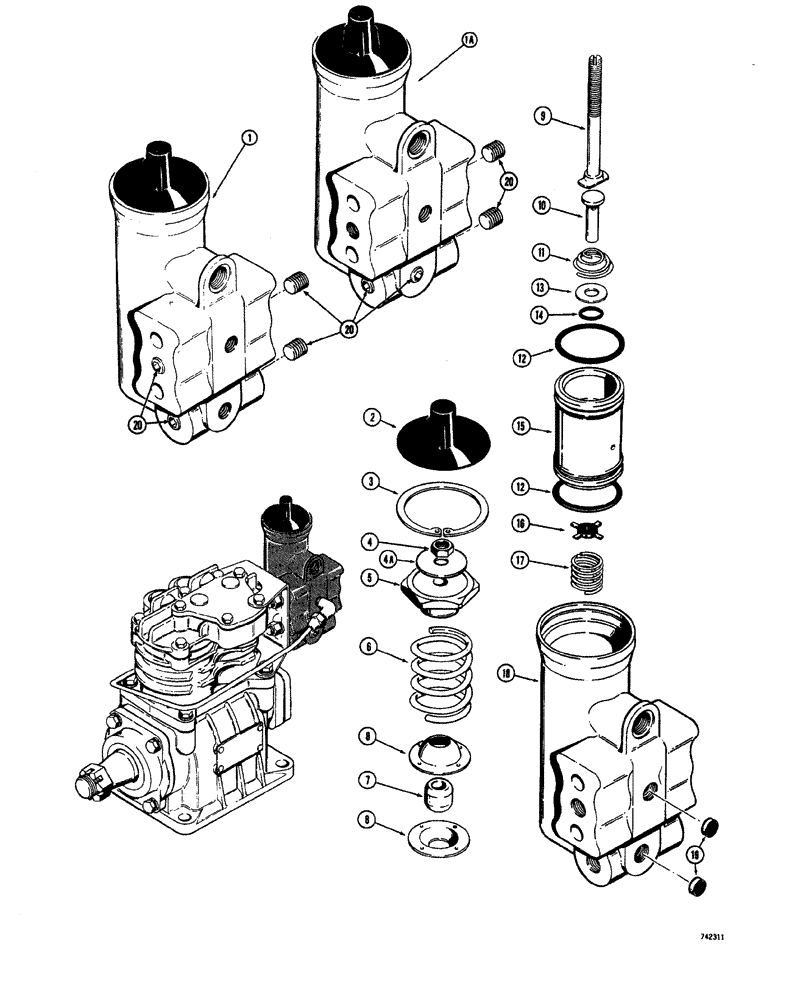

Запчасти Case W20 (182) - AIR COMPRESSOR D66474 AND L32563 GOVERNORS (07) - BRAKES

1

L32653

VALVE

GOVERNOR - air compressor (Used on L14814 Air Comoressor), Includes Ref: 2-20

1шт.

1a

O 66474

GOVERNOR - air compressor (Used on L57774 Air Compressor), Includes Ref: 2-20

1шт.

2

NSS

NOT SOLD SEPARAT

COVER - top, governor

1шт.

Included in L31808 Governor repair kit, used for L32653 and D66474 Governors.

1шт.

3

T28550

SNAP RING,1.50", Int, #150

1.50", Int, #150

1шт.

L31533

WASHER

ADJUSTING ASSEMBLY - governor, Includes Ref: 4-9

1шт.

4

25-104

NUT,1/4"-20, G5

1шт.

4a

NSS

NOT SOLD SEPARAT

WASHER - special

1шт.

5

NSS

NOT SOLD SEPARAT

SEAT - spring, upper

1шт.

6

NSS

NOT SOLD SEPARAT

SPRING - tension

1шт.

7

NSS

NOT SOLD SEPARAT

GUIDE - adjusting spring

1шт.

8

NSS

NOT SOLD SEPARAT

SEAT - spring, lower

2шт.

9

NSS

NOT SOLD SEPARAT

SCREW - special, adjusting

1шт.

10

L31532

STEM

exhaust

1шт.

11

L31531

VALVE SPRING

stem, exhaust

1шт.

12

L31499

O-RING,1" ID x 40546" OD x 3"

piston

2шт.

Included in L31808 Governor repair kit, used for L32653 and D66474 Governors.

1шт.

L31528

PLUNGER

ASSEMBLY - governor, Includes Ref: 13-15

1шт.

13

L31541

WASHER

special

1шт.

14

L31540

O-RING,0.07" Thk x 0.208" ID, -9, Cl 5, 75 Duro

piston

1шт.

Included in L31808 Governor repair kit, used for L32653 and D66474 Governors.

1шт.

15

NSS

NOT SOLD SEPARAT

PISTON, governor

1шт.

16

L31529

LOCK VALVE

inlet and exhaust

1шт.

Included in L31808 Governor repair kit, used for L32653 and D66474 Governors.

1шт.

17

L31530

SPRING

valve, inlet and exhaust

1шт.

Included in L31808 Governor repair kit, used for L32653 and D66474 Governors.

1шт.

18

L31527

BODY

governor, Includes Ref: 19

1шт.

19

NSS

NOT SOLD SEPARAT

FILTER - inlet and outlet ports

2шт.

20

221-1849

PLUG

1/8" NPT

4шт.
