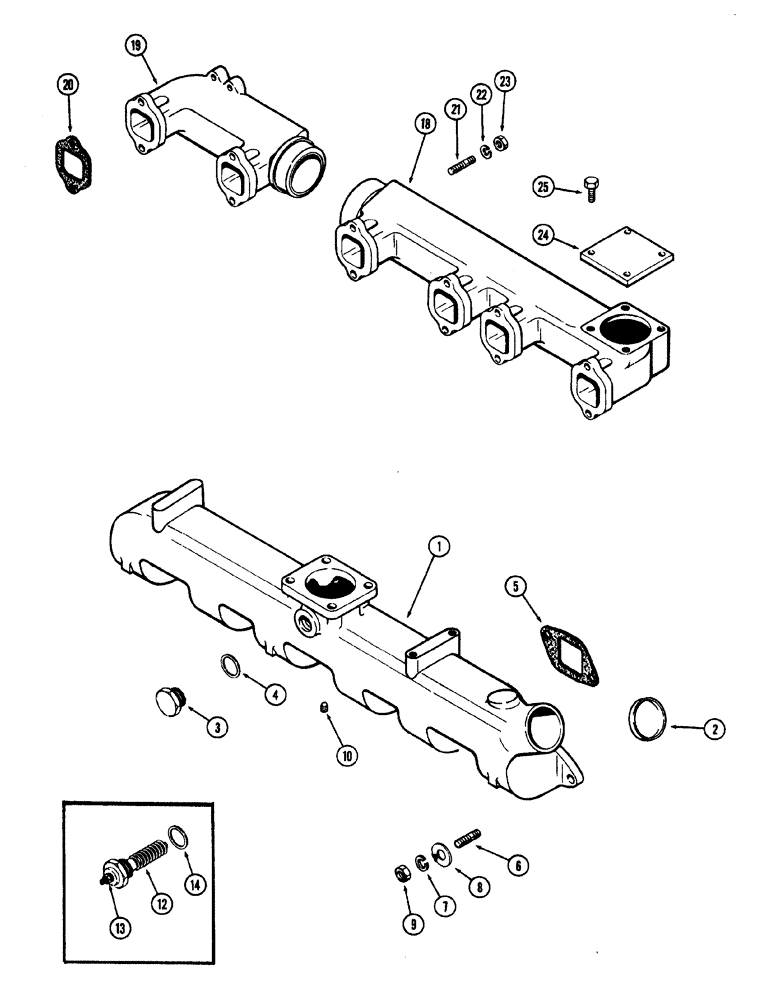

Запчасти Case W20 (010) - (401BD) DIESEL ENGINE MANIFOLDS (02) - ENGINE

1

A62845

MANIFOLD

ASSY intake, Includes Ref: 2

1шт.

2

41-1042

PLUG,Cup, 2 5/8"

cup type, 2-5/8", intake manifold

1шт.

3

A20917

PLUG

heater hole, intake manifold

1шт.

4

A20916

MANIFOLD GASKET

plug, intake manifold

1шт.

5

A58662

MANIFOLD GASKET

intake manifold

6шт.

6

A59077

STUD

intake manifold, 3/8" NC x 1-3/4"

12шт.

7

92-6

LOCK WASHER,3/8"

intake manifold

12шт.

8

195-25

WASHER,3/8"

7/16 x 13/16 x 1/16", intake manifold

12шт.

9

25-106

NUT,3/8"-16, G5

hex, 3/8" NC, intake manifold

12шт.

10

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

square head, 1/8" PT, intake manifold

1шт.

12

A66333

HEATER

ASSY 24 volt, Replaces: A34278, intake manifold

1шт.

13

129-503

NUT,1/4"-20, Brass

Intake manifold

1шт.

14

A20916

MANIFOLD GASKET

manifold heater, intake

1шт.

18

A58663

MANIFOLD

exhaust, rear

1шт.

19

A58664

MANIFOLD

exhaust, front

1шт.

20

A58666

MANIFOLD GASKET

exhaust manifold

6шт.

21

A59077

STUD

exhaust manifold, 3/8" NC x 1-3/4"

12шт.

22

92-6

LOCK WASHER,3/8"

exhaust manifold

12шт.

23

131-903

NUT,3/8"-16

Seez-Pruf, 3/8" NC, exhaust manifold

12шт.

24

A58665

COVER

exhaust manifold

1шт.

25

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Cover, exhaust manifold

4шт.
