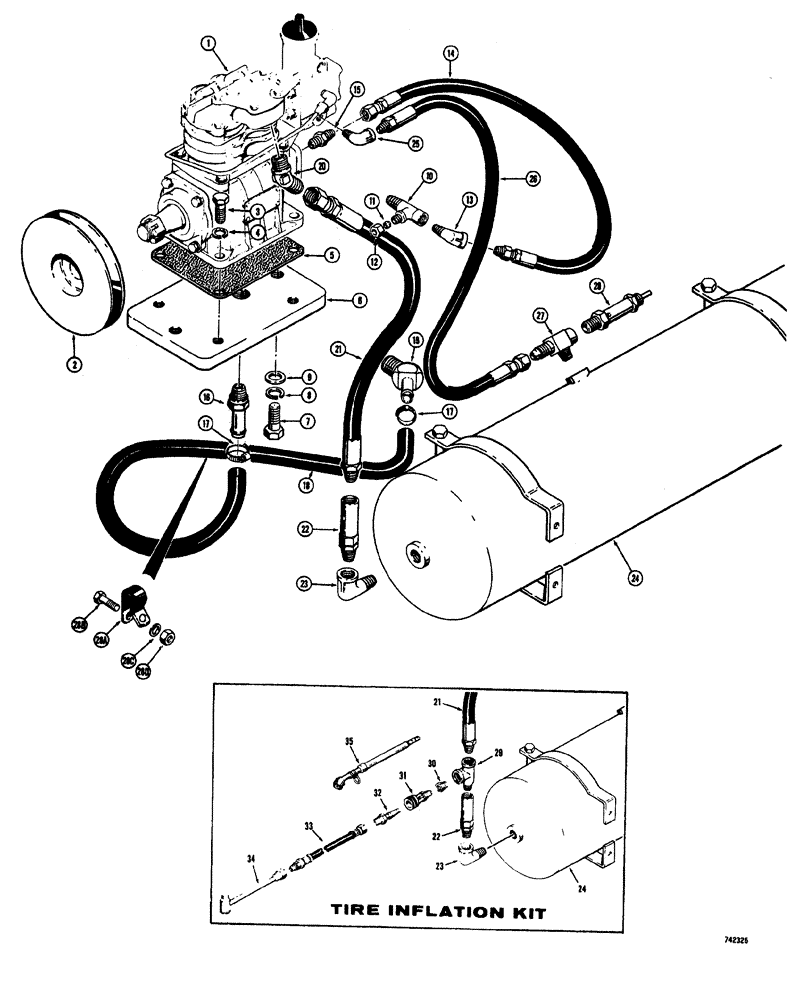

Запчасти Case W20 (176) - BRAKE SYSTEM L14814 AIR COMPRESSOR AND RELATED PARTS (07) - BRAKES

1

L14814

COMPRESSOR

air brake, See parts list Figures: 178, 180

1шт.

2

L14809

PULLEY

drive, compressor (When stock is exhausted, ord< L54176 pulley for service)

1шт.

2

L54176

PULLEY

drive, compressor

1шт.

3

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Compressor to plate

4шт.

4

92-6

LOCK WASHER,3/8"

4шт.

5

L10354

GASKET

, Serial Range: compressor-plate

1шт.

6

L47864

PLATE ASSY.

mounting compressor

1шт.

7

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

(Mounting plate to front engine mount)

2шт.

8

92-8

LOCK WASHER,1/2"

2шт.

9

95-8

WASHER,1/2"

Flat

2шт.

222-82

TEE,1/2"-12 Male x 1/8 NPT Fem Run x 1/8 NPT Br

TEE ASSEMBLY - flex tube, 1/4" tube, Includes Ref: 10-12

1шт.

10

NSS

NOT SOLD SEPARAT

TEE - flex tube

1шт.

11

222-102

SLEEVE,1/4" Tube

1шт.

12

87017024

TUBE NUT,1/2"-24

flex tube

1шт.

13

221-401

ELBOW,45 Degree, 1/8"-27, NPT

I LBOW - street, 45° (1/8" NPT)

1шт.

14

L40303

HOSE

lubrication, compressor

1шт.

15

218-442

HYD CONNECTOR,1/2" - 20 Male JIC x 1/8" - 27 Male NPTF

male, straight

1шт.

16

217-152

FITTING,1/2" Hose Barb x 3/8" Male NPTF

1шт.

17

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

hose

2шт.

18

L41213

HOSE

ubrication, compressor return

1шт.

19

2l7-186

ELBOW - 45°, male (Hose stem type)

1шт.

20

218-534

ELBOW,45 Degree, 3/4"-14, 37 Degree x 3/8"-18, NPTF

ELBOW - 45°, male (Threaded type)

1шт.

21

L47885

FLEXIBLE HOSE

compressor to reservoir (20-1/2" long) When stock is exhausted, order L52822 hose for service

1шт.

21

L52822

HOSE

compressor to reservoir (20-1/2" long)

1шт.

22

L12586

VALVE

check, air pressure

1шт.

23

221-1414

ELBOW,90 Degree, 1/2"-14, NPT

ELBOW - street, 90° (1/2" NPT)

1шт.

24

L14823

TANK

RESERVOIR - air, brake system

1шт.

25

221-1411

ELBOW,90 Degree, 1/8"-27, NPT

ELBOW - street, 90° (1/8" NPT)

1шт.

26

L47886

HOSE

, Serial Range: governor-reservoir

1шт.

27

L48131

FITTING

TEE - air reservoir

1шт.

28

L48992

VALVE,1/4"

ASSEMBLY - safety

1шт.

28a

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

hose

1шт.

28b

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

28c

92-6

LOCK WASHER,3/8"

1шт.

28d

25-106

NUT,3/8"-16, G5

hex. (3/8" - 1 6 NC)

1шт.

29

217-1064

TEE,1/2" - 14 Female x 1/2" - 14 Male Run

TEE - pipe

1шт.

30

217-44

REDUCER,1/2" - 14 NPT x 3/8" - 18 NPT

Bushing

1шт.

31

L13978

VALVE

check - air

1шт.

32

L13979

COUPLING

adapter

1шт.

33

L15274

HOSE

inflation

1шт.

34

L13983

FAN

CHUCK - air

1шт.

35

L13977

GAUGE ASSY.

tire pressure

1шт.
