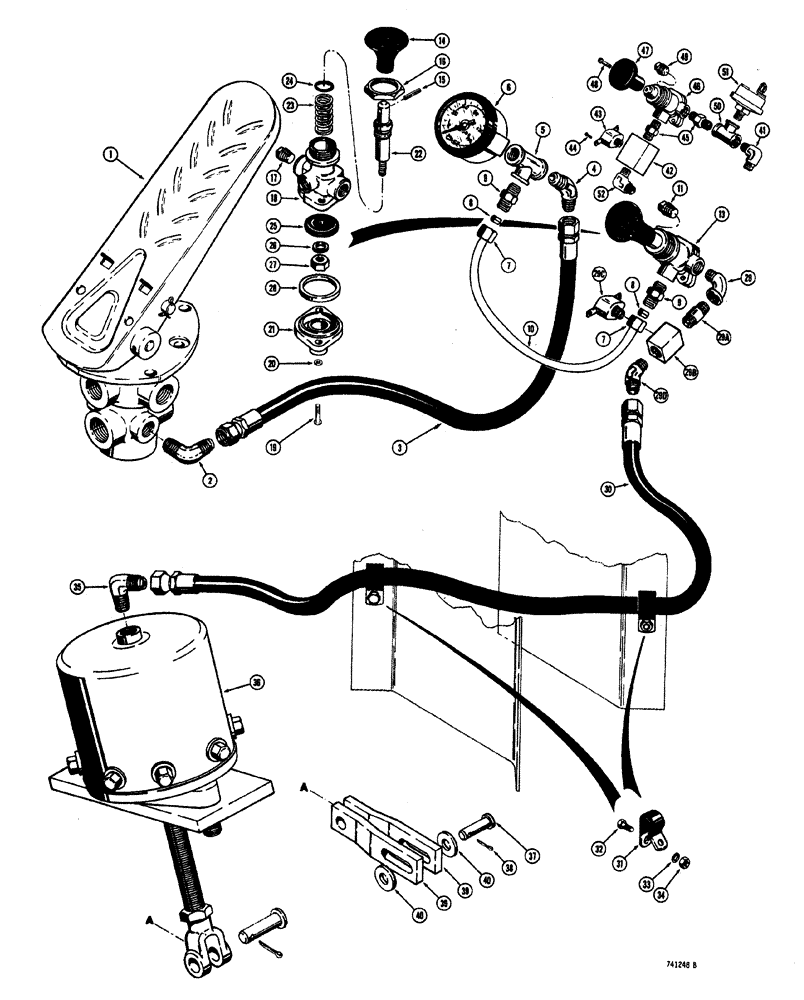

Запчасти Case W20 (174) - BRAKE SYSTEM EMERGENCY BRAKE VALVE TO SAFETY CHAMBER (CONTINUATION) (07) - BRAKES

36

L48127

CHAMBER

ASSEMBLY - safety, See parts list Figure: 198

1шт.

37

141-5

CLEVIS PIN,7/16" x 1.190"

clevis, 7/16" dia

1шт.

38

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

39

L48108

LINK

safety, Serial Range: chamber-transmission

2шт.

40

95-7

WASHER,7/16"

standard wrot () 7/16"

2шт.

41

2l8-481

ELBOW - reducing (1/4" tube to 1/8" pipe), following parts used on tractor serial no. 9115403 and after

1шт.

42

L13273

UNION TEE

special, emergency brake line, following parts used on tractor serial no. 9115403 and after

1шт.

43

L48480

SWITCH

pressure, following parts used on tractor serial no. 9115403 and after

1шт.

44

173-73

SCREW,Sl Rnd Hd, #8 - 32 x 1/4"

#8 - 32 NC x 1/4", following parts used on tractor serial no. 9115403 and after

2шт.

45

217-1071

HYD CONNECTOR,1/4" - 18NPTF x 1/8" - 27 NPTF

BUSHING - reducing (1/4" pipe to 1/8" pipe), following parts used on tractor serial no. 9115403 and after

2шт.

L52178

VALVE

ASSEMBLY - emergency brake, following parts used on tractor serial no. 9115403 and after, Includes Ref: 46-48

1шт.

46

NSS

NOT SOLD SEPARAT

VALVE - emergency brake, following parts used on tractor serial no. 9115403 and after

1шт.

47

L35267

KNOB

emergency brake valve, following parts used on tractor serial no. 9115403 and after

1шт.

48

169-146

SCREW,Phil Fil Hd, #8 - 32 x 3/8"

machine, Phillips head #8 - 32 NC x 3/8", following parts used on tractor serial no. 9115403 and after

1шт.

49

221-1

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

pipe (1/8 NPT), following parts used on tractor serial no. 9115403 and after

1шт.

50

221-421

TEE,1/8" NPT

TEE - street (), following parts used on tractor serial no. 9115403 and after 1/8" NPT

1шт.

51

L57937

SWITCH

air parking brake, following parts used on tractor serial no. 9115403 and after

1шт.

52

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

reducing (1/4" tube to 1/8" pipe), following parts used on tractor serial no. 9115403 and after

1шт.
