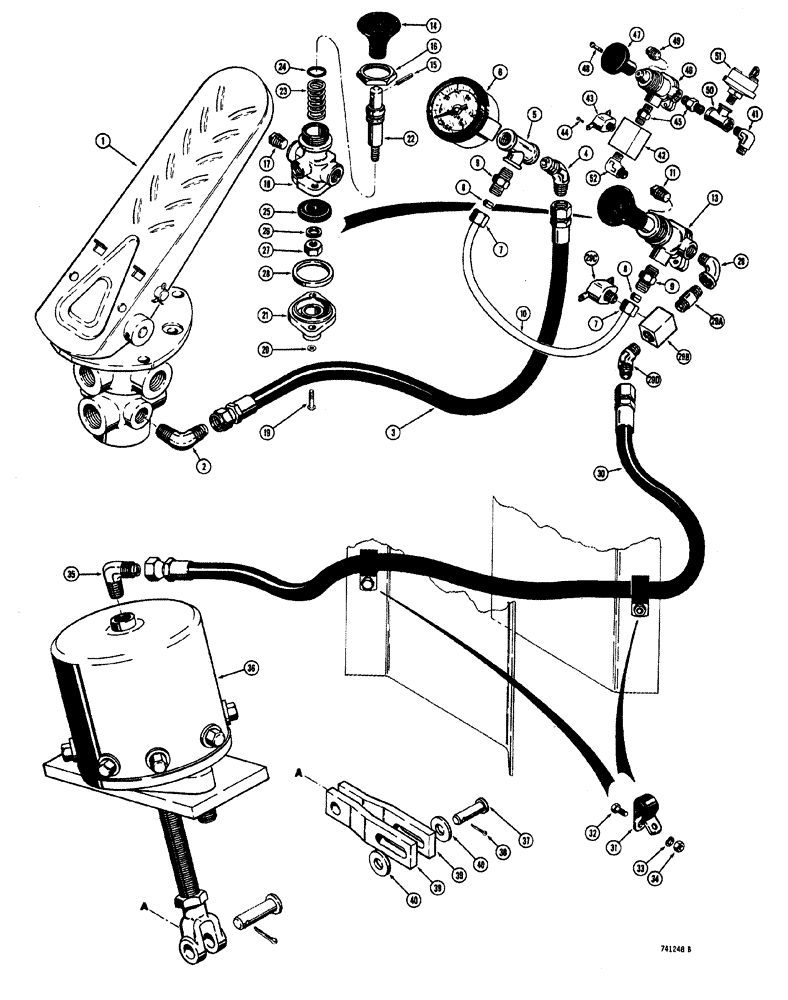

Запчасти Case W20 (172) - BRAKE SYSTEM EMERGENCY BRAKE VALVE TO SAFETY CHAMBER (07) - BRAKES

1

REF

INSTRUCTION

TREADLE ASSEMBLY - brake R.H., See parts list Figure: 194

1шт.

2

218-491

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/4" - 18 Male NPTF

ELBOW - 90 , male

1шт.

3

L48029

HOSE

to control valve (40" long)

1шт.

4

2l8-481

ELBOW - 90°, male

1шт.

5

221-1421

TEE,Pipe, 1/8" NPT

pipe, branch (1/8" NPT)

1шт.

6

L12141

ELECTRICAL GAUGE

air pressure

1шт.

222-5002

HYD CONNECTOR,1/2"-20 x 1/8" NPT, Hi-seal

straight, male (Tube), Includes Ref: 7-9

2шт.

7

222-5060

NUT,1/2"-20

1/4" tube

1шт.

8

222-5047

SLEEVE,1/4" Tube

1/4" Tube

1шт.

9

NSS

NOT SOLD SEPARAT

CONNECTOR - 1/4" tube

1шт.

10

L51268

TUBE,0.25" OD x 4.5" L

tee to brake valve

1шт.

11

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

pipe, square head (1/8" NPT)

1шт.

12

RESERVED

1шт.

13

L47619

VALVE

ASSEMBLY - emergency brake, Includes Ref: 14-28

1шт.

14

L33695

KNOB

BUTTON -, Serial Range: pull-park

1шт.

15

138-2057

PIN,5/32" x 5/8", Coiled

1шт.

16

L33696

SPARE PART special

1шт.

17

221-661

PLUG,Hex Hd, 1/8"-27

pipe hex. hd. (1/8" NPT)

1шт.

18

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

19

173-265

SCREW,Phil Rnd Hd, 1/4" - 20 x 5/8"

SPARE PART RHMS - 1/4" - 20 NC x 5/8"

2шт.

20

192-109

LOCK WASHER,1/4"

SAE light () 1/4"

2шт.

21

L33700

COVER

valve

1шт.

22

L33699

SPARE PART valve

1шт.

23

L33698

SPRING

valve

1шт.

L33701

KIT

repair, valve, Includes Ref: 24-28

1шт.

24

NSS

NOT SOLD SEPARAT

SEAL - TtO ring, plunger

1шт.

25

NSS

NOT SOLD SEPARAT

VALVE - inlet & exhaust

1шт.

26

NSS

NOT SOLD SEPARAT

WASHER - special

1шт.

27

NSS

NOT SOLD SEPARAT

NUT - special

1шт.

28

NSS

NOT SOLD SEPARAT

RING - seal, cap

1шт.

29

221-41l

ELBOW - street 90°

1шт.

29a

221-101

PIPE,Nipple, 1/8" NPT x 3/4"

pipe

1шт.

29b

L13273

UNION TEE

special, emergency brake line

1шт.

29c

L48480

SWITCH

pressure

1шт.

29d

218-531

ELBOW,45 Degree, 7/16-20" 37 Degree x 1/8"-27, NPTF

ELBOW - 45°, male

1шт.

30

L48120

HOSE

to safety chamber (82" long)

1шт.

31

49858

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

hose

2шт.

32

13- 616

HHCS - 3/8" - 16 NC x 1"

2шт.

33

92-6

LOCK WASHER,3/8"

2шт.

34

25-106

NUT,3/8"-16, G5

hex (3/8" - 16 NC)

1шт.

35

218-491

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/4" - 18 Male NPTF

E LBOW - 90 , male

1шт.
