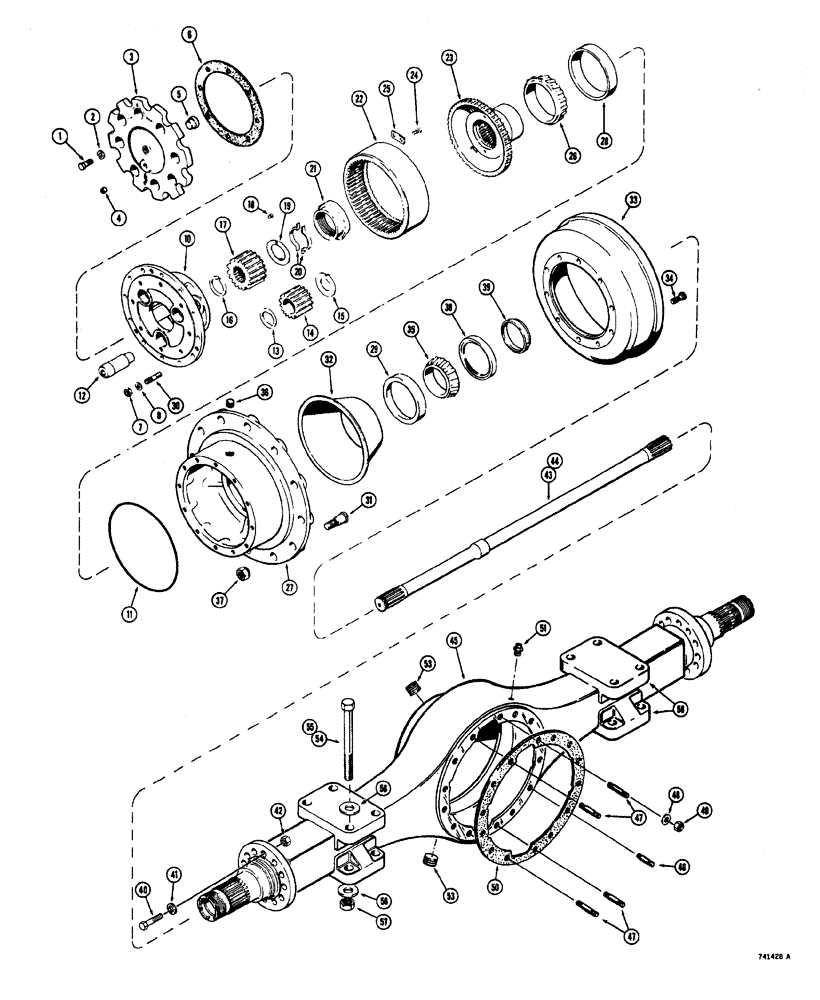

Запчасти Case W20 (166) - PR120 SERIES AXLE HOUSING AND PLANETARY TRAC. S/N9115302 & AFT. EXCE[T S/N 9115334 & 9115335 (06) - POWER TRAIN

L58844

SPARE PART ASSEMBLY - complete, front and rear (PR120-HX-1), Includes Ref: 1-53

2шт.

1

26-718

BOLT,Hex, 7/16" - 14 x 1-1/8", Gr 8

HHCS - 7/16 - 14 NC x 1-1/8

16шт.

2

D47367

WASHER

special lock (7/16")

16шт.

3

L33952

COVER

planetary spider (Used with 3/4" drain plug)

2шт.

4

221-25

PLUG,Sq Soc, 3/4"-14 NPTF

pipe, oil level (3/4" NPT)

2шт.

5

A12980

BUTTON

thrust, drive shaft (Included in L33952 cover)

2шт.

6

A12910

GASKET,0.4mm Thk

, Serial Range: cover-spider

2шт.

7

129-545

NUT,1/2"-20, G8

24шт.

8

92-8

LOCK WASHER,1/2"

24шт.

9

RESERVED

1шт.

10

A12909

U-JOINT SPIDER

planetary

2шт.

11

A18218

O-RING,10.125" ID x 10.312" OD x 0.103"

spider to hub

2шт.

12

A40146

SHAFT

planetary pinion

6шт.

13

A12904

WASHER

pinion thrust, outer

6шт.

14

A12901

GEAR

PINION - planetary

6шт.

15

A40145

WASHER

pinion thrust inner

6шт.

16

A12907

O-RING,1.74" ID x 0.1205"

retainer, sun gear to shaft

2шт.

17

A12905

GEAR

sun

2шт.

A13103

WASHER

AND PIN ASSEMBLY - thrust, Includes Ref: 18, 19

2шт.

18

A13137

AXLE PIN

thrust washer

2шт.

19

NSS

NOT SOLD SEPARAT

WASHER - thrust, sun gear

1шт.

20

A12953

RETAINER

LOCK - bearing nut

4шт.

21

A13104

BEARING LOCK NUT

hub bearing

2шт.

22

A12911

GEAR

ring, pinion

2шт.

23

L33735

HUB

ring gear

2шт.

24

26-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

5/16" - 18 NC x 3/4" (Grade 8)

16шт.

25

A12914

LOCK ASSY

PLATE

8шт.

26

L33737

BEARING ASSY,110 mm ID x 119 mm OD x 35 mm

hub bearing, outer

2шт.

NSS

NOT SOLD SEPARAT

HUB AND DRUM ASSEMBLY - axle, Includes Ref: 27-34

2шт.

T36112

HUB AND CUP ASSEMBLY - axle, Includes Ref: 27-31

1шт.

27

NSS

NOT SOLD SEPARAT

HUB - drive wheel

1шт.

28

L33732

BEARING CUP,149 mm ID x 159 mm OD x 26.5 mm

bearing outer

1шт.

29

T33731

CUP - bearing inner

1шт.

30

L30951

STUD

, Serial Range: spider-hub

12шт.

31

A13112

STUD

drive, Serial Range: wheel-hub

12шт.

32

L33728

BRACKET

slinger - oil

1шт.

33

L33894

DRUM

brake

1шт.

34

26-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8

HHCS -brake drum to wheel hub (5/8" - 11 NC x 1-1/2" (Grade 8)

10шт.

35

L33736

ROLLER BEARING

CONE - hub bearing, inner

2шт.

36

221-678

DRAIN PLUG,Sq Soc, 3/4" NPT

pipe magnetic (3/4 NPT)

2шт.

37

A12522

WHEEL NUT

drive wheel bolt (Not included in axle assembly)

24шт.

38

D47371

SEAL

oil and retainer - hub bearing

2шт.

39

D51467

SLEEVE

oil seal

2шт.

40

28-830

BOLT,Hex, 1/2" - 20 x 1-7/8", Gr 8

HHCS - 1/2"" - 20 NF x 1-3/4

24шт.

41

L33864

WASHER

SPARE PART special

24шт.

42

232-4618

LOCK NUT,1/2"-20, GC

hex lock (1/2" - 20 NF)

24шт.

43

L32497

SHAFT

axle (42.88" long)

1шт.

44

L36110

HALF SHAFT

axle (40.62" long)

1шт.

L36109

HOUSING

ASSEMBLY - rigid axle, Includes Ref: 45-47

1шт.

45

NSS

NOT SOLD SEPARAT

HOUSING - axle and differential

1шт.

46

L30951

STUD

differential carrier to housing (2-1/2" long)

10шт.

47

A13130

STUD

differential carrier to housing (2-5/8" long)

4шт.

48

D47366

WASHER

special flat (1/2")

14шт.

49

232-4618

LOCK NUT,1/2"-20, GC

hex (1/2" - 20 NF) Self-locking

14шт.

50

L36108

GASKET

differential, Serial Range: earner-housing

1шт.

51

A12928

BREATHER

oil, differential

1шт.

52

A19909

SPRING SEAT

SPARE PART lower spring (Not illustrated)

2шт.

53

221-25

PLUG,Sq Soc, 3/4"-14 NPTF

pipe, dram and fill (3/4" NPT)

2шт.

54

116-904

BOLT,Hex, 1" - 14 x 10", Gr 8

(Front axle mounting)

8шт.

55

L57180

BOLT

special (Rear axle mounting)

8шт.

56

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

special, Serial Range: axle-frame

32шт.

57

131-188

LOCK NUT,1"-14, GB

hex, lock (1" - 14 NF)

16шт.

58

A19909

SPRING SEAT

SPARE PART PAD - axle

4шт.
