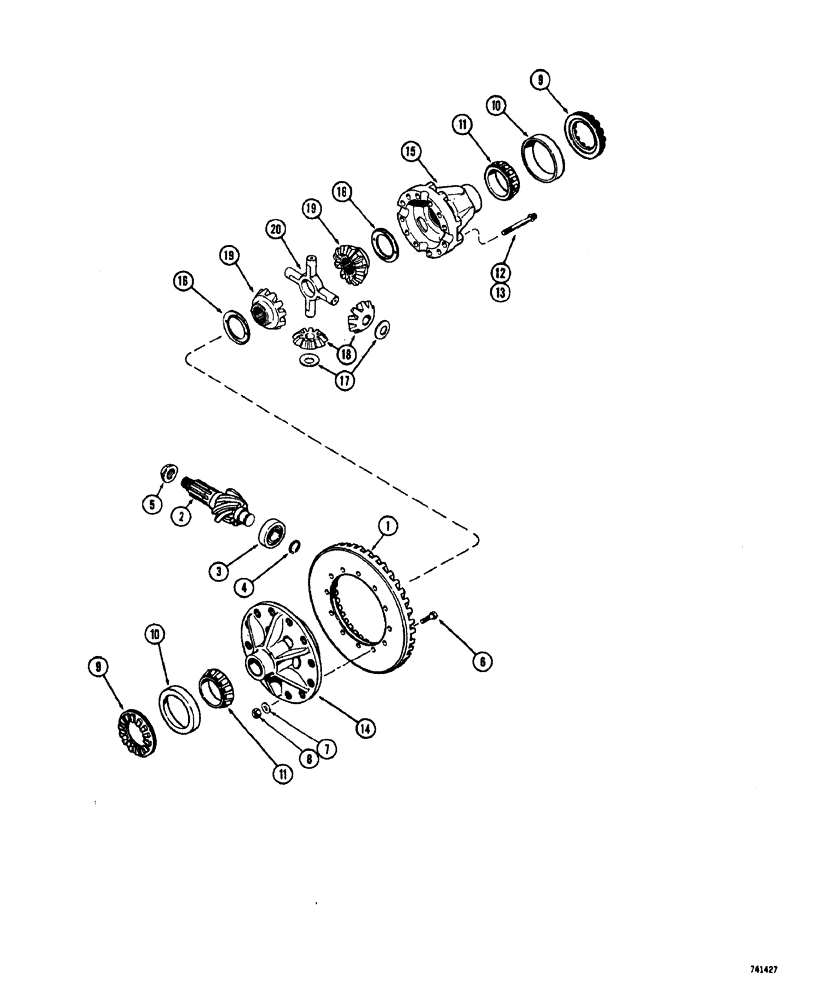

Запчасти Case W20 (164) - L36107 DIFFERENTIAL ASSEMBLY ROCKWELL STANDARD A46-3200-Z-780/5.29 (06) - POWER TRAIN

L36107

SPARE PART Rockwell Standard, A46-3200-Z-780/5.29 (Included in L58844 - Rockwell Standard PR-120-HX-1/19.03-1 axle assembly), Includes Ref: 1-20

1шт.

L36018

RING GEAR

BEVEL GEAR ASSEMBLY - repair kit, Includes Ref: 1-8

1шт.

1

NSS

NOT SOLD SEPARAT

GEAR - ring

1шт.

2

NSS

NOT SOLD SEPARAT

GEAR - pinion

1шт.

3

L30387

ROLLER BEARING

spigot

1шт.

4

A15442

LOCK

RING

1шт.

5

L35091

NUT

flange retaining

1шт.

6

L36919

BOLT - bevel gear mounting

12шт.

7

D47366

WASHER

special

12шт.

8

131-1138

LOCK NUT,1/2"-13, GC

hex , lock (1/2" - 13 NC)

12шт.

9

A12942

GASKET

RING - adjusting, differential bearing

2шт.

10

A12946

BEARING CUP

bearing, differential

2шт.

11

A12944

ROLLER BEARING,2.8125" ID x 1.1875"

CONE - bearing, differential

2шт.

L30670

DIFFERENTIAL

CASE AND GEAR ASSEMBLY - axle, Includes Ref: 12-20

1шт.

12

L34063

BOLT

special, differential case (Long)

8шт.

13

L34062

BOLT

special, differential case (Short)

4шт.

14

NSS

NOT SOLD SEPARAT

CASE - differential, flange half

1шт.

15

NSS

NOT SOLD SEPARAT

CASE - differential, plain half

1шт.

16

A12979

WASHER

thrust, side gear

2шт.

17

A12976

WASHER

thrust pinion

4шт.

18

A12976

WASHER

GEAR - pinion

4шт.

19

A12978

GEAR

side

2шт.

20

A12974

U-JOINT SPIDER

differential

1шт.
