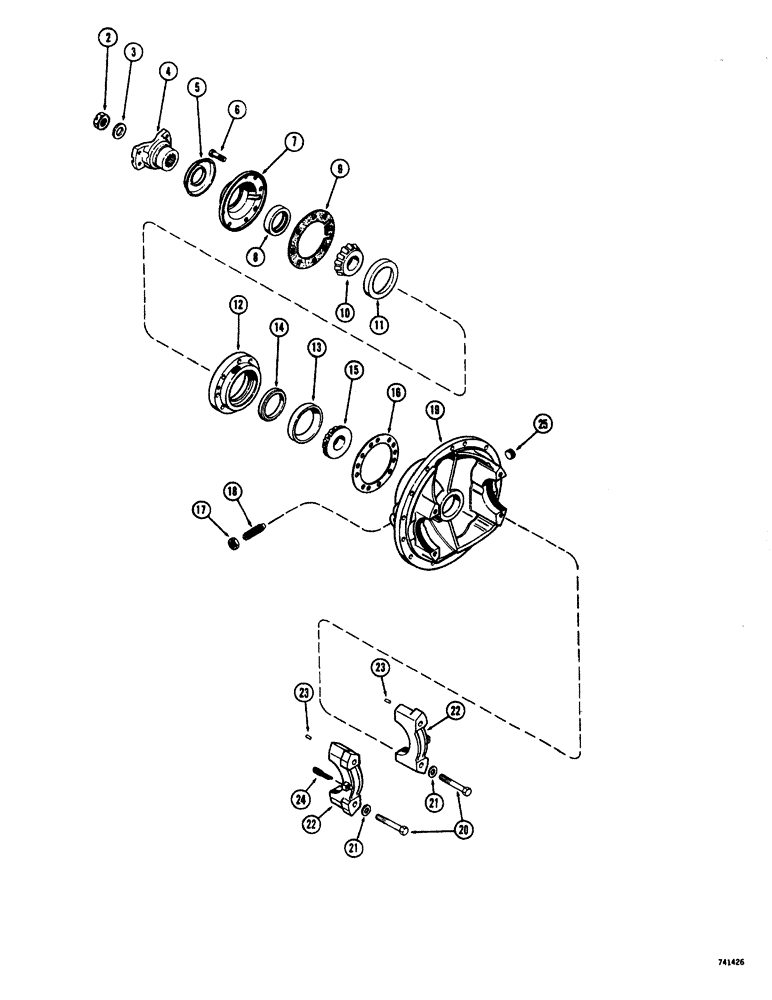

Запчасти Case W20 (162) - L36107 DIFFERENTIAL ASSEMBLY ROCKWELL STANDARD A46-3200-Z-780/5.29 (06) - POWER TRAIN

L36107

SPARE PART Rockwell Standard A46-3200-Z-780/5.29 (Included in L58844 Rockwell Standard PR-120-HX-1/19.03-1 axle assembly), Includes Ref: 1-25

1шт.

1

RESERVED

1шт.

2

L35091

NUT

hex., self -locking (Yoke mounting)

1шт.

3

A13124

WASHER

yoke retaining

1шт.

L32491

YOKE

UNIVERSAL JOINT YOKE ASSEMBLY - rear axle drive shaft, Includes Ref: 4, 5

1шт.

4

NSS

NOT SOLD SEPARAT

YOKE - rear axle drive shaft

1шт.

5

A12952

CYLINDER END CAP

slinger - oil

1шт.

6

26-728

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 8

HHCS - 7/16"" - 14 NC x 1-3/4""

8шт.

A12954

COVER ASSY

ASSEMBLY - pinion shaft, Includes Ref: 7, 8

1шт.

7

NSS

NOT SOLD SEPARAT

COVER - pinion shaft

1шт.

8

L34024

SEAL,60.33mm ID x 85.27mm OD x 11.53mm Thk

oil

1шт.

9

A12955

GASKET

, Serial Range: cover-cage

1шт.

10

L35493

CONE

bearing, cage (Outer)

1шт.

A12959

CAGE

ASSEMBLY - pinion shaft, Includes Ref; 10-13

1шт.

11

NSS

NOT SOLD SEPARAT

A CUP - bearing, case (Outer)

1шт.

12

NSS

NOT SOLD SEPARAT

CAGE - pinion shaft

1шт.

13

NSS

NOT SOLD SEPARAT

CUP - bearing, cage (Inner)

1шт.

14

A12960

SPACER

bearing (219" thick)

1шт.

14

A12961

SPACER

bearing (220" thick)

1шт.

14

A12962

SPACER

bearing (221" thick)

1шт.

14

A12963

SPACER

bearing (222" thick)

1шт.

14

A12964

SPACER

bearing (223" thick)

1шт.

14

A12965

SHIM,.224" Thk

SPACER, Bearing

1шт.

14

A12966

SPACER

bearing (230" thick)

1шт.

14

A12967

SPACER

bearing (236" thick)

1шт.

14

A12968

SPACER

bearing (242" thick)

1шт.

14

A12969

SPACER

bearing (248" thick)

1шт.

14

A12970

SPACER

bearing (254" thick)

1шт.

15

L35488

ROLLER BEARING,47.638 mm ID x 30.365 mm

CONE - bearing, cage (Inner)

1шт.

16

A12958

SHIM,.003" Thk

Cage

1шт.

16

A12956

SHIM,.005" Thk

Cage

1шт.

16

A12957

SHIM,.010" Thk

Cage

1шт.

17

A13121

X

NUT - adjusting screw locking

1шт.

18

L30949

SCREW

adjusting, drive gear

1шт.

L36U3

CARRIER AND CAP ASSEMBLY - differential, Incldudes Ref: 19-25

1шт.

L30220

CARRIER

AND CAP - differential, Includes Ref: 19-24

1шт.

19

NSS

NOT SOLD SEPARAT

CARRIER - differential

1шт.

20

L34037

BOLT

special

4шт.

21

L30737

WASHER

bolt

4шт.

22

NSS

NOT SOLD SEPARAT

CAP ASSEMBLY - differential

2шт.

23

A15443

DOWEL

cap

2шт.

24

A18196

HARDWARE

PIN - lock, bearing adjusting nut (When lock pin is removed for repairs, replace with new pin)

2шт.

25

221-835

PLUG

filler

1шт.
