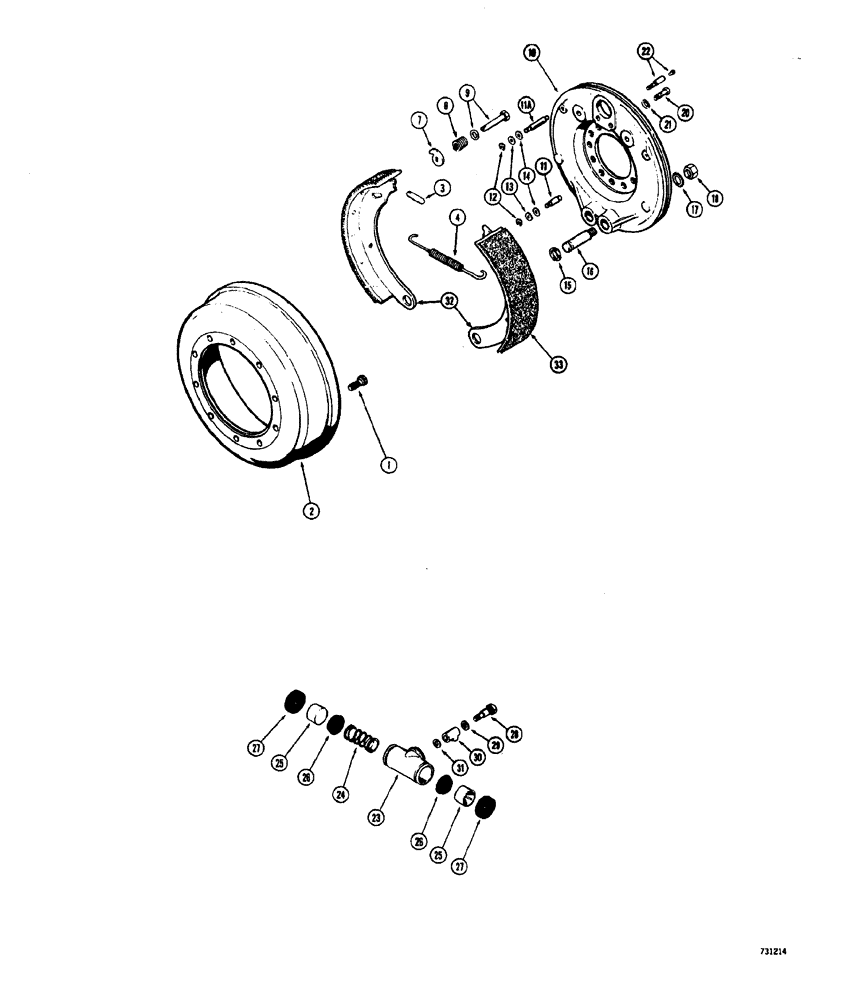

Запчасти Case W20 (160) - AXLE BRAKES (ALL AXLES) (06) - POWER TRAIN

1

26-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8

brake drum to wheel hub

20шт.

2

L33729

DRUM/Retired DRUM - brake (When stock is exhausted, order L33894 drum for service)

2шт.

2

L33894

DRUM

brake

2шт.

L33863

BRAKE

ASSEMBLY - axle, Includes Ref: 3-34

2шт.

3

A12983

ROD

push, brake cylinder

2шт.

4

A13002

SPRING

shoe return

1шт.

5

RESERVED

1шт.

6

RESERVED

1шт.

L35951

LARGE PLATE

PLATE, LARGE ASSEMBLY - backing, brake, Includes Ref: 7-11A

1шт.

7

A13201

SHOE

CAM - brake adjusting

2шт.

8

A13023

SPRING

ajusting cam

2шт.

9

A12997

CAPTIVE WASHER SCREW

AND WASHER - adjusting cam

2шт.

10

NSS

NOT SOLD SEPARAT

PLATE - backing

1шт.

11

NSS

NOT SOLD SEPARAT

PIN - shoe guide (Short)

2шт.

11a

NSS

NOT SOLD SEPARAT

PIN - shoe eruide (Long)

2шт.

12

A13127

WASHER

RETAINER - guide pin

4шт.

13

A13128

WASHER

spring, guide pin

1шт.

14

A13129

WASHER

plain, guide pin

1шт.

15

A13126

RING, SNAP,22.23mm ID x 33.34mm OD x 2.278mm Thk

RING SNAP retaining, anchor pin

2шт.

16

A13024

PIN,29.39mm OD x 68.25mm L

anchor, brake

2шт.

17

193-50

LOCK WASHER,Ext-Int Tooth, 5/8"

2шт.

18

A13134

NUT

hex , special

2шт.

19

RESERVED

1шт.

20

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

2шт.

21

92-6

LOCK WASHER,3/8"

2шт.

L33875

CYLINDER

ASSEMBLY - brake, Includes Ref: 22-31

1шт.

22

A12924

SCREW,7/16" - 20

bleeder, brake

1шт.

A12985

CYLINDER

ASSEMBLY - brake

1шт.

23

NSS

NOT SOLD SEPARAT

BODY - brake cylinder

1шт.

24

A13043

SPRING

piston return

1шт.

25

A13044

PISTON ASSY.

cylinder

2шт.

A12865

KIT

cylinder repair

1шт.

26

NSS

NOT SOLD SEPARAT

CUP - piston

2шт.

27

NSS

NOT SOLD SEPARAT

BOOT - cylinder

2шт.

28

A12926

BOLT

, Serial Range: fitting-cylinder

1шт.

29

51200242

SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk

, Serial Range: bolt-fitting

1шт.

30

A12925

FITTING

swivel inlet

1шт.

31

L114099

WASHER,13.64mm ID x 21.21mm OD x 1.59mm Thk

swivel, Serial Range: fitting-cylinder

1шт.

L33874

SHOE

AND LINING - brake upper and lower, Includes Ref: 32, 33

2шт.

L33876 lining kit is avail. to replace linings on 4 shoes, thus completing lining requirements for 1 complete axle.

1шт.

32

NSS

NOT SOLD SEPARAT

SHOE - brake

1шт.

33

NSS

NOT SOLD SEPARAT

LINING - brake

1шт.

L33876 lining kit is avail. to replace linings on 4 shoes, thus completing lining requirements for 1 complete axle.

1шт.

34

A12910

GASKET,0.4mm Thk

cover to spider (Illustrated on Figure: 156)

1шт.
