(009A) - WATER PUMP (401B) DIESEL ENGINE 1ST USED ENG. SN. 2570670

Запчасти Case W20 (009A) - WATER PUMP (401B) DIESEL ENGINE 1ST USED ENG. SN. 2570670 (02) - ENGINE

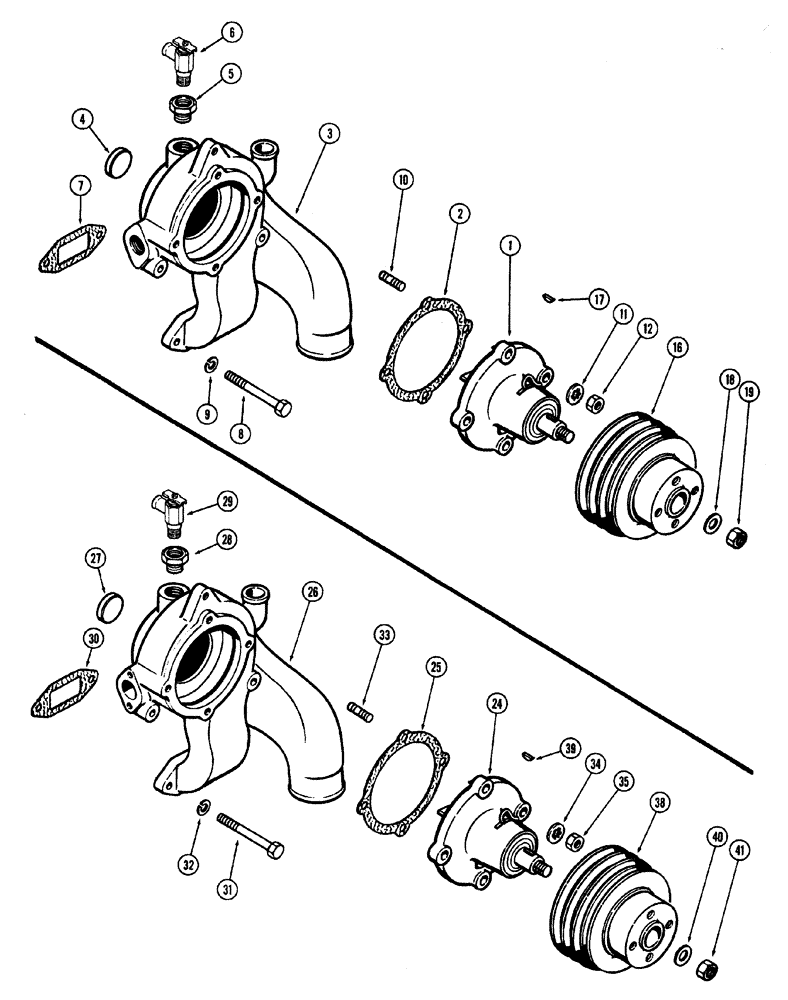

Схема запчастей Case W20 - (009A) - WATER PUMP (401B) DIESEL ENGINE 1ST USED ENG. SN. 2570670 (02) - ENGINE
31
40
12
8
26
25
19
18
17
16
28
35
9
41
34
39
5
30
2
6
38
27
24
32
29
4
10
3
33
7
11
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A62974

PUMP

ASSY water, first used engine Serial No. 2570670

1шт.

1

1342818C1R

REMAN-WATER PUMP

Remanufactured Water Pump

1шт.

1

A48335

CORE-WATER PUMP

Return Part Number, Water Pump

1шт.

2

A58646

GASKET

pump to body, first used engine Serial No. 2570670

1шт.

3

A136441

HOUSING

BODY ASSY water pump, first used engine Serial No. 2570670, Includes Ref: 4

1шт.

4

A58568

PLUG,Cup, 1 3/8", Stainless

body, 1-3/8" cup type, first used engine Serial No. 2570670

1шт.

5

221-1089

REDUCER,Hex, 1/2" x 3/8" NPT

reducing, 3/8" to 1/2", first used engine Serial No. 2570670

1шт.

6

A66821

VALVE

shut- off, first used engine Serial No. 2570670

1шт.

7

A58649

GASKET

pump body, first used engine Serial No. 2570670

1шт.

8

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

Body to block, first used engine S/N 2570670

2шт.

8

13-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

Body to block, first used engine S/N 2570670

2шт.

9

92-6

LOCK WASHER,3/8"

first used engine Serial No. 2570670

4шт.

10

A62234

STUD

pump to body, 3/8" NC x 1-5/16", first used engine Serial No. 2570670

4шт.

11

193-30

LOCK WASHER,Int Tooth, 3/8"

First used engine S/N 2570670

4шт.

12

25-146

JAM NUT,Jam, 3/8"-16, G5

Hex, first used engine Serial No. 2570670

4шт.

16

A62731

PULLEY

drive, water pump & fan, first used engine Serial No. 2570670

1шт.

17

126-116

WOODRUFF KEY,#9, 3/16" x 3/4", HT

Pulley, first used engine S/N 2570670

1шт.

18

A58651

WASHER

pulley, 1/2 x 1-1/16 x 1/8", first used engine Serial No. 2570670

1шт.

19

131-1106

LOCK NUT,1/2"-20, GB

Pulley, first used engine S/N 2570670

1шт.

24

A62974

PUMP

ASSY water, Replaced: A58641, used prior to engine Serial No. 2570670

1шт.

25

A58646

GASKET

pump to body, used prior to engine Serial No. 2570670

1шт.

26

A58856

HOUSING

BODY ASSY water pump, used prior to engine Serial No. 2570670, Includes Ref: 27

1шт.

27

A58568

PLUG,Cup, 1 3/8", Stainless

body, 1-3/8" cup, used prior to engine Serial No. 2570670

1шт.

28

221-1089

REDUCER,Hex, 1/2" x 3/8" NPT

reducing, 3/8" to 1/2", used prior to engine Serial No. 2570670

1шт.

29

A16764

VALVE

shut-off, used prior to engine Serial No. 2570670

1шт.

30

A58649

GASKET

pump body, used prior to engine Serial No. 2570670

1шт.

31

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

Body to block, used prior to engine S/N 2570670

2шт.

31

13-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

Body to block, used prior to engine S/N 2570670

2шт.

32

92-6

LOCK WASHER,3/8"

used prior to engine Serial No. 2570670

4шт.

33

A62234

STUD

pump to body, 3/8" NC x 1-5/16", used prior to engine Serial No. 2570670

4шт.

34

193-30

LOCK WASHER,Int Tooth, 3/8"

Used prior to engine S/N 2570670

4шт.

35

25-146

JAM NUT,Jam, 3/8"-16, G5

Hex, used prior to engine Serial No. 2570670

4шт.

38

A62731

PULLEY

drive water pump & fan, used prior to engine Serial No. 2570670

1шт.

39

126-116

WOODRUFF KEY,#9, 3/16" x 3/4", HT

Pulley, used prior to engine S/N 2570670

1шт.

40

A58651

WASHER

pulley, 1/2 x 1-1/16 x 1/8", used prior to engine Serial No. 2570670

1шт.

41

131-1106

LOCK NUT,1/2"-20, GB

Pulley, used prior to engine S/N 2570670

1шт.
