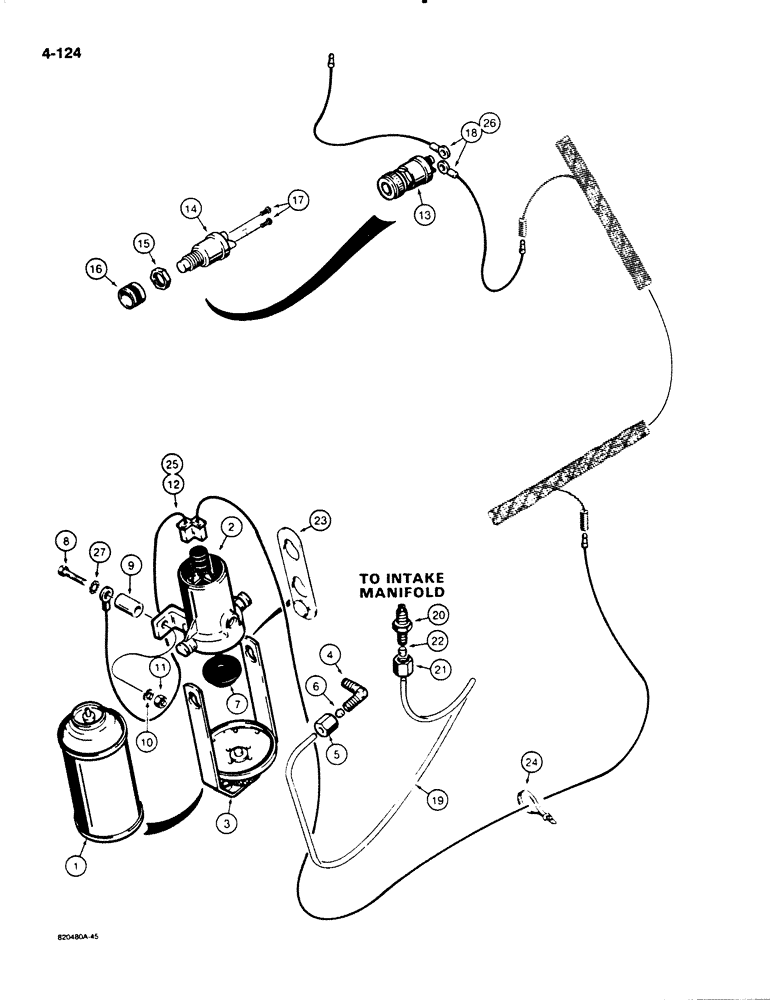

Запчасти Case W18B (4-124) - COLD START SYSTEM (04) - ELECTRICAL SYSTEMS

1

B17072

START SPRAY FLUID

CONTAINER - ether

1шт.

L73025

STARTING MOTOR

SOLENOID ASSEMBLY - 24V, Includes: Ref. 2 - 6

1шт.

2

NSS

NOT SOLD SEPARAT

SOLENOID - cold start

1шт.

3

D77648

BAIL

- container

1шт.

A44809

FITTING

ELBOW - 90 degree

1шт.

4

NSS

NOT SOLD SEPARAT

BODY - fitting

1шт.

5

222-110

TUBE NUT,3/8"-24

NUT - compression

1шт.

6

222-100

TUBE NUT,1/8" Tube

SLEEVE - compression

1шт.

7

R30786

GASKET

- solenoid

1шт.

8

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- hex head, 5/16" - 18 NC x 1-3/4"

2шт.

9

L17446

SPACER

- solenoid mounting

2шт.

10

92-5

LOCK WASHER,5/16"

2шт.

11

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

2шт.

12

L73023

ELECTRICAL WIRE

WIRE - solenoid, W18B

1шт.

12

L73023

ELECTRICAL WIRE

WIRE - solenoid, W20C, Serial Range: -9155766

1шт.

13

L72776

SWITCH

- push button, Includes: Ref. 14 - 17

1шт.

14

NSS

NOT SOLD SEPARAT

BODY - switch

1шт.

15

D73741

NUT

- hex, special

1шт.

16

H275784

JAM NUT

- special

1шт.

17

173-93

BOLT,Sl Rnd Hd, #10 - 24 x 1/4"

SCREW - round head, No. 10 - 32 NF x 1/4"

2шт.

18

A18112

ELECTRICAL WIRE

WIRE - switch, W18B

2шт.

18

A18112

ELECTRICAL WIRE

WIRE - switch, W20C, Serial Range: -9155766

2шт.

19

D41013

TUBE

- nylon, 18 inch (457 mm) long

1шт.

L73024

NOZZLE CAP

NOZZLE ASSEMBLY - cold start, Includes: Ref. 20 - 22

1шт.

20

NSS

NOT SOLD SEPARAT

BODY - nozzle

1шт.

21

222-110

TUBE NUT,3/8"-24

NUT - compression

1шт.

22

222-100

TUBE NUT,1/8" Tube

SLEEVE - compression

1шт.

23

R30812

LINK

- bail

2шт.

24

L18331

CABLE TIE,375.9mm L, Nylon, Black

TIE STRAP - wire

1шт.

25

L114172

HARNESS

WIRE - solenoid, W20C, Start Serial: 9155766

1шт.

26

L114446

HARNESS

WIRE - switch, W20C, Start Serial: 9155766

2шт.

27

193-71

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER, LOCK, Ext-Int Tooth, 5/16"

1шт.
