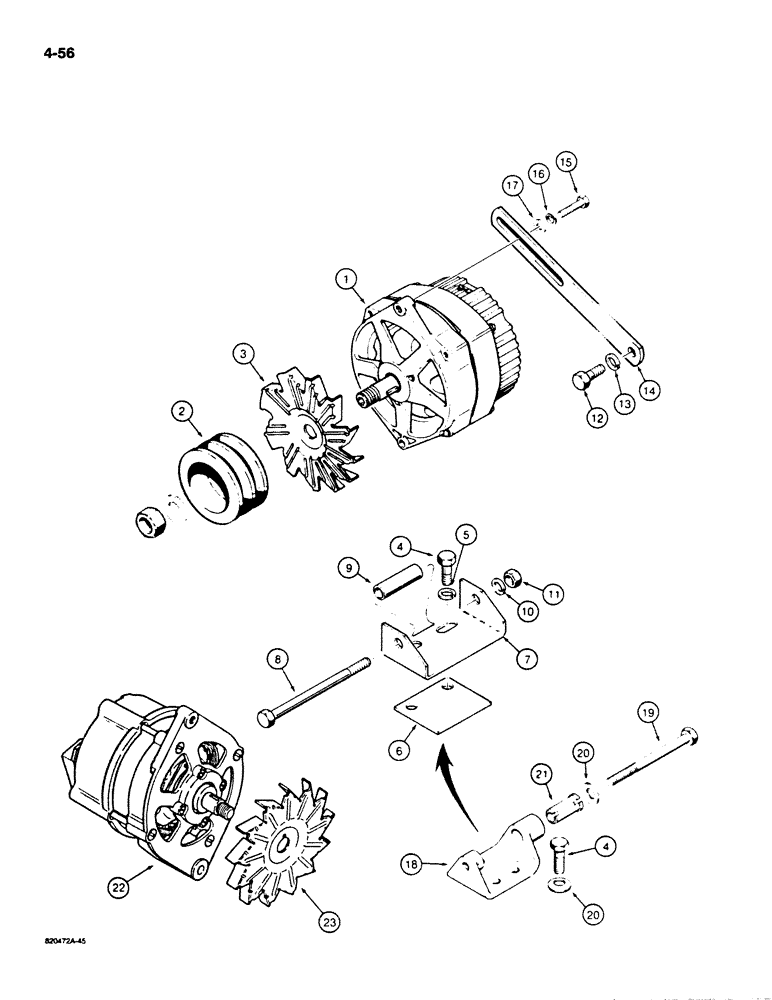

Запчасти Case W18B (4-056) - 40 AND 45 AMP ALTERNATOR AND MOUNTING PARTS (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
A167152
ALTERNATOR
ALTERNATOR - 24V, 40 amp, Delco-Remy No. 1105510, uses metric hardware, parts list Figure 4-004
1шт.
1
104260A1R
REMAN-ALTERNATOR
Remanufactured Alternator, 24 volt 40 ampere,
1шт.
1
104260A1C
CORE-ALTERNATOR
Return Number
1шт.
1
L101465
ALTERNATOR
ALTERNATOR - 24V, 40 amp, Delco-Remy No. 1103123, uses metric hardware, parts list Figure 4-002
1шт.
2
L59716
PULLEY
PULLEY - alternator
1шт.
3
221425R1
FAN
FAN - alternator, used with L101465 and A167152 alternators
1шт.
4
13-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd
BOLT, Hex, 3/8"-16 x 1", G5, Full Thd
2шт.
5
92-6
LOCK WASHER,3/8"
LOCK WASHER, 3/8"
2шт.
6
L108412
SPACER
SPARE PART SPACER - bracket, used with L110477 bracket, Ref. 7
1шт.
7
L110477
ANCHOR
BRACKET - mount, if used
1шт.
8
113-2232
BOLT,Hex, 3/8" - 16 x 5-1/2", Gr 5
BOLT - hex, 3/8 NC x 5-1/2 inch, used with L110477 bracket, Ref. 7
1шт.
9
L78594
SPACER
SPACER - strap, used with L110477 bracket, Ref. 7
1шт.
10
92-6
LOCK WASHER,3/8"
LOCK WASHER, , used with L110477 bracket, Ref. 7 3/8"
1шт.
11
25-106
NUT,3/8"-16, G5
NUT - hex, 3/8" - 16 NC, used with L110477 bracket, Ref. 7
1шт.
12
13-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd
BOLT, Hex, 3/8"-16 x 1", G5, Full Thd
1шт.
13
92-6
LOCK WASHER,3/8"
LOCK WASHER, 3/8"
1шт.
14
A145326
STRAP
STRAP - adjusting
1шт.
15
814-8025
BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd
BOLT - hex head, 8 mm - 1.25 x 25 mm (8.8)
1шт.
16
892-1108
LOCK WASHER,M8
LOCK WASHER, M8
1шт.
17
95-5
WASHER,3/8" x 7/8" x .083"
WASHER - flat, 5/16"
1шт.
18
L114531
BRACKET
BRACKET - mount, if used
1шт.
19
814-10100
BOLT,Hex, M10 x 1.5 x 100mm, Cl 8.8
BOLT - , used with L114531 bracket, item 18 Hex, M10 x 100, 8.8
1шт.
20
L105055
WASHER
WASHER - special, used with L114531 bracket, Ref. 18
3шт.
21
J902469
SPACER
SPACER - bolt, used with L114531 bracket, Ref. 18
1шт.
22
A186124
ALTERNATOR
ALTERNATOR - 24V, 45 amp, Bosch No. B120402296, type K1-28V 3/45A, parts list Figure 4-006
1шт.
23
221425R1
FAN
FAN - alternator, used with A186124 alternator
1шт.
Выбрано товаров: 26
