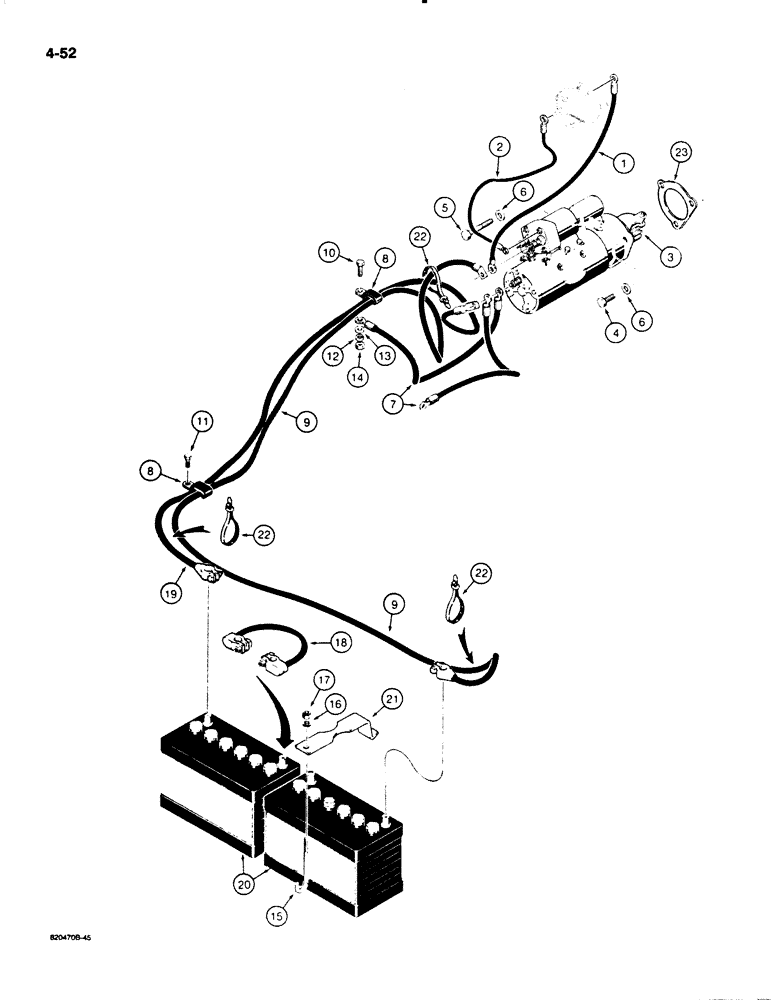

Запчасти Case W18B (4-052) - BATTERY, STARTER AND BATTERY CABLES, USED ON W18B AND BEFORE W20C P.I.N. 9155766 (04) - ELECTRICAL SYSTEMS

1

L106103

CABLE

- starter to solenoid, W18B, Serial Range: -9152155

1шт.

1

L106103

CABLE

- starter to solenoid, W20C, Serial Range: -9152441

1шт.

2

L107275

ELECTRICAL WIRE

WIRE - solenoid to starter, W18B, Serial Range: -9152155

1шт.

2

L107275

ELECTRICAL WIRE

WIRE - solenoid to starter, W20C, Serial Range: -9152441

1шт.

3

R45968

STARTER MOTOR

STARTER - Delco No. 1114872, parts list Figures 4-012 and 4-014

1шт.

4

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

5

13-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

1шт.

6

R24323

WASHER

- flat, 1/2"

3шт.

7

L40793

ELECTRICAL WIRE

CABLE - ground, starter

2шт.

8

L19029

CLAMP

- battery cable

2шт.

9

L110637

CABLE

-, Serial Range: battery-starter

1шт.

10

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1-1/2"

1шт.

11

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

12

92-6

LOCK WASHER,3/8"

2шт.

13

95-6

WASHER,3/8"

- flat, 3/8"

2шт.

14

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

15

T53041

BOLT

J-BOLT - battery holddown

2шт.

16

92-5

LOCK WASHER,5/16"

2шт.

17

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

2шт.

18

L100781

CABLE

-, Serial Range: battery-battery

1шт.

19

L14542

CABLE

- battery ground

1шт.

20

BHC30

BATTERY, DRY

BATTERY - 12 volt, replaces A38411

2шт.

21

L109462

STRAP

RETAINER - battery

2шт.

22

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

23

A27933

GASKET

- starter mount

1шт.
