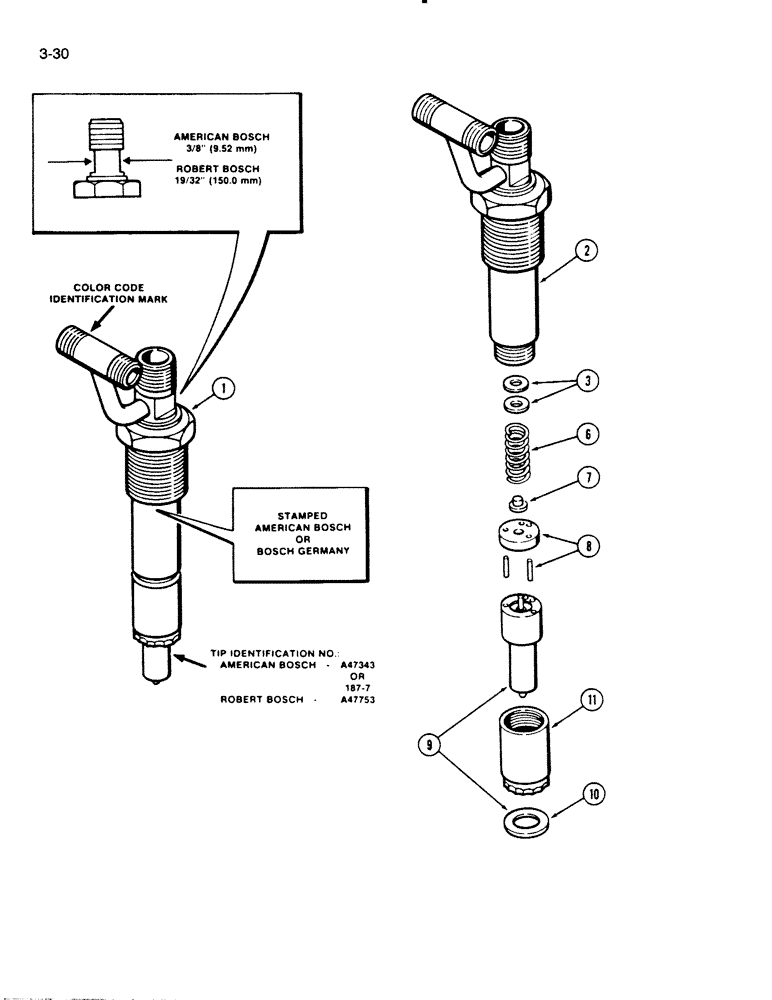

Запчасти Case W18B (3-30) - FUEL INJECTOR NOZZLE, 504BD AND 504BDT ENGINE, BLUE COLOR CODE IDENTIFICATION (03) - FUEL SYSTEM

A156323

NOZZLE CAP

NOZZLE ASSEMBLY - fuel injection, Includes: Ref. 1 - 11

6шт.

A156323R

REMAN-INJECT NOZZLE

W18B, W20C

6шт.

A156323C

CORE-NOZZLE, INJECT

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

NOZZLE ASSEMBLY - fuel injection, American Bosch, Includes: Ref. 2 -11

1шт.

Internal parts between the American Bosch and Robert Bosch injectors are not interchangable. See illustration for identification

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - nozzle (Order A156323)

1шт.

A44860

SHIM

KIT - shim, nozzle opening pressure (One kit will repair six nozzles), Includes: Ref. 3

1шт.

3

680414C1

SPACER

SHIM - 0.062 inch (6 in kit)

1шт.

3

680415C1

SPACER

SHIM - 0.002 inch (8O in kit)

1шт.

3

680416C1

SPACER

SHIM - 0.007 inch (50 in kit)

1шт.

3

680418C1

SPACER

SHIM - 0.010 inch (5O in kit)

1шт.

3

680419C1

SPACER

SHIM - 0.025 inch (2O in kit)

1шт.

6

A44864

SPRING

- nozzle pressure

1шт.

7

A44863

SEAT

- nozzle pressure spring

1шт.

8

A44862

VALVE

STOP - nozzle with pin

1шт.

9

A47343

NOZZLE CAP

TIP ASSEMBLY - nozzle injector

1шт.

10

A76640

GASKET

WASHER - injection nozzle tip

1шт.

When nozzle is removed from head, A76640 gasket must be replaced before nozzle is installed back in head.

1шт.

11

A44861

NUT

NUT - nozzle end

1шт.
