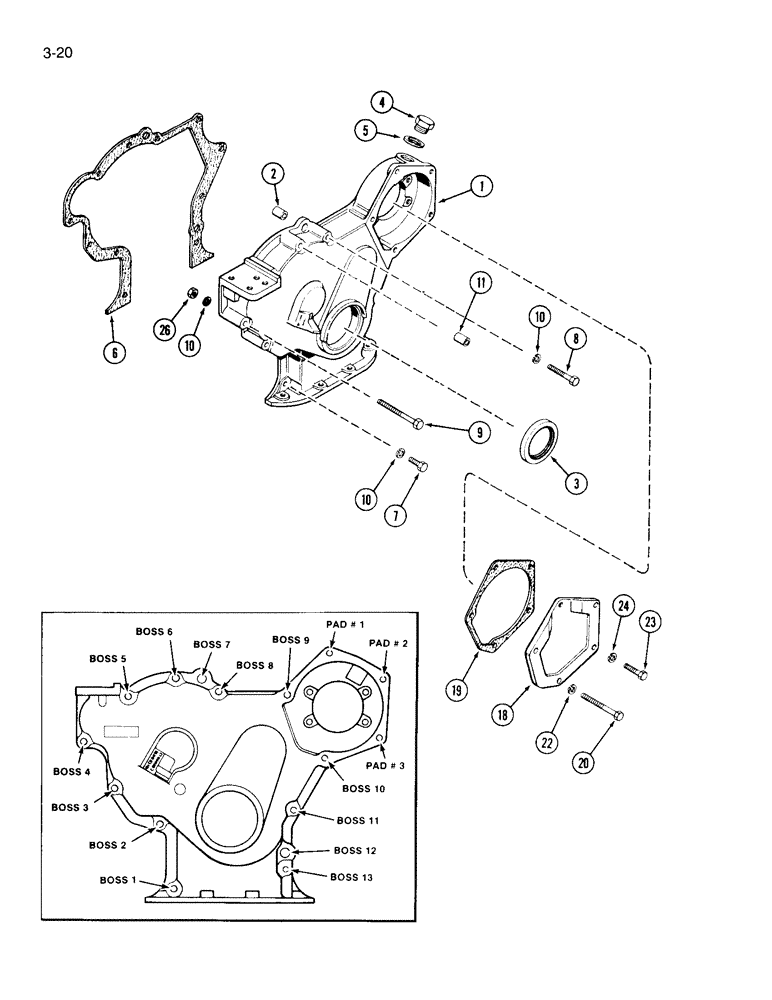

Запчасти Case W18B (3-20) - TIMING GEAR COVER, 504BD AND 504BDT ENGINE (03) - FUEL SYSTEM

1

A166141

HOUSING

COVER ASSEMBLY - timing gear (Replaces A58609), Includes: Ref. 2

1шт.

Has "timing pointer" cast into it.

1шт.

2

A58611

PIN

- locating

2шт.

3

A157044

OIL SEAL,63.78mm ID x 92.2mm OD x 9.91mm Thk

- oil, crankshaft front (Replaces A62049)

1шт.

4

A21140

PLUG

-timing hole

1шт.

5

A58613

SEALING WASHER

GASKET - timing gear cover plug

1шт.

6

A58612

GASKET

- timing gear cover

1шт.

7

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

(Boss 1, 2, 11 and 13) Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

8

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

(Boss 3, 6 and 8) Hex, 3/8"-16 x 2 1/2", G5

3шт.

9

413-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- hex, 3/8 NC x 3-1/2 inch (Boss 4 and 5)

2шт.

10

492-11038

LOCK WASHER,3/8"

9шт.

11

A19774

BUSHING

SPACER - alternator pry point

1шт.

18

A61053

COVER

- pump drive gear

1шт.

19

A58615

GASKET

- fuel pump cover

1шт.

20

A151921

BOLT

- drilled, 3/8 x 1-1/4 inch NC hex (Head drilled for anti-tamper wire)(Pad 2 and 3)

2шт.

20

413-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- hex, 3/8 NC x 3-1/2 inch (Boss 9 and 10)

2шт.

22

492-11038

LOCK WASHER,3/8"

4шт.

23

113-113

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

(Pad 1) Hex, 5/16"-18 x 7/8", G5, Full Thd

1шт.

24

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

26

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, (Boss 4 and 5) 3/8"-16, G5

2шт.
