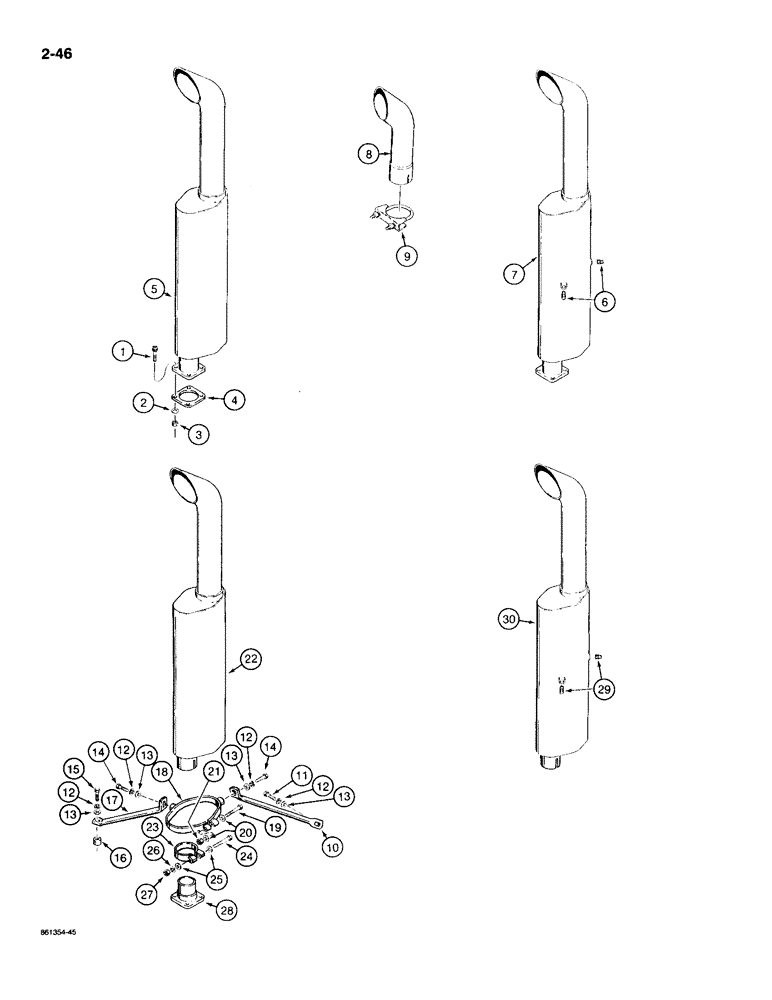

Запчасти Case W18B (2-46) - EXHAUST SYSTEM (02) - ENGINE

1

61-728

HEX SOC SCREW,7/16"-14 x 1 3/4"

BOLT - hex socket head, 7/16" - 14 NC x 1-3/4", replaces 3/8" hardware on some machines

4шт.

If these components are 3/8" diameter hardware, the complete assembly of items 1, 2, and 3 above must be used for replacement.

1шт.

2

A50689

WASHER

- hardened

4шт.

If these components are 3/8" diameter hardware, the complete assembly of items 1, 2, and 3 above must be used for replacement.

1шт.

3

25-107

NUT,7/16"-14, G5

- hex, 7/16" - 14 NC, replaces 3/8" hardware on some machines

4шт.

If these components are 3/8" diameter hardware, the complete assembly of items 1, 2, and 3 above must be used for replacement.

1шт.

4

L14218

MANIFOLD GASKET

- adapter to exhaust manifold

1шт.

5

L107829

MUFFLER

- engine exhaust, no longer available, order items 22-27 below

1шт.

L116356

MUFFLER

SPARK ARRESTER ASSEMBLY - exhaust system, no longer available, order items 23-30 below, Includes: Ref. 6 & 7

1шт.

6

217-87

PLUG,Hex Hd, 3/8"-18 NPTF, Brass

- 3/8" NPT

2шт.

7

NSS

NOT SOLD SEPARAT

SPARK ARRESTER - exhaust system

1шт.

8

L57758

MUFFLER

EXHAUST PIPE - models with turbocharger

1шт.

9

A17851

CLAMP

ASSEMBLY - exhaust pipe, includes hardware

1шт.

10

L116344

TUBE,0.75" OD x 16.1" L

SUPPORT - muffler, fastens to exhaust manifold, no longer available, see Service Bulletin W01-85.1

1шт.

11

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

If used Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

12

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , If used 3/8"

4шт.

13

195-104

WASHER,3/8"

- flat, , if used 3/8"

4шт.

14

113-221

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

If used Hex, 3/8"-16 x 7/8", G5, Full Thd

2шт.

15

113-213

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

If used Hex, 3/8"-16 x 2 1/4", G5

1шт.

16

L102676

SPACER

- muffler support, if used

1шт.

17

L116345

TUBE,0.75" OD x 11.73, 6.14" L

SUPPORT - muffler, fastens to inlet manifold, no longer available, see Service Bulletin W01-85.1

1шт.

18

L115210

CLAMP

- muffler, used with support brackets, no longer available, see Service Bulletin W01-85.1

1шт.

19

113-241

BOLT,Hex, 3/8" - 16 x 3", Gr 5

If used Hex, 3/8"-16 x 3", G5

1шт.

20

195-525

WASHER,3/8", SAE

- flat, 3/8", if used

2шт.

21

131-666

LOCK NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8" - 16 NC, if used

1шт.

22

L114456

MUFFLER

- engine exhaust, without welded foot

1шт.

23

R27691

CLAMP

- muffler

1шт.

24

113-247

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

1шт.

25

195-104

WASHER,3/8"

- flat, , plated 3/8"

2шт.

26

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

27

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

28

L118258

ADAPTER

- muffler

1шт.

L118308

MUFFLER

SPARK ARRESTER ASSEMBLY - exhaust system, Includes: Ref. 29 & 30

1шт.

29

217-87

PLUG,Hex Hd, 3/8"-18 NPTF, Brass

- hex head, 3/8" NPT, brass

2шт.

30

NSS

NOT SOLD SEPARAT

SPARK ARRESTER - exhaust system

1шт.
