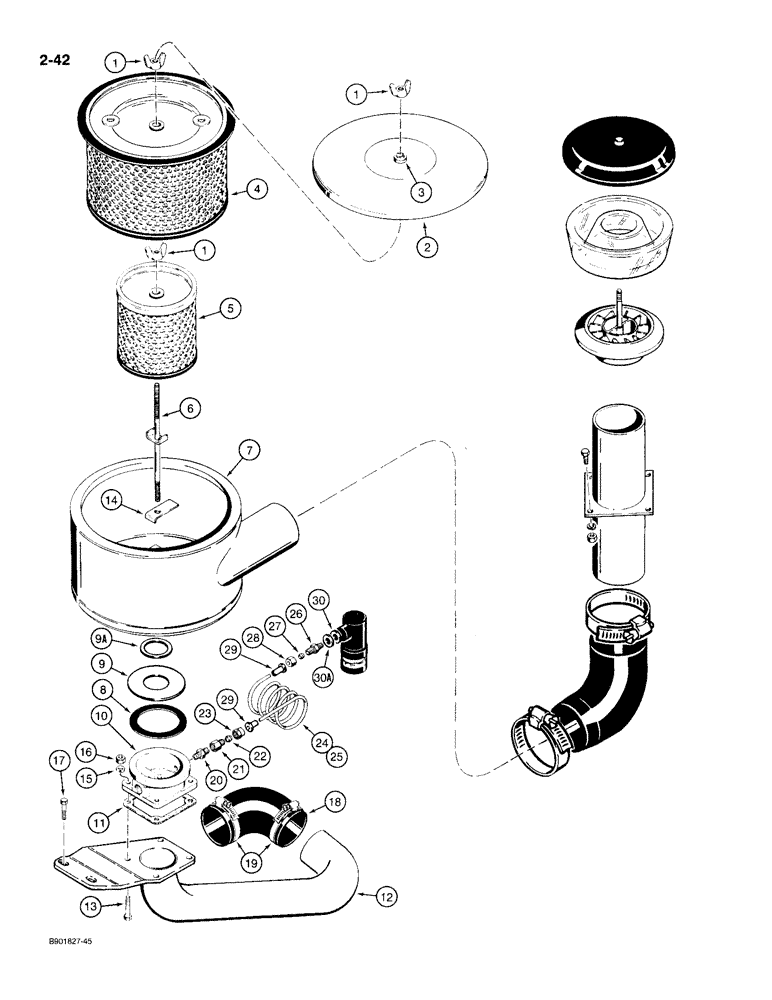

Запчасти Case W18B (2-42) - AIR CLEANER AND MOUNTING (02) - ENGINE

L116506

FILTER CARTRIDGE

AIR CLEANER ASSEMBLY - dry type, replaces L79863 air cleaner, Includes: Ref. 1 - 8

1шт.

1

129-549

WING NUT,Locking, 3/8"-16

- cover retainer

1-3шт.

L35985

COVER ASSY

COVER - air cleaner, Includes: Ref. 2 & 3

1шт.

2

NSS

NOT SOLD SEPARAT

COVER - air cleaner

1шт.

3

N13579

WASHER

- special, sealing

1шт.

4

A43734

AIR CLEANER

ELEMENT - filter, outer

1шт.

5

A43735

AIR CLEANER

ELEMENT - filter, inner

1шт.

6

D76943

ROD

STUD - special, 11-7/16" long

1шт.

7

N9860

BOWL

HOUSING - air cleaner

1шт.

8

L116466

GASKET

- air cleaner

1шт.

Part of gasket, air cleaner kit P/N L36287

1шт.

9

L116465

WASHER

- air cleaner, if used

1шт.

Part of gasket, air cleaner kit P/N L36287

1шт.

9a

L116467

GASKET

- air cleaner, if used

1шт.

Part of gasket, air cleaner kit P/N L36287

1шт.

10

L108308

ADAPTER

- air cleaner to intake manifold

1шт.

11

A58910

GASKET

- adapter to intake manifold

1шт.

12

L70187

TUBE,12.3" L

- air intake, turbocharger, if used

1шт.

13

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1-1/2"

4шт.

14

L53838

LOCK ASSY

LOCK - tab

1шт.

15

92-6

LOCK WASHER,3/8"

4шт.

16

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

17

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

18

D36262

LARGE HOSE

HOSE - air intake, turbocharger, if used

1шт.

19

214-264

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

CLAMP - hose, turbocharger, if used

2шт.

20

D36264

FITTING

- special

1шт.

222-2670

FITTING

- compression tube, Includes: Ref. 21 - 23

1шт.

21

NSS

NOT SOLD SEPARAT

BODY - fitting

1шт.

22

NSS

NOT SOLD SEPARAT

SLEEVE - tube

1шт.

23

NSS

NOT SOLD SEPARAT

NUT - fitting

1шт.

24

D41013

TUBE

- air cleaner indicator, no turbocharger

1шт.

25

L40537

TUBE,0.078" ID x 0.125" OD x 34" L

- air cleaner indicator, turbocharger

1шт.

222-2633

FITTING

- compression, tube, Includes: Ref. 26 - 28

1шт.

26

NSS

NOT SOLD SEPARAT

BODY - fitting

1шт.

27

NSS

NOT SOLD SEPARAT

SLEEVE - fitting

1шт.

28

NSS

NOT SOLD SEPARAT

NUT - fitting

1шт.

29

222-2452

INSERT

- nylon tubing

2шт.

30

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16"), Used with 222-2633 fitting, items 26 through 28 3/8", SAE

1шт.

30a

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch), Used with 222-2633 fitting, items 26 through 28 3/8"

1шт.

L36287

GASKET

KIT - gasket, air cleamer, Includes: Refs. 8, 9, and 9A

1шт.
