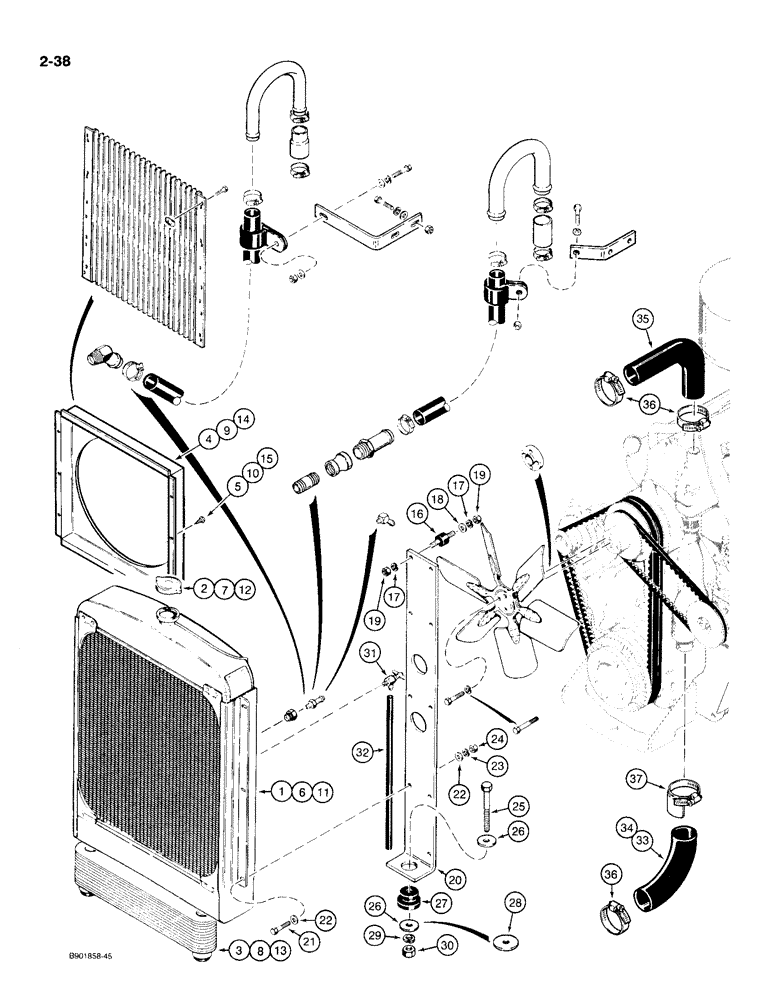

Запчасти Case W18B (2-38) - RADIATOR, FAN AND FAN BELTS (02) - ENGINE

1

L109500

RADIATOR

- cooling, W18B, Includes: Ref. 2 - 5, Serial Range: -9147720

1шт.

1

L109500

RADIATOR

- cooling, W20C, Includes: Ref. 2 - 5, Serial Range: -9148304

1шт.

2

D25826

CAP

- radiator

1шт.

3

D83221

TANK

- oil cooler

1шт.

14 plate cooler

1шт.

4

N7898

SHROUD

- radiator

1шт.

5

168-24

DRIVE SCREW,Type U, Rnd Hd, #10 - 24 x 1/2"

- self-tapping, No. 10 - 24 NC x 1/2"

6шт.

6

L61032

RADIATOR

- cooling, W18B, must be identified as a Young radiator, Includes: Ref. 7 - 10 9147720 to

1шт.

6

L61032

RADIATOR

- cooling, W20C, must be identified as a Young radiator, Includes: Ref. 7 - 10 9148304 to

1шт.

7

D25826

CAP

- radiator

1шт.

8

N9273

COOLER, OIL

TANK - oil cooler

1шт.

10 plate cooler

1шт.

9

NSS

NOT SOLD SEPARAT

SHROUD - radiator

1шт.

10

168-24

DRIVE SCREW,Type U, Rnd Hd, #10 - 24 x 1/2"

- self-tapping, No. 10 - 24 NC x 1/2"

8шт.

11

L117965

RADIATOR

- cooling, W18B, must be identified as a General radiator, no longer available, for complete radiator replacement, order L72167 radiator, item 11 below 9147720 to

1шт.

11

L117965

RADIATOR

- cooling, W20C, must be identified as a General radiator, no longer available, for complete radiator replacement, order L72167 radiator, item 11 below 9148304 to

1шт.

11

L72167

RADIATOR

- cooling, identified as a Young radiator, Includes: Ref. 12 - 15

1шт.

Reference is made to a general radiator. It should be general or long radiators.

1шт.

12

D25826

CAP

- radiator

1шт.

13

N9273

COOLER, OIL

TANK - oil cooler

1шт.

10 plate cooler

1шт.

14

N7898

SHROUD

- radiator, bolted on, L117965 radiator

1шт.

14

NSS

NOT SOLD SEPARAT

SHROUD - radiator, welded on, L72167 radiator

1шт.

15

168-24

DRIVE SCREW,Type U, Rnd Hd, #10 - 24 x 1/2"

- self-tapping, No. 10 - 24 NC x 1/2", if used

8шт.

16

L11236

BOLT

BOLT - special

2шт.

17

92-5

LOCK WASHER,5/16"

4шт.

18

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16"

2шт.

19

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

4шт.

20

L109178

SUPPORT

- radiator

2шт.

21

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

8шт.

22

95-6

WASHER,3/8"

- flat, 3/8"

16шт.

23

92-6

LOCK WASHER,3/8"

8шт.

24

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

8шт.

25

13-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

2шт.

26

195-2061

WASHER,5/8" x 1 7/8" x .134"

- flat, 1/2"

4шт.

27

L46821

SHOCK ABSORBER

INSULATOR - rubber mount

2шт.

28

195-2068

WASHER,0.56" ID x 2" OD x 0.07" Thk

- flat, 1/2", special, if used

2шт.

29

92-8

LOCK WASHER,1/2"

2шт.

30

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

2шт.

31

A27862

COCK, DRAIN

VALVE - radiator drain

1шт.

32

L13809

RADIATOR HOSE,6.40 mm ID x 609.60, SAE 30R2 Type I

- Radiator drain 6.40 mm ID x 609.60, SAE 30R2 Type I

1шт.

33

L109274

RADIATOR HOSE,2.62" ID x 10.30", SAE 20R4 Class SC or D-1

Lower, Used with item 1, L109500 Radiator 2.62" ID x 10.30", SAE 20R4 Class SC or D-1

1шт.

34

L61064

LARGE HOSE,2.50" ID, 2.62" ID x 10.30", SAE 20R4 Class SC or D1

RADIATOR HOSE, , Lower, Used w.Ref.. 6, L61032 and Ref. 11, L117965 or L72167 2.50" ID, 2.62" ID x 10.30", SAE 20R4 Class SC or D1

1шт.

35

L109275

RADIATOR HOSE,2.50" ID x 10.30", SAE 20R4 Class SC or D-1

Upper 2.50" ID x 10.30", SAE 20R4 Class SC or D-1

1шт.

36

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - hose, radiator

3-4шт.

37

L115507

CLAMP

- hose, radiator, special, used with item 34, L61064 hose

1шт.
