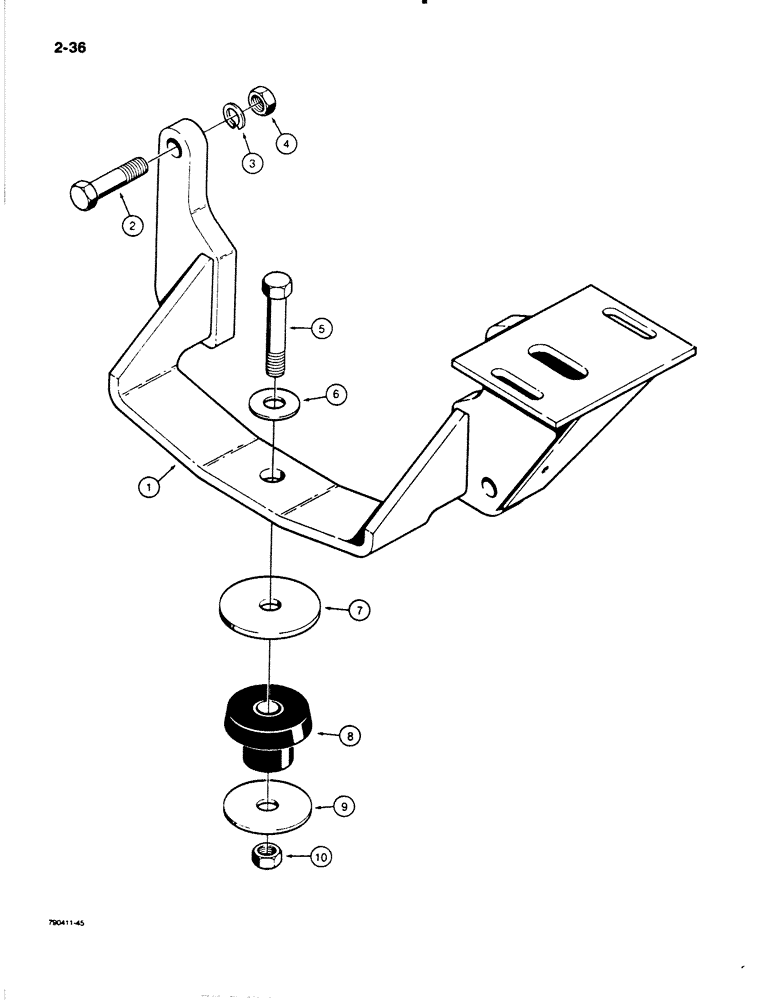

Запчасти Case W18B (2-36) - ENGINE MOUNTS (02) - ENGINE

1

L47865

BRACKET

- engine mounting

1шт.

2

13-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

4шт.

3

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

4

25-1012

NUT,3/4"-10, G5

4шт.

5

13-1268

BOLT,Hex, 3/4" - 10 x 4-1/4", Gr 5

- hex head, 3/4" - 10 NC x 4-1/4"

1шт.

6

L79179

WASHER

- hardened

1шт.

7

L100884

WASHER

- flat, special

1шт.

8

A19066

MOUNTING PARTS

INSULATOR - rubber mount

1шт.

9

A19068

WASHER

- flat, special

1шт.

10

131-16

LOCK NUT,3/4"-10, GB

LOCKNUT, 3/4"-10, GB

1шт.
