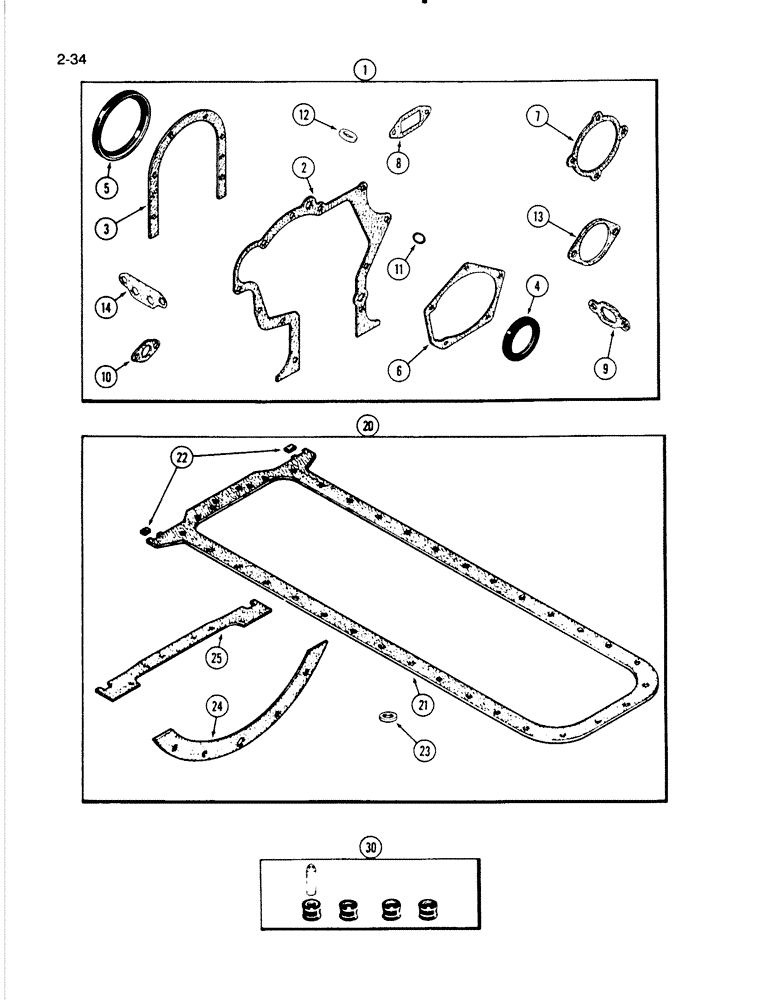

Запчасти Case W18B (2-34) - ENGINE GASKET KITS, 504BD AND 504BDT ENGINE (02) - ENGINE

1

A44075

GASKET KIT

- cylinder block, Includes: Ref. 2 - 14

1шт.

For complete engine overhaul order (1) each of A157300 on Fig. 2-32 and A44075 and A152479 on Fig. 2-34

1шт.

2

A58612

GASKET

- timing gear cover, cylinder block kit

1шт.

3

A32830

GASKET

- retainer, cylinder block kit

1шт.

4

A157044

OIL SEAL,63.78mm ID x 92.2mm OD x 9.91mm Thk

- oil, crankshaft front (Replaces A62049), cylinder block kit

1шт.

5

A62050

OIL SEAL

- oil, rear, cylinder block kit

1шт.

6

A58615

GASKET

- fuel pump cover, cylinder block kit

1шт.

7

A58646

GASKET

- pump to body, cylinder block kit

1шт.

8

A58649

GASKET

- body to block, cylinder kit

1шт.

9

A58670

GASKET

- tube to block, cylinder kit

1шт.

10

A58680

OIL PAN GASKET SET

- tube to water pump, cylinder block kit

1шт.

11

A64434

O-RING,0.93" ID x 1.142" x 0.106"

- base to block, cylinder kit

3шт.

12

A58613

SEALING WASHER

GASKET - timing gear cover plug, cylinder block kit

1шт.

13

A58617

GASKET

- auxiliary drive cover, cylinder block kit

1шт.

14

A58756

OIL PAN GASKET SET

- oil filter boss, cylinder block kit

1шт.

20

A152479

GASKET KIT

- oil pan, Includes: Ref. 21 - 25

1шт.

For complete engine overhaul order (1) each of A157300 on Fig. 2-32 and A44075 and A152479 on Fig. 2-34

1шт.

21

A150688

GASKET

- pan to block, oil, kit

1шт.

22

A150690

OIL PAN GASKET SET

- corner, oil pan kit

2шт.

23

A27968

RING

- copper, drain plug, oil pan kit

1шт.

24

A57966

GASKET

- pan to transmission, oil, kit

1шт.

25

A150689

GASKET

- pan to block, oil, kit

1шт.

30

M20614

SEAL KIT

SEAL KIT - valve, oil pan kit

1шт.
