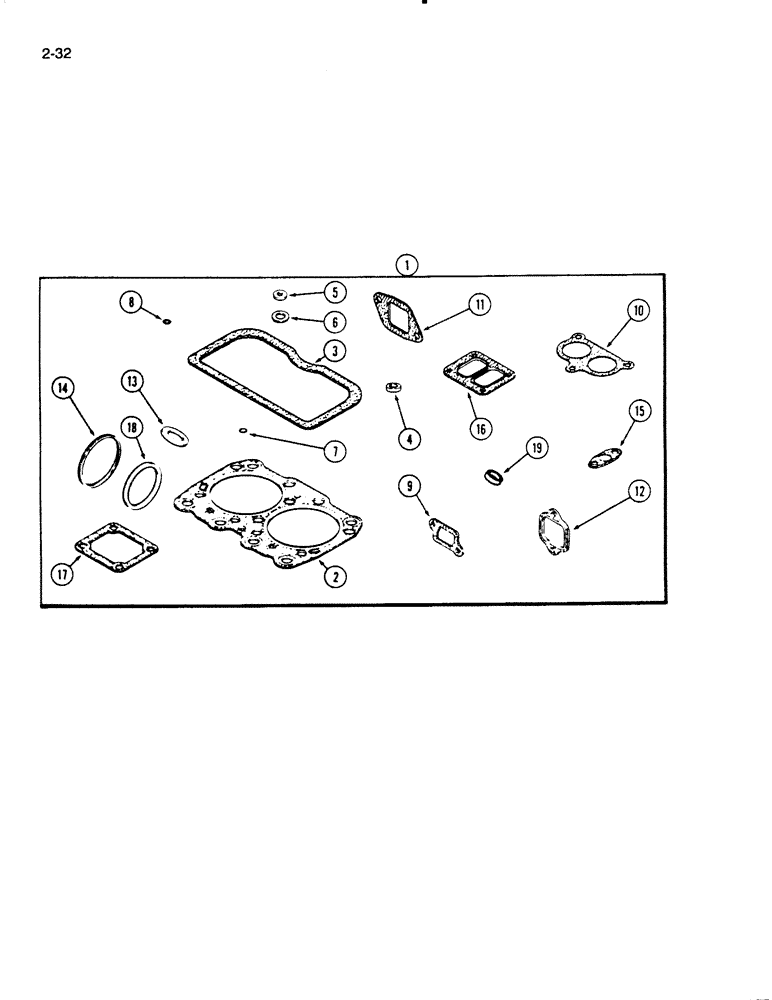

Запчасти Case W18B (2-32) - ENGINE GASKET KITS, 504BD AND 504BDT ENGINE, VALVE GRIND KIT (02) - ENGINE

1

A157300

GASKET

KIT - valve grind, Includes: Ref. 2 - 19

1шт.

For complete engine overhaul order (1) each of A157300 on Fig. 2-32 and A44075 and A152479 on Fig. 2-34

1шт.

2

A138397

CYLINDER HEAD GASKET

-, Serial Range: head-block

3шт.

3

A156960

CYLINDER HEAD GASKET,3.05mm Thk

-, Serial Range: cover-head

3шт.

4

A142098

GROMMET

- cover studs

6шт.

5

A166102

WASHER,6.45mm ID x 12.7mm OD x 0.81mm Thk

GASKET - breather tube bolt (Replaces A34133)

3шт.

6

A58635

GASKET,17.27mm ID x 32mm OD x 6.6mm Thk

-, Serial Range: tube-cover

3шт.

7

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

- rocker shaft oil tube

3шт.

8

A58628

SEAL,8mm ID x 13.77mm OD x 2.16mm Thk

- valve stem

12шт.

9

A166147

GASKET

- manifold to head (Replaces A58637)

3шт.

10

A166148

GASKET

- housing to manifold (Replaces A58639)

1шт.

11

A58662

MANIFOLD GASKET

-, Serial Range: manifold-head

6шт.

12

A58895

GASKET

- manifold to head (Replaces A140252)

6шт.

13

A76640

GASKET

WASHER - injection nozzle tip

6шт.

14

A138817

RING,2.64mm Thk

SEAL - turbocharger

1шт.

15

A58892

GASKET,1.59mm Thk

- drain tube

1шт.

16

A58899

GASKET,0.45mm Thk

-, Serial Range: turbocharger-manifold

2шт.

17

A58910

GASKET

- elbow

1шт.

18

A152831

SHIM,91.95mm ID x 101.6mm OD x 0.84mm Thk

- turbocharger exhaust

1шт.

19

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon nozzle tip

6шт.
