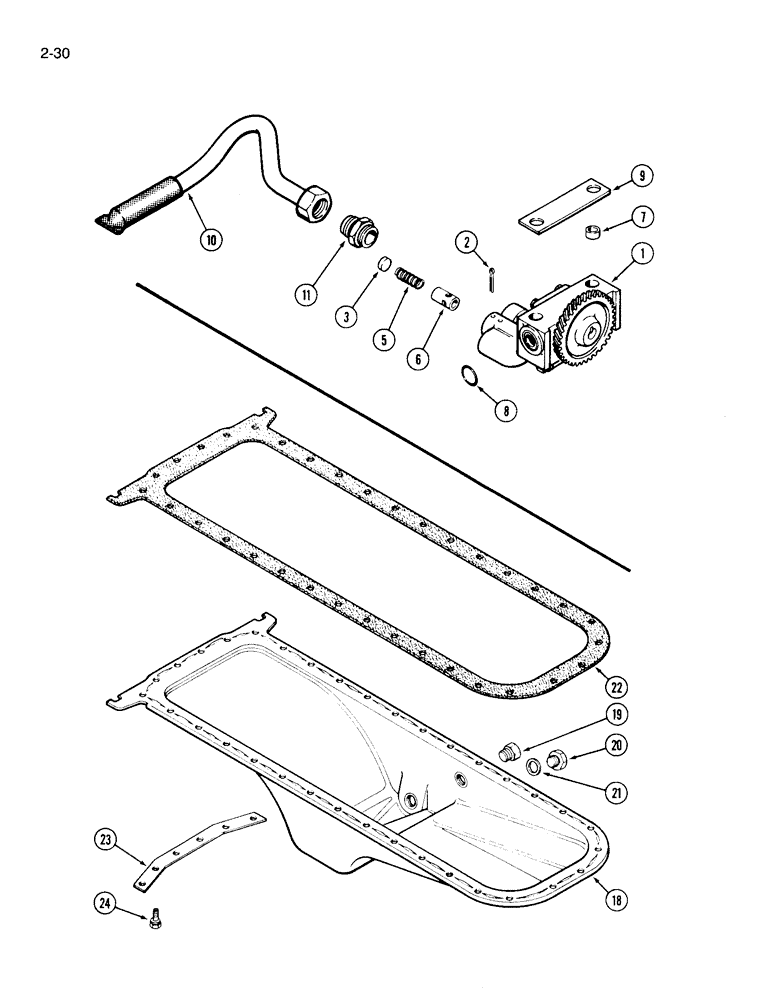

Запчасти Case W18B (2-30) - OIL PUMP, 504BD AND 504BDT ENGINE (02) - ENGINE

1

A153805

PUMP, ENGINE OIL

PUMP ASSEMBLY - engine oil, Includes: Ref. 2 - 7

1шт.

2

132-32

COTTER PIN,3/32" x 1 1/2"

Pin, Split (Cotter), 3/32" x 1 1/2"

1шт.

3

41-1011

PLUG,Cup, 11/16"

- cup, 11/16 inch diameter

1шт.

5

A155980

SPRING

- relief valve

1шт.

6

A65083

VALVE

- relief

1шт.

7

A58915

SLEEVE

- locating

1шт.

8

A64434

O-RING,0.93" ID x 1.142" x 0.106"

- base to block

1шт.

9

A58859

SHIM,.005" Thk

Oil pump (0.127 mm) .005" Thk

1шт.

10

A139711

TUBE

- oil suction

1шт.

11

A142004

CONNECTOR, ELEC

CONNECTOR - suction tube

1шт.

18

A62410

PAN

ASSEMBLY - oil

1шт.

19

221-664

PLUG,Hex Hd, 1/2"-14

- hex, 1/2 inch PT, oil pan

1шт.

20

A34826

PLUG,7/8" - 18 ORB

- drain, oil pan

1шт.

21

A27968

RING

- copper, drain plug, oil pan

1шт.

22

REF

INSTRUCTION

GASKET - oil pan (See Figure 2-34)

1шт.

23

A58932

STRAP

- reinforcing, oil pan

1шт.

24

193-553

SCREW,SEMS, Hex Hd, 3/8"-16 x 7/8", G5

BOLT - hex with washer, 3/8 NC x 7/8 inch, oil pan

34шт.
