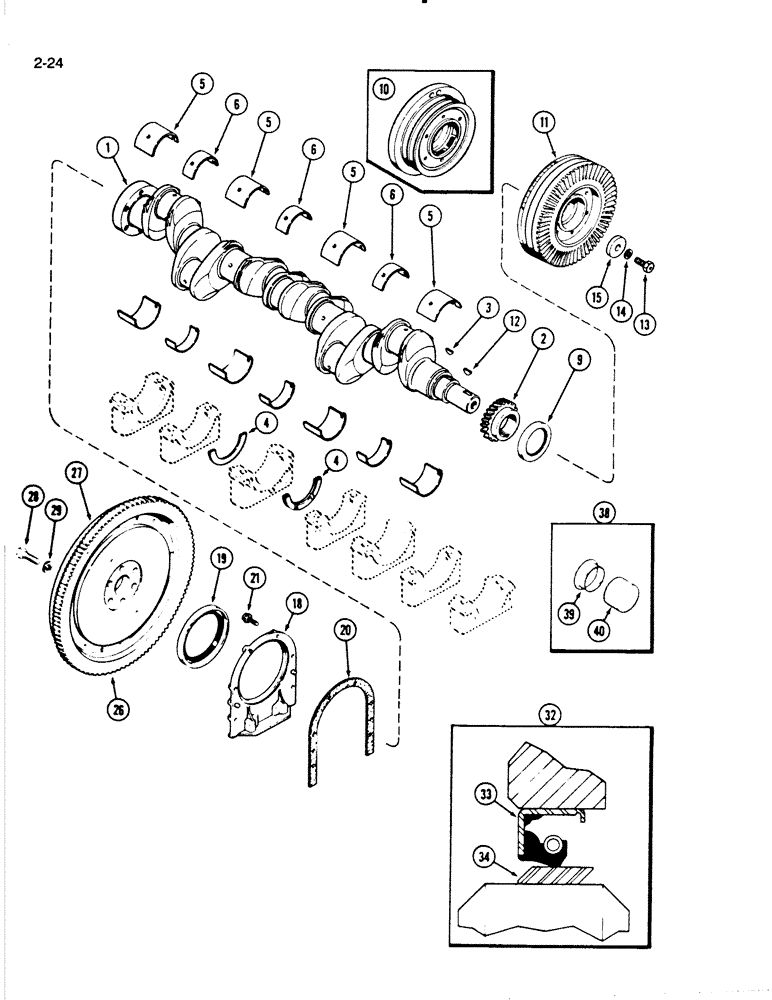

Запчасти Case W18B (2-24) - CRANKSHAFT AND FLYWHEEL, 504BD AND 504BDT ENGINE (02) - ENGINE

1

A154305

CRANKSHAFT

ASSEMBLY - engine (Includes Ref 2 and 3)

1шт.

1

A166117

CRANKSHAFT

- engine, 0.010 inch undersize, Includes: Ref. 2 & 3

1шт.

2

A66404

GEAR

- crankshaft

1шт.

3

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

Gear #C, 5/16" x 1 1/8", HT

1шт.

4

A62573

THRUST WASHER,88.06mm ID x 114.3mm OD x 4.7mm Thk

WASHER - thrust, standard, 0.156 inch

2шт.

.184 / .186"

1шт.

4

A42932

BEARING WASHER,87.81mm ID x 114.55mm OD x 4.88mm Thk

WASHER - thrust, oversize, 0.162 inch

2шт.

.190 / .192"

1шт.

5

A43163

BEARING LINER

INSERT SET - main bearing, wide, standard (Set of 2)

4шт.

5

A43164

BEARING LINER

INSERT SET - main bearing, wide, 0.002 inch (Set of 2)

4шт.

5

A43165

BEARING LINER

INSERT SET - main bearing, wide, 0.010 inch (Set of 2)

4шт.

5

A43166

BEARING LINER

INSERT SET - main bearing, wide, 0.020 inch (Set of 2)

4шт.

5

A43167

BEARING LINER

INSERT SET - main bearing, wide, 0.030 inch (Set of 2)

4шт.

6

A43158

BEARING LINER

INSERT SET - main bearing, narrow, standard (Set of 2)

3шт.

6

A43159

BEARING LINER

INSERT SET - main bearing, narrow, 0.002 inch (Set of 2)

3шт.

6

A43160

BEARING LINER

INSERT SET - main bearing, narrow, 0.010 inch (Set of 2)

3шт.

6

A43161

BEARING SET

INSERT SET - main bearing, narrow, 0.020 inch (Set of 2)

3шт.

6

A43162

BEARING LINER

INSERT SET - main bearing, narrow, 0.030 inch (Set of 2)

3шт.

9

A157044

OIL SEAL,63.78mm ID x 92.2mm OD x 9.91mm Thk

- oil, crankshaft front (Replaces A62049)

1шт.

10

A135580

PULLEY

- fan drive (If equipped)

1шт.

11

A65125

PULLEY

- fan drive (If equipped)

1шт.

12

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

Gear #C, 5/16" x 1 1/8", HT

1шт.

13

414-1024

BOLT,Hex, 5/8" - 18 x 1-1/2", Gr 5

1шт.

14

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

15

A156428

WASHER

- pulley retainer

1шт.

18

A57457

RETAINER

- rear oil seal

1шт.

19

A62050

OIL SEAL

- oil, rear (See Ref 32)

1шт.

20

A32830

GASKET

- retainer

1шт.

21

193-554

SCREW,SEMS, Hex Hd, 3/8"-16 x 1 1/4", G5

BOLT - hex, 3/8 NC x 1-1/4 inch

6шт.

26

A154190

FLYWHEEL

ASSEMBLY - engine, Includes: Ref. 27

1шт.

27

A27920

GEAR

- ring

1шт.

28

28-1024

BOLT,Hex, 5/8" - 18 x 1-1/2", Gr 8

- hex, 5/8 NF x 1-1/2 inch

6шт.

29

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

WASHER - flat, hardened

6шт.

32

A43194

KIT

- wear seal, rear

1шт.

33

NSS

NOT SOLD SEPARAT

SEAL - oil, rear, wear kits

1шт.

34

NSS

NOT SOLD SEPARAT

SLEEVE - wear seal kits

1шт.

38

A154684

SLEEVE

KIT - wear seal, front

1шт.

39

NSS

NOT SOLD SEPARAT

SLEEVE - wear seal kits

1шт.

40

NSS

NOT SOLD SEPARAT

TOOL - installation, wear seal kits

1шт.
