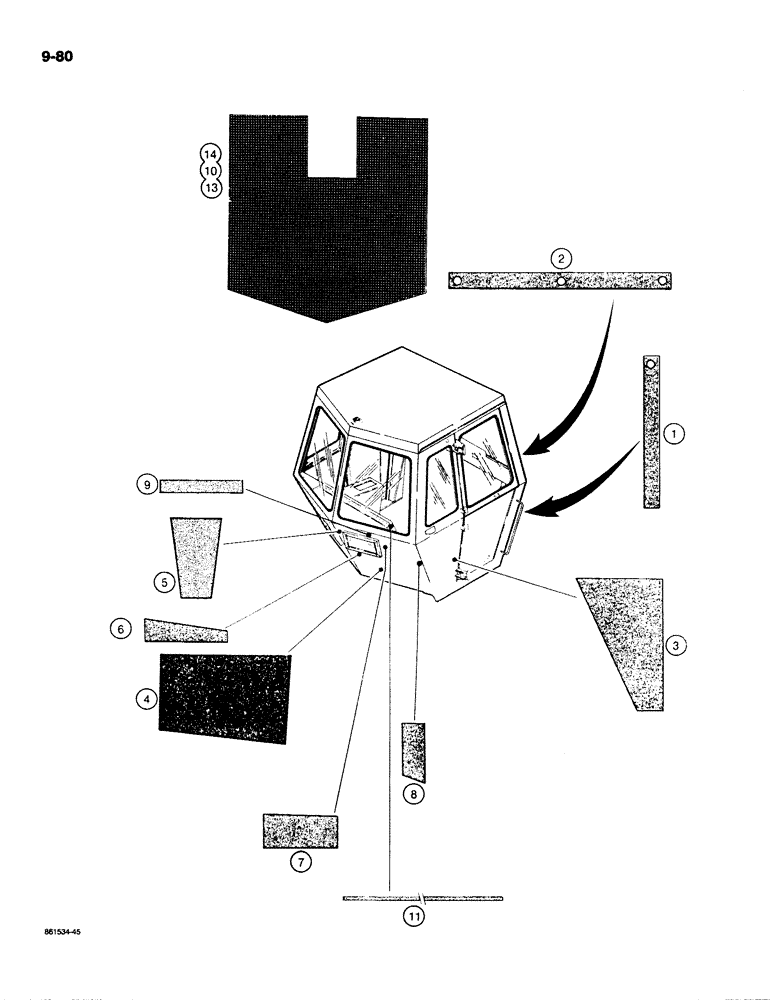

Запчасти Case W18B (9-080) - CAB SEALS AND PADS (09) - CHASSIS/ATTACHMENTS

1

D87127

FOAM

- cowl, if used

2шт.

2

N9062

INSULATOR

SEAL - rubber, cab to tractor, under windshield

1шт.

3

D71526

FOAM

- side panel, rear

2шт.

4

D72726

FOAM

- rear lower

2шт.

5

D78385

FOAM

- center, between filters

1шт.

6

D78386

FOAM

- center, below filters

2шт.

7

D78387

FOAM

- outer sides of filters

2шт.

8

D71534

FOAM

- rear, outer side edges

2шт.

9

D70706

FOAM

- above filters, cut to desired width

2шт.

10

D83140

ROOF

HEADLINER - one-piece, orange, 2" thick, no longer available, order N8644 or N8638, item 13 or 14

1шт.

11

REF

INSTRUCTION

FOAM - strip, under front edge of rear shelf, 43-1/2" (1105 mm) long, cut from L35801 bulk, see below

1шт.

13

N8644

FOAM

HEADLINER - yellow, 1" thick, if used

1шт.

14

N8638

FOAM

HEADLINER - brown, 1" thick, if used

1шт.

15

N9869

ROOF LINING

HEADLINER - brown, molded plastic with foam liner, if used, not shown

1шт.

L35801

FOAM

- bulk, 1/2" (13 mm) x 3/4" (18 mm) x 50 ft. (15.2 m.)

1шт.
