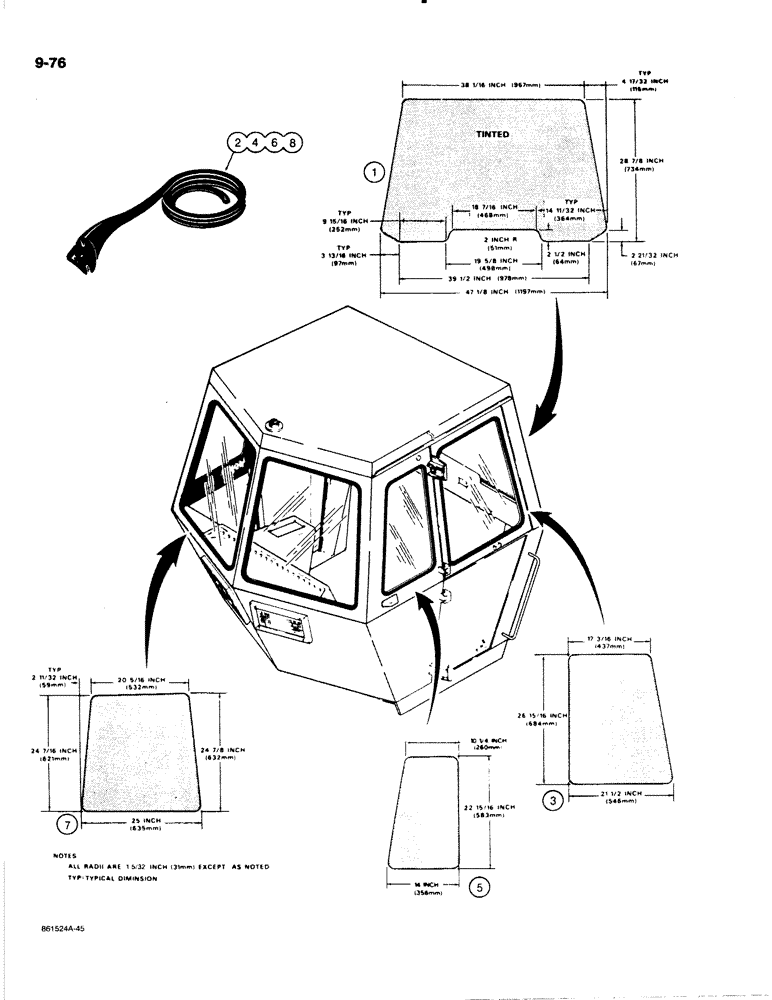

Запчасти Case W18B (9-076) - CAB GLASS AND MOULDINGS, BEFORE CAB SERIAL NUMBER 53700 (09) - CHASSIS/ATTACHMENTS

1

NSS

NOT SOLD SEPARAT

GLASS - windshield

1шт.

2

REF

INSTRUCTION

MOULDING - windshield, 149" (3785 mm) long, cut from L35717 bulk

1шт.

All glass to be obtained from local source and must be 7/32 inch thick laminated safety glass (as described in S.A.E. J674), heat absorbing and with 70 to 75 percent light transmission. Sharp edges due to cutting must be finished to a number 4 or 5 edge (as described in S.A.E. J673a).

1шт.

3

NSS

NOT SOLD SEPARAT

GLASS - door

2шт.

4

REF

INSTRUCTION

MOULDING - door, 96" (2438 mm) long, cut from L35717 bulk

2шт.

All glass to be obtained from local source and must be 7/32 inch thick laminated safety glass (as described in S.A.E. J674), heat absorbing and with 70 to 75 percent light transmission. Sharp edges due to cutting must be finished to a number 4 or 5 edge (as described in S.A.E. J673a).

1шт.

5

NSS

NOT SOLD SEPARAT

GLASS - side panel

2шт.

6

REF

INSTRUCTION

MOULDING - side panel, 73" (1854 mm) long, cut from L35717 bulk

2шт.

All glass to be obtained from local source and must be 7/32 inch thick laminated safety glass (as described in S.A.E. J674), heat absorbing and with 70 to 75 percent light transmission. Sharp edges due to cutting must be finished to a number 4 or 5 edge (as described in S.A.E. J673a).

1шт.

7

NSS

NOT SOLD SEPARAT

GLASS - rear window

2шт.

8

REF

INSTRUCTION

MOULDING - rear window, 98" (2489 mm) long, cut from L35717 bulk

2шт.

All glass to be obtained from local source and must be 7/32 inch thick laminated safety glass (as described in S.A.E. J674), heat absorbing and with 70 to 75 percent light transmission. Sharp edges due to cutting must be finished to a number 4 or 5 edge (as described in S.A.E. J673a).

1шт.

L35717

GASKET

MOULDING - bulk, 50 ft. (15.2 m) roll

1шт.

All glass to be obtained from local source and must be 7/32 inch thick laminated safety glass (as described in S.A.E. J674), heat absorbing and with 70 to 75 percent light transmission. Sharp edges due to cutting must be finished to a number 4 or 5 edge (as described in S.A.E. J673a).

1шт.
