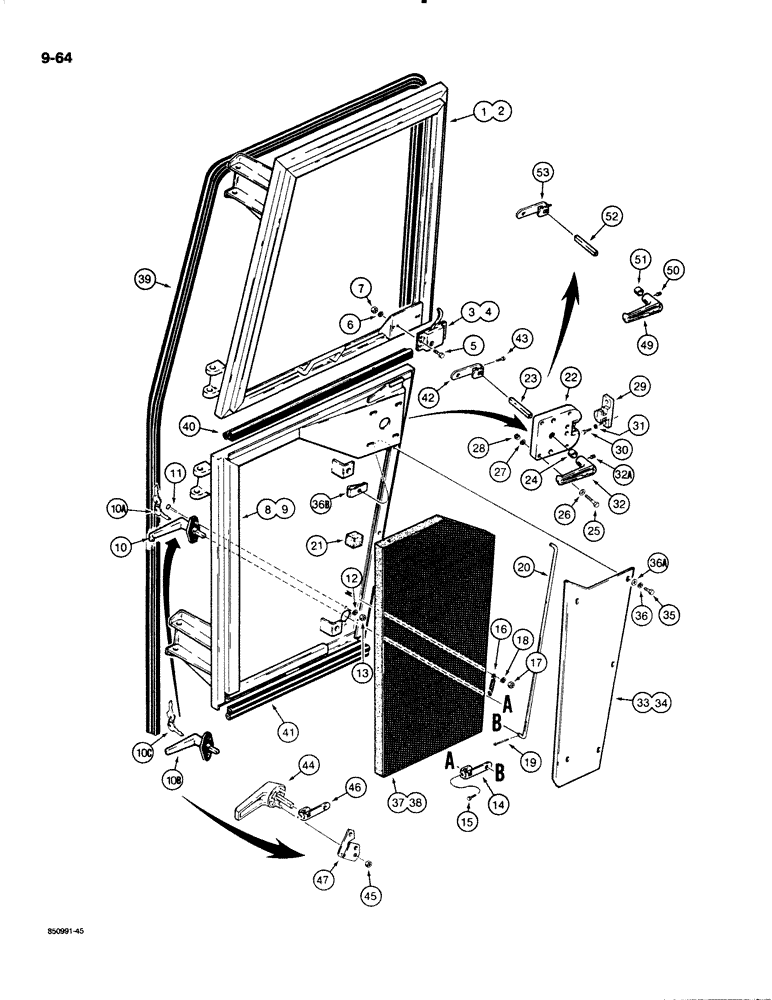

Запчасти Case W18B (9-064) - CAB DOORS, BEFORE CAB SN 44769 (09) - CHASSIS/ATTACHMENTS

1

N6994

DOOR

ASSEMBLY - upper, right-hand, service replacement, includes items 24 through 29 on Figure 9-058 and all items on Figure 9-062

1шт.

2

N6995

DOOR

ASSEMBLY - upper, left-hand, service replacement, includes items 24 through 29 on Figure 9-058 and all items on Figure 9-062

1шт.

3

D71511

LATCH

- upper door, left-hand, shown

1шт.

4

D71512

LATCH

- upper door, right-hand, not shown

1шт.

5

187-582

SELF-TAP SCREW,0.19"-32 x 1/2"

SCREW - hex head, self-tapping, No. 10 - 32 NF x 1/2", plated

4шт.

6

195-513

WASHER,#10

- lock, No. 10, plated

4шт.

7

129-37

NUT,#10-32

4шт.

8

N7007

DOOR

ASSEMBLY - lower, right-hand, service replacement, includes all items on Figure 9-062 and items 29 through 31 below

1шт.

9

N7008

DOOR

ASSEMBLY - lower, left-hand, service replacement, includes all items on Figue 9-062 and items 29 through 31 below

1шт.

10

D71525

HANDLE

ASSEMBLY - outside, locking, mounting holes on 1-3/4" centers, no longer available, order D83139 handle assembly, Includes: Ref. 10 A

2шт.

10a

A42653

SET OF 2 KEYS

KEY - D71525 handle only, set of two

1шт.

10b

D83139

HANDLE

ASSEMBLY - outside, locking, mounting holes on 1-13/16" centers, see repair kit on Figure 9-064, Includes: Ref. 10C

2шт.

10c

D83205

KEY

- D83139 handle only, set of two

1шт.

11

163-23

SCREW,Hex, #10 - 32 x 3/4"

MACHINE SCREW - hex head slotted, No. 10 - 32 NF x 3/4"

4шт.

12

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

13

129-37

NUT,#10-32

4шт.

14

N9750

LATCH

ARM - latch, bottom

2шт.

15

22-48

SELF-TAP SCREW,Hex, 1/4" - 20 x 1/2", Gr 2

BOLT - hex head, self-tapping, 1/4" - 20 NC x 1/2"

2шт.

16

L35748

SPRING

- arm return, if used

2шт.

17

131-47

LOCK NUT,Prev Torque, Hex, #10 - 32, Gr B

NUT - hex, self-locking, No. 10 - 32 NF, if used

2шт.

18

92-3

LOCK WASHER,#10

WASHER, LOCK, , If used #10

2шт.

19

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4", used with D71516 rod, Ref. 20

4шт.

20

D71516

ROD

- latch pull, may or may not require cotter pins, Ref. 19

2шт.

21

REF

INSTRUCTION

STRIP - foam, 1 inch (25 mm) long, if used, cut from L35741 bulk, see below

2шт.

22

F89824

LATCH

- door

2шт.

23

D72728

SPLINE

SHAFT - door latch

2шт.

24

D72729

BUSHING

SPACER - door latch

2шт.

25

113-5

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

Hex, 1/4"- 20 x 1 1/2", G5

8шт.

26

195-102

WASHER,1/4"

- flat, 1/4"

8шт.

27

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

8шт.

28

25-104

NUT,1/4"-20, G5

8шт.

29

F63580

PLATE

STRIKER - door

2шт.

30

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

31

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

32

F63925

HANDLE

- inside, includes set screw, see repair kit below

2шт.

32a

176-48

SET SCREW,5/16"-18 x 1 1/4", Slotted

- slotted, cone point, 5/16" - 18 NC x 1/4"

1шт.

L35741

FOAM

- bulk, 50 ft. (15.2 m) long

1шт.

33

D87159

PANEL

- door cover, right-hand

1шт.

34

D87160

PANEL

- door cover, left-hand

1шт.

35

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

10шт.

36

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

10шт.

36a

195-102

WASHER,1/4"

- flat, 1/4"

10шт.

36b

131-646

SPRING NUT,Tinn, U, 1/4"-20

- U-type

10шт.

37

D71514

FOAM

- lower door, right-hand

1шт.

38

D71515

INSULATOR

FOAM - lower door, left-hand

1шт.

39

REF

INSTRUCTION

SEAL - door frame, 136" (3454 mm) long, cut from F43086 bulk seal, see below

2шт.

40

REF

INSTRUCTION

SEAL - top of lower door, 24" (610 mm) long, cut from F43086 bulk seal, see below

2шт.

41

REF

INSTRUCTION

SEAL - bottom of lower door, 17" (432 mm) long, cut from F43086 bulk seal, see below

2шт.

42

N9750

LATCH

ARM - latch, top

2шт.

43

22-48

SELF-TAP SCREW,Hex, 1/4" - 20 x 1/2", Gr 2

BOLT - hex head, self-tapping, 1/4" - 20 NC x 1/2"

2шт.

L36299

KIT

- repair, outside handle, left-hand door, Includes: Ref. 44 - 48

1шт.

L36300

KIT

- repair, outside handle, right-hand door, not shown, Includes: Ref. 44 - 48

1шт.

44

F66157

HANDLE

- outside, cut shaft to fit as needed, uses ignition keys

1шт.

45

86632551

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

2шт.

46

N9879

ARM

- latch, discard set screw included with arm

1шт.

47

L117073

BRACKET

- support, left-hand door

1шт.

48

L117072

BRACKET

- support, right-hand door, not shown

1шт.

L36298

KIT

- repair, inside handle, right-hand or left-hand door, Includes: Ref. 49 - 55

1шт.

49

F63925

HANDLE

- inside, Includes: Ref. 50

1шт.

50

176-48

SET SCREW,5/16"-18 x 1 1/4", Slotted

- slotted, cone point, 5/16" - 18 NC x 1/4"

1шт.

51

D72729

BUSHING

SPACER - door latch, used before cab SN 44769

1шт.

52

L117190

AXLE PIN

SHAFT - door handle, short, used before cab SN 44769

1шт.

52

L117185

PIN

SHAFT - door handle, long, used on cab SN 44769 through 53699

1шт.

53

L117184

ARM

- latch

1шт.

54

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

Not shown Hex, 1/4"-20 x 3/4", G5, Full Thd

1шт.

55

195-529

WASHER,7/16", SAE

- flat, 7/16", plated, use as shim, not shown

1шт.

F43086

SEAL

- bulk roll, 100 ft (30.48 m) long

1шт.
