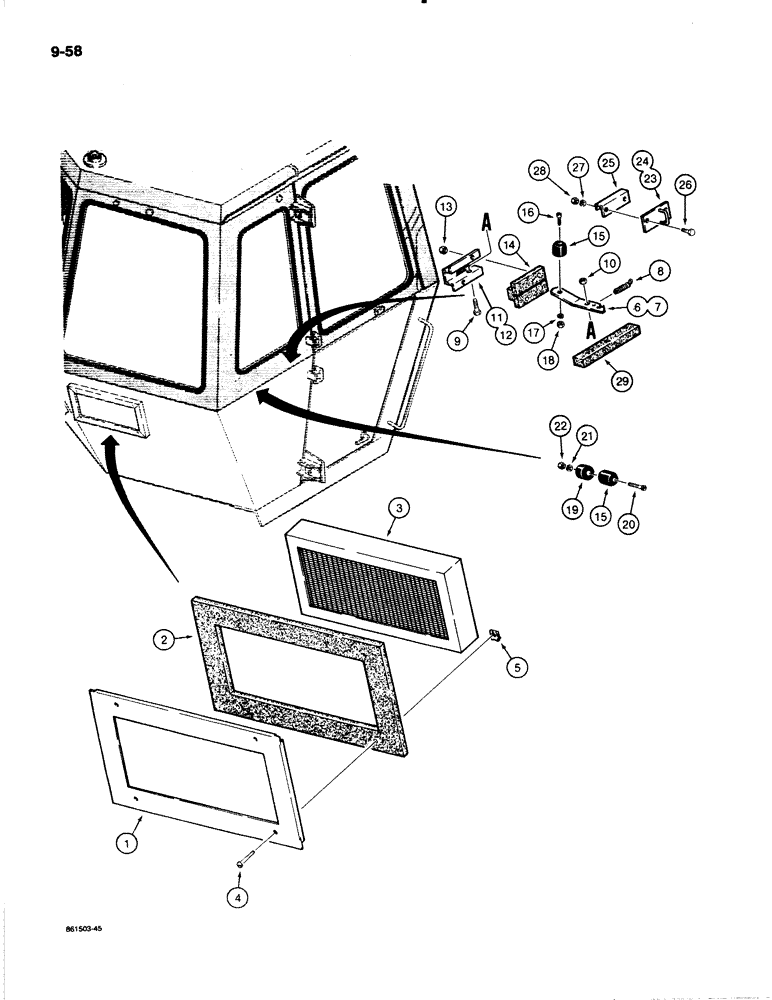

Запчасти Case W18B (9-058) - CAB FILTER AND DOOR HOLDER LATCHES, BEFORE CAB SN. 53700 (09) - CHASSIS/ATTACHMENTS

N9875

COVER

- filter, Includes: Ref. 1 & 2

2шт.

1

D78394

COVER

FRAME - filter

1шт.

2

D78395

SEAL

SEAL - frame

1шт.

3

D80562

AIR CLEANER

ELEMENT - filter

2шт.

4

173-231

SCREW,Sl Rnd Hd, 5/16" - 18 x 1 1/2"

MACHINE SCREW - round head, 5/16" - 18 NC x 1-1/2", plated

8шт.

5

131-639

SPRING NUT,U, Rtnr, 5/16" - 18

- U-type, 5/16" - 18 NC

8шт.

6

D76957

LATCH

- door holder, on frame, right-hand

1шт.

7

D76956

LATCH

- door holder, on frame, left-hand, not shown

1шт.

8

L35748

SPRING

- door latch

2шт.

9

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

10

131-203

LOCK NUT,3/8"-16, GB, LH

NUT - hex, self-locking, 3/8" - 16 NC, plated

2шт.

11

D76959

BRACKET

- latch retaining, inside frame, right-hand

1шт.

12

D76958

BRACKET

- latch retaining, inside frame, left-hand, not shown

1шт.

13

86625061

NUT,1/4"-20, GB

NUT - hex, self-locking, 1/4" - 20 NC, plated

4шт.

14

D78396

SEAL

- foam, door holder latch

2шт.

15

L35871

FENDER

BUMPER - rubber, rounded

4шт.

16

182-557

SCREW,Cross Pan Hd, #10-32 x 3/4"

MACHINE SCREW - pan Phillips head, No. 10 - 32 NF x 3/4", plated

2шт.

17

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

18

129-37

NUT,#10-32

2шт.

19

D78393

CUSHION

BUMPER - rubber

2шт.

20

182-151

SCREW,Sl Pan Hd, #10 - 32 x 1 1/4"

MACHINE SCREW - pan head slotted, No. 10 - 32 NF x 1-1/4"

2шт.

21

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

22

129-37

NUT,#10-32

2шт.

23

NSS

NOT SOLD SEPARAT

LATCH - on door, right-hand, if used

1шт.

Sims Manufacturing P/N 1300-1632. Order directly from Sims.

1шт.

24

NSS

NOT SOLD SEPARAT

LATCH - on door, left-hand, if used, not shown

1шт.

Sims Manufacturing P/N 1300-1702. Order directly from Sims.

1шт.

25

NSS

NOT SOLD SEPARAT

BRACKET - on door, latch retaining, if used

2шт.

Sims Manufacturing P/N 1400-9665. Order directly from Sims.

1шт.

26

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

If used Hex, 1/4"-20 x 1/2", G5, Full Thd

4шт.

27

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, , If used 1/4"

4шт.

28

129-104

NUT,7/16"-14, G5

- hex, 1/4" - 20 NC, plated, if used

4шт.

29

D78389

INSULATOR

SEAL - below interior ventilation panel, if used

2шт.
