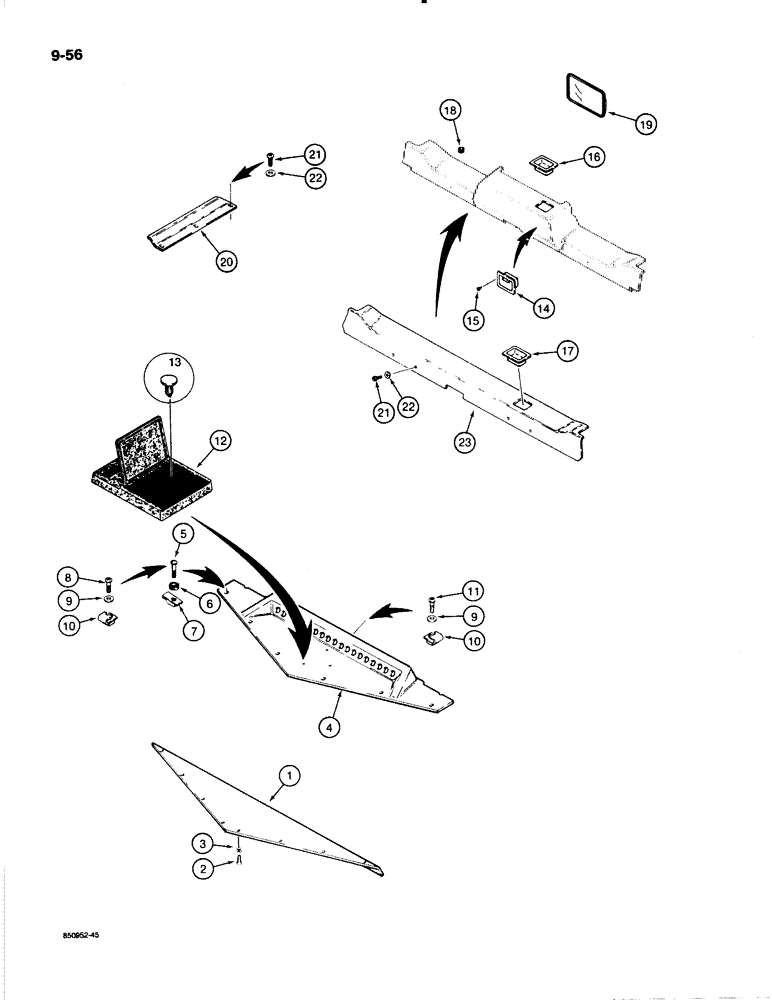

Запчасти Case W18B (9-056) - CAB CLOSURE PANELS AND ACCESSORIES (09) - CHASSIS/ATTACHMENTS

1

D78392

PANEL

- floor plate, with 6 mounting slots, if used

1шт.

2

187-582

SELF-TAP SCREW,0.19"-32 x 1/2"

SCREW - hex head, self-tapping, No. 10 - 32 NF x 1/2", plated

6-8шт.

3

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

6-8шт.

4

L77017

PANEL

- rear shelf, black, if used

1шт.

4

L111761

PANEL

- rear shelf, brown, if used

1шт.

5

187-1923

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

SCREW - oval Phillips head, self-tapping, No. 10 - 16 NC x 3/4", black, if used

6шт.

6

F43576

WASHER

- special, black, nylon, if used

6шт.

7

131-642

SPRING NUT,Tinn, U, #10

- U-type, No. 10, if used

6шт.

8

182-559

SCREW,Cross Pan Hd, #10-24 x 3/4"

MACHINE SCREW - pan Phillips head, No. 10 - 24 NC x 3/4", plated, if used

2шт.

9

195-516

WASHER,#12

- flat, 1/4" x 9/16", plated, if used

3шт.

10

131-619

SPRING NUT,J, #10 - 24, 0.031" Thk

- J-type, No. 10 - 24 NC, if used

3шт.

11

182-578

SCREW,Slotted Pan Hd, #10-24 x 1"

MACHINE SCREW - pan Phillips head, No. 10 - 24 NC x 1", plated, if used

1шт.

12

A177376

BOX

- operators manual

1шт.

13

A162364

FASTENER

- manual box

3шт.

14

A165449

ASH TRAY

ASHTRAY - attach to front of panel with screws, if used

1шт.

15

187-1040

SELF-TAP SCREW,Cross Pan Hd, #6 x 3/8"

SCREW - round head, self-tapping, No. 6 - 32 NC x 3/8", plated, if used

2шт.

16

D83138

ASH TRAY

ASHTRAY - self-retaining, top of formed panel, if used

1шт.

17

N9895

ASH TRAY

ASHTRAY - self-retaining, top of flat panel, if used

1шт.

18

A75994

GROMMET,5/16" ID x 3/4" Groove Dia, Str Cut

- 1/4" x 5/16", if used

1шт.

19

L74714

MIRROR

- rear view, includes hardware

1шт.

20

N9857

PLATE

- step, left-hand door, if used

1шт.

21

182-559

SCREW,Cross Pan Hd, #10-24 x 3/4"

MACHINE SCREW - pan Phillips head, No. 10 - 24 NC x 3/4", plated

5шт.

22

195-516

WASHER,#12

- flat, 1/4" x 9/16", plated

5шт.

23

N9872

COVER ASSY

COVER - front, brown, for another cover see Figure 4-100

1шт.

23

N9872

COVER ASSY

COVER - front, cab SN 44769 and, brown, for another cover see Figure 4-100, W20C 9155766 to

1шт.

N9430

UNIT

knob and element poirtion.

1шт.

N9429

ELEMENT

UNIT heater, found mounted in dash

1шт.
