Запчасти Case W18B (2-20) - CAMSHAFT, 504BD AND 504BDT ENGINE (02) - ENGINE

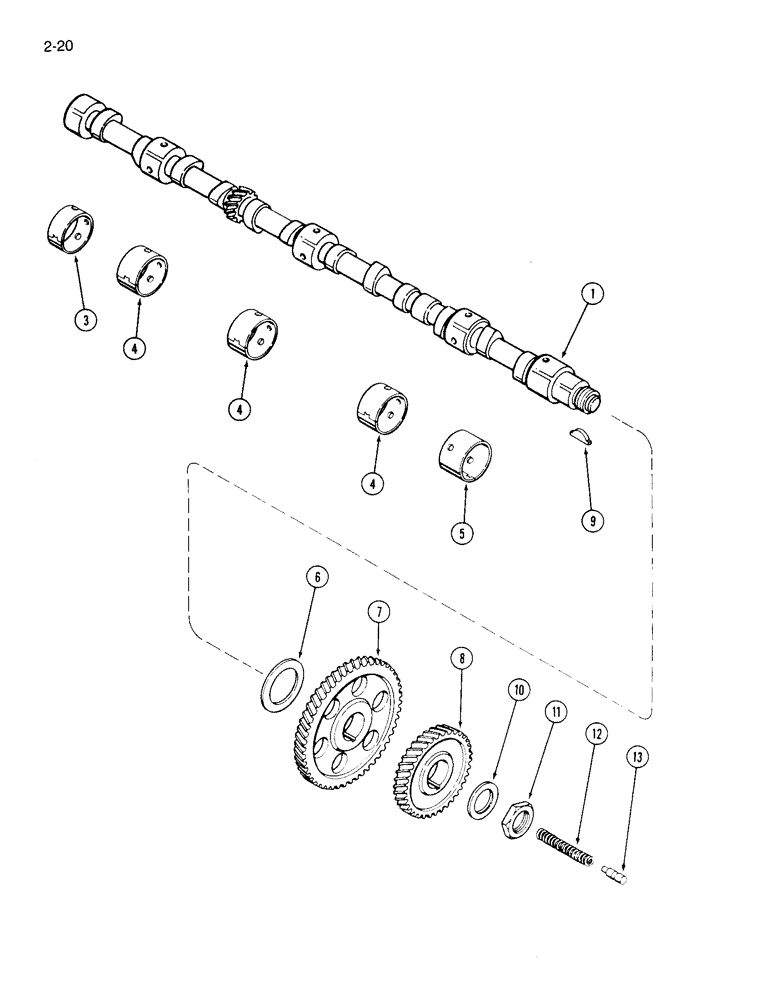

Схема запчастей Case W18B - (2-20) - CAMSHAFT, 504BD AND 504BDT ENGINE (02) - ENGINE

Артикул

Название

Примечание

Количество

1

A66743

CAMSHAFT

- engine

1шт.

3

A23487

BUSHING,44.35mm ID x 60.3mm OD x 29.62mm L

- rear, 1-5/32 inch wide

1шт.

1.1662 / 1.1462" wide

1шт.

4

A21019

BUSHING,57.05mm ID x 60.33mm OD x 36.63mm L

- center, 1-7/16 inch wide

3шт.

1.4475 / 1.4275" wide

1шт.

5

A21018

BUSHING,57.11mm ID x 60.33mm OD x 42.32mm L

- front, 1-5/8 inch wide

1шт.

1.666 / 1.646" wide

1шт.

6

A21017

WASHER

- thrust

1шт.

7

A58592

GEAR

- camshaft

1шт.

8

A58593

GEAR

- idler drive

1шт.

9

126-227

WOODRUFF KEY,Hi-Pro, 1 1/4" Dia x 5/16" x 1"

KEY - gear

1шт.

10

A31038

THRUST WASHER

- lock, camshaft nut

1шт.

11

A58595

NUT

- camshaft gear

1шт.

12

CASA27853

SPRING

- plunger

1шт.

13

A27852

PLUNGER

- thrust

1шт.

Выбрано товаров: 15
