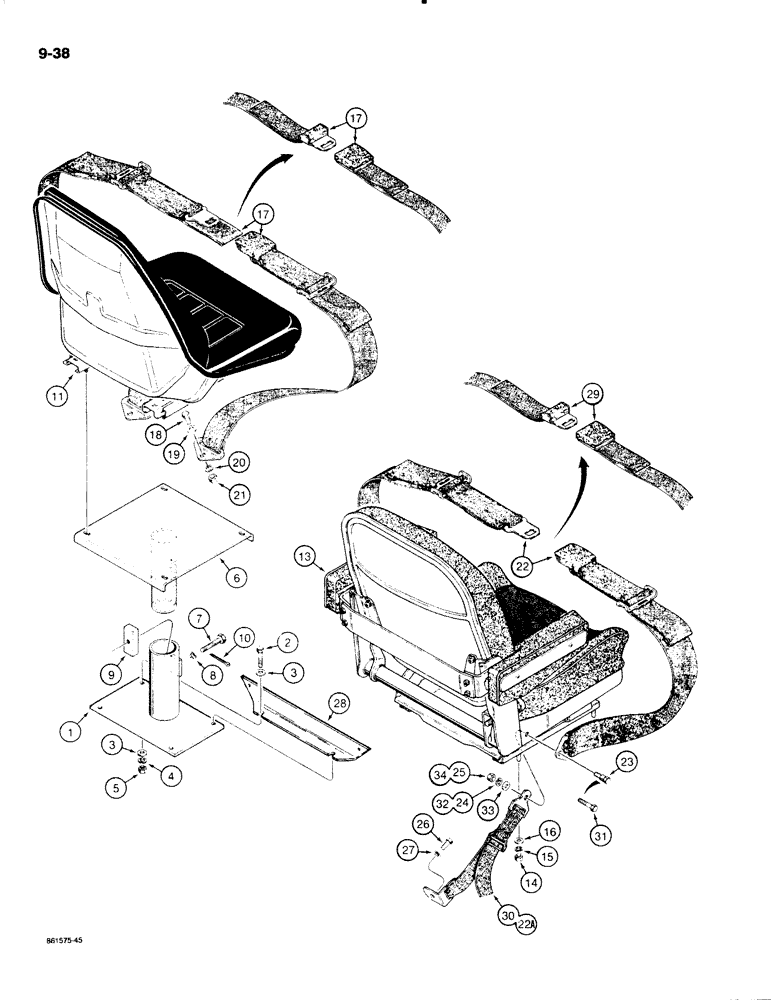

Запчасти Case W18B (9-038) - SEAT AND MOUNTING PARTS (09) - CHASSIS/ATTACHMENTS

1

L59942

BRACKET

SUPPORT - seat, lower

1шт.

2

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

4шт.

3

95-6

WASHER,3/8"

- flat, 3/8"

8шт.

4

80680

LOCK WASHER,3/8 0.381 CST ZND

WASHER, LOCK, 3/8"

4шт.

5

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

6

L59946

BRACKET

SUPPORT - seat, upper

1шт.

7

113-626

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

1шт.

8

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

9

L59950

NUT

- special

1шт.

10

132-310

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), , If used 1/8" x 1"

1шт.

11

L109872

SEAT

ASSEMBLY - black, side adjustment lever, with 6" slide, if used, parts list Figure 9-042

1шт.

11

L111748

SEAT

ASSEMBLY - black, side adjustment lever, with 5" slide, no longer available, order L108783 seat, parts list Figure 9-042

1шт.

11

L108783

SEAT

ASSEMBLY - brown, side adjustment lever, with 5" slide, parts list Figure 9-042

1шт.

13

L73447

SEAT

ASSEMBLY - suspension, black, canopy models, if used, parts list Figure 9-044

1шт.

13

L112057

SEAT ASSY.

SEAT ASSEMBLY - suspension, brown, canopy models, if used, parts list Figure 9-044

1шт.

13

L73448

SEAT ASSY.

SEAT ASSEMBLY - suspension, black, cab models, if used, parts list Figure 9-044

1шт.

13

L112058

SEAT ASSY.

SEAT ASSEMBLY - suspension, brown, cab models, if used, parts list Figure 9-044

1шт.

14

9635082

NUT,5/16" - 18, Gr 5

4шт.

15

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

16

195-103

WASHER,5/16"

- flat, , plated 5/16"

4шт.

17

D83760

SAFETY BELT

SEAT BELT - 3" (76 mm) wide, used with item 11, if used

1шт.

17

L117001

SAFETY BELT ,1.80" W

Used with item 11, If used 1.80" W

1шт.

18

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

19

95-8

WASHER,1/2"

flat, if used 1/2"

2шт.

19a

195-2061

WASHER,5/8" x 1 7/8" x .134"

- flat, 9/16 x 1-7/8 x 1/8 inch, if used, not shown

2шт.

20

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

21

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

L70502

SAFETY BELT

SAFETY BELT, 3" (76 mm) wide, Used with item 13 suspension seat, If used, Includes Ref. 22 & 22A

1шт.

22

NSS

NOT SOLD SEPARAT

SEAT BELT - operator retaining, 3" (76 mm) wide

1шт.

22a

NSS

NOT SOLD SEPARAT

BELT - tether, Serial Range: seat-support

2шт.

23

A32042

STEP BOLT

BOLT - shoulder, 7/16" - 14 NC x 1-1/2", grade 8, used with 3 inch wide seat belt

2шт.

24

192-22

LOCK WASHER,7/16"

WASHER, LOCK, , Used with 3 inch wide seat belt 7/16"

2шт.

25

129-104

NUT,7/16"-14, G5

Used with 3 inch wide seat belt 7/16"-14, G5

2шт.

26

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

27

92-8

LOCK WASHER,1/2"

2шт.

28

L71330

RETAINER

ANGLE - stiffener

1шт.

29

L117002

SAFETY BELT

SAFETY BELT, 2" (51 mm) wide, Used with item 13 suspension seat, If used

1шт.

30

L78471

SAFETY BELT

SAFETY BELT, Seat to support, Used with 2 inch wide seat belt

2шт.

31

F42236

STEP BOLT

BOLT - shoulder, 7/16 NF x 1-1/4 inch, used with 2 inch wide seat belt

2шт.

32

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, , Used with 2 inch wide seat belt 7/16"

2шт.

33

495-21050

WASHER,7/16"

- flat, 1/2 x 1-1/4 x 5/64 inch, used with 2 inch wide seat belt

2шт.

34

425-117

NUT,7/16"-20, G5

- hex, 7/16 inch NF, used with 2 inch wide seat belt

2шт.
