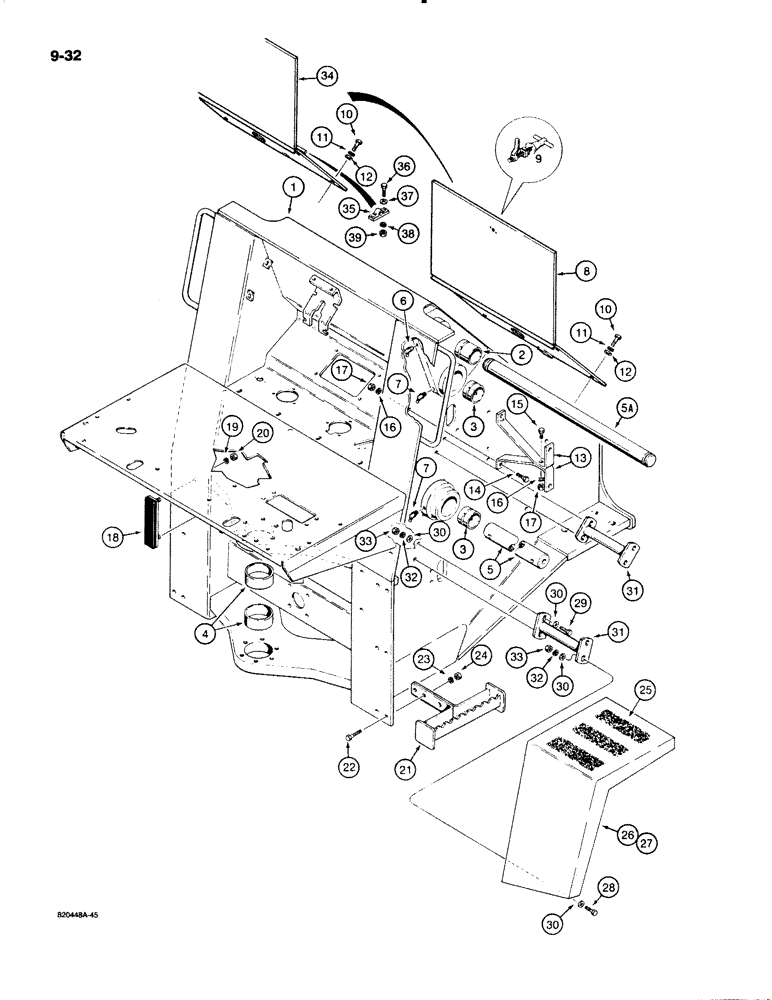

Запчасти Case W18B (9-032) - FRONT FRAME AND FENDERS (09) - CHASSIS/ATTACHMENTS

L116144

CHASSIS

FRAME ASSEMBLY - front chassis, Includes: Ref. 1 - 7

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME - front chassis

1шт.

2

L117466

SPACER

BUSHING - bucket cylinder pivot

2шт.

3

L117465

BUSHING,76.45mm ID x 88.19mm OD x 66.04mm L

- lift cylinder and lift frame pivot

4шт.

4

L17466

BUSHING,100.05mm ID x 112.82mm OD x 37.4mm L

- frame pivot

2шт.

5

L47564

SHAFT

- pivot, lift cylinder

1шт.

5a

L47565

SHAFT

- bucket cylinder pivot

1шт.

6

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

7

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

GREASE FITTING - 45 degree, 1/8" NPT

4шт.

8

L115642

DOOR

COVER - front frame, no longer available, order item 34 L116876 cover and L36296 kit below

1шт.

9

L48438

HANDLE

ASSEMBLY - front cover

1шт.

10

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1-1/2"

4шт.

11

92-6

LOCK WASHER,3/8"

4шт.

12

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

- flat, 3/8"

2-4шт.

13

L47787

SUPPORT

BRACKET - lamp mounting

4шт.

14

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1-1/2"

4шт.

15

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

16

92-6

LOCK WASHER,3/8"

6шт.

17

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

6шт.

18

L47997

ELASTIC STOP

BUMPER - front to rear frame

2шт.

19

92-6

LOCK WASHER,3/8"

4шт.

20

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

21

L77602

STEP

- access

4шт.

22

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

8шт.

23

92-8

LOCK WASHER,1/2"

8шт.

24

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

8шт.

25

D55216

PAD,2" x 9"

PAD - non-skid

6шт.

26

L48237

FENDER

- front, right-hand

1шт.

27

L48238

FENDER

- front, left-hand, not shown

1шт.

28

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1-1/2"

8шт.

29

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

8шт.

30

95-6

WASHER,3/8"

- flat, 3/8"

32шт.

31

L74731

SUPPORT

- front fender

4шт.

32

92-6

LOCK WASHER,3/8"

16шт.

33

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

16шт.

34

L116876

DOOR

COVER - front frame

1шт.

35

L116973

BRACKET

- hinge

2шт.

Part of hydraulic access door kit P/N L36296

1шт.

36

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1-1/2"

4шт.

Part of hydraulic access door kit P/N L36296

1шт.

37

95-6

WASHER,3/8"

- flat, 3/8"

4шт.

Part of hydraulic access door kit P/N L36296

1шт.

38

92-6

LOCK WASHER,3/8"

4шт.

Part of hydraulic access door kit P/N L36296

1шт.

39

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

Part of hydraulic access door kit P/N L36296

1шт.

L36296

BRACKET

KIT - hydraulic access door, Includes: Refs. 35 - 39

1шт.
