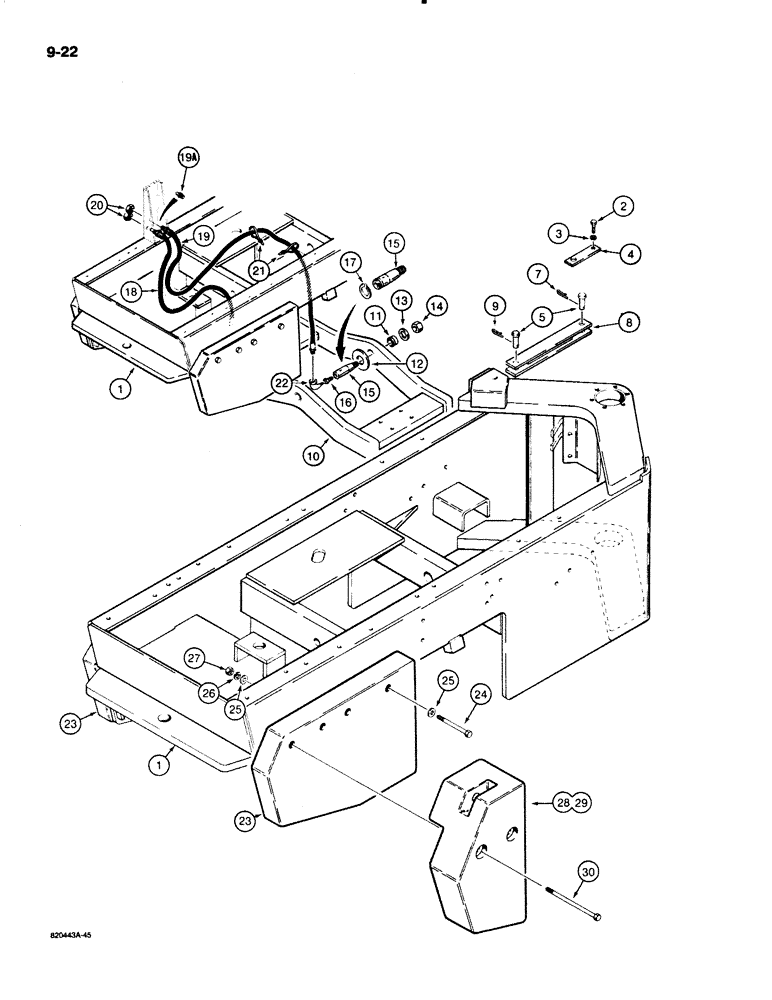

Запчасти Case W18B (9-022) - REAR FRAME, TRUNNION, AND LUBRICATION LINES (09) - CHASSIS/ATTACHMENTS

1

L117531

CHASSIS

REAR FRAME - weldment

1шт.

2

26-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

- hex head, 5/8" - 11 NC x 2", grade 8

1шт.

3

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

4

L47536

BRACKET

LINK -, Serial Range: spindle-link

1шт.

5

L113464

PIN,19.05mm OD x 57.15mm L

CLEVIS PIN - link retaining

2шт.

7

136-164

COTTER PIN,Int, 5/16" x .120"

HAIR PIN - clevis pin, link retaining, front

1шт.

8

L47533

BAR

LINK - front to rear frame

1шт.

9

136-164

COTTER PIN,Int, 5/16" x .120"

HAIR PIN - clevis pin, link retaining, rear

1шт.

L58933

TRUNNION

ASSEMBLY - rear frame, Includes: Ref. 10 & 11

1шт.

10

NSS

NOT SOLD SEPARAT

TRUNNION - rear frame

1шт.

11

L71372

BUSHING,51.03mm ID x 63.65mm OD x 44.45mm L

- trunnion

2шт.

12

L60776

WASHER

SHIM - 1/4" (6 mm) thick

1шт.

12

L60777

WASHER

SHIM - 1/8" (3 mm) thick

1шт.

12

L60778

WASHER,51.3mm ID x 114.3mm OD x 4.8mm Thk

SHIM - 3/16" (5 mm) thick

1шт.

13

L47224

WASHER

- special

2шт.

14

131-43

LOCK NUT,1 1/2"-12

NUT - hex, self-locking, 1-1/2" - 12 NF

2шт.

15

L73076

PIVOT

PIN - trunnion pivot

2шт.

16

L52499

BOLT

ADAPTER - special

2шт.

17

D26919

SNAP RING,#200, Ext

Ring, Snap, , pin #200, Ext

2шт.

18

L54693

HOSE

- grease, 27" (686 mm) long

1шт.

19

L54694

HOSE,4.8mm ID x 1041mm L

- grease, 41" (1041 mm) long, no longer available, order R45862 hose and 219-8 grease fitting

1шт.

19

R45862

HOSE,3.17mm ID x 1041.4mm L, SAE 100R7

- grease, 41" (1041 mm) long

1шт.

19a

219-8

LUBE NIPPLE,1/4" - 28 NPTF

GREASE FITTING - straight, 1/8" NPT

1шт.

20

F53473

LOCK NUT,1/8-27 NPSM

- lock

2шт.

21

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

2шт.

22

219-402

ADAPTER,90 Degree, 1/4"-1/8 NPTF

STREET ELBOW - 90 degree

2шт.

23

L118328

WEIGHT

COUNTERWEIGHT - rear frame

2шт.

24

413-1696

BOLT,Hex, 1" - 8 x 6", Gr 5

- hex, 1 NC x 6 inch, counterweight

6шт.

25

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

- flat, 1", counterweight

12шт.

26

192-31

LOCK WASHER,1"

WASHER, LOCK, , Counterweight 1"

6шт.

27

129-110

NUT,1"-8, G5

Counterweight 1"-8, G5

6шт.

28

L117528

WEIGHT

COUNTERWEIGHT - right-hand, optional

1шт.

29

L117529

WEIGHT

COUNTERWEIGHT - left-hand, optional

1шт.

30

13-16176

BOLT,Hex, 1" - 8 x 11", Gr 5

- hex head, 1" - 8 NC x 11", use with Ref. 28 & 29 only, counterweight

4шт.
