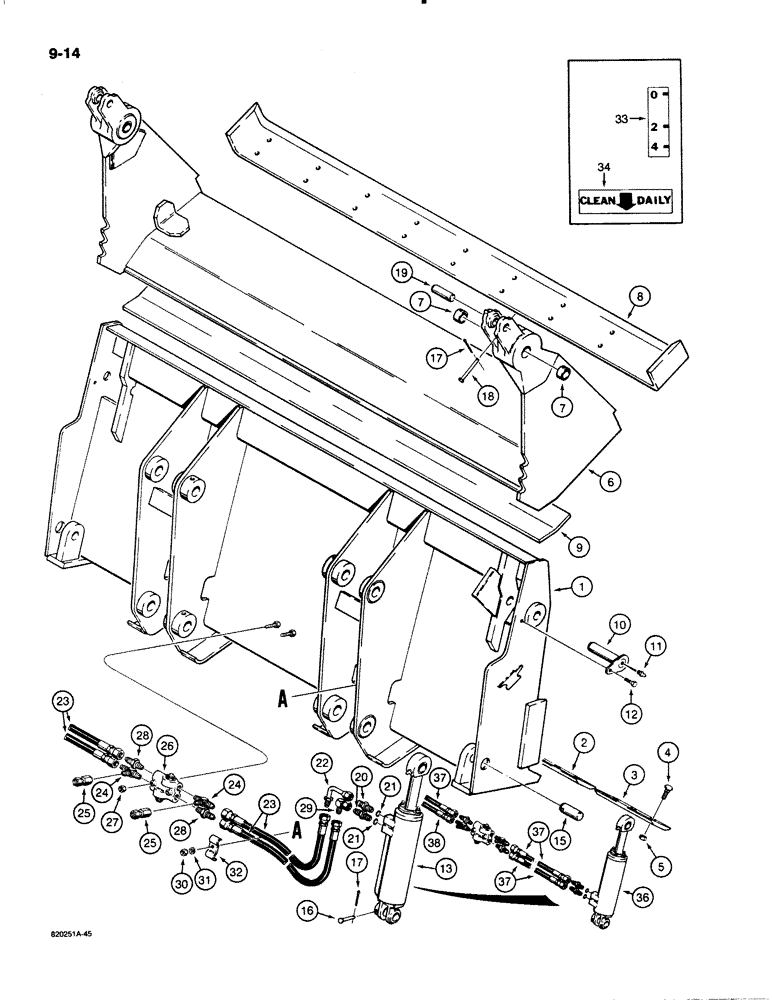

Запчасти Case W18B (9-014) - L107698 AND L115659 CLAM BUCKETS (09) - CHASSIS/ATTACHMENTS

L107698

BUCKET ASSEMBLY - 1-3/4 cubic yard (1.34 cubic metre) includes L107652 bucket with spill guard, machinery item, order from Machinery Price List, no longer available, order L115660 bucket assembly

1шт.

L115660

BUCKET ASSEMBLY - 1-3/4 cubic yard (1.34 cubic metre) includes L115659 bucket with spill guard, machinery item, order from Machinery price list

1шт.

L107652

BUCKET ASSEMBLY - 1-1/2 cubic yard (1.15 cubic metre) without spill guard, machinery item, order from Machinery Price List, no longer available, order L115659 bucket assembly, Includes: Ref. 1 - 38

1шт.

L115659

BUCKET ASSEMBLY - 1-1/2 cubic yard (1.15 cubic metre) without spill guard, machinery item, order from Machinery Price List, Includes: Ref. 1 - 38

1шт.

N7654

MOLDBOARD

BLADE ASSEMBLY - bucket, Includes: Ref. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

BLADE - bucket

1шт.

2

A17654

EDGE

CUTTING EDGE - center

1шт.

3

N6743

EDGE

CUTTING EDGE - end

2шт.

4

19-1232

CARRIAGE BOLT,#3, 3/4" - 10 x 2", Gr 5

PLOW BOLT - 3/4" - 10 NC x 2"

18шт.

5

25-1012

NUT,3/4"-10, G5

18шт.

N7656

SHELL

CLAM ASSEMBLY - bucket, Includes: Ref. 6 - 9

1шт.

6

NSS

NOT SOLD SEPARAT

CLAM - bucket

1шт.

7

A18662

BUSHING

- hinge

4шт.

8

A17657

EDGE

CUTTING EDGE - front

1шт.

9

N7657

EDGE

CUTTING EDGE - rear

1шт.

10

N7658

PIN

ASSEMBLY - hinge, Includes: Ref. 11

2шт.

11

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

1шт.

12

113-433

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5, Full Thd

2шт.

13

REF

INSTRUCTION

CYLINDER - hydraulic, clam, right-hand, for correct assembly and components, see Figures 8-58 and 8-62, used on L107652 bucket

1шт.

14

REF

INSTRUCTION

CYLINDER - hydraulic, clam, left-hand, for correct assembly and components, see Figures 8-58 through 8-62, not shown, used on L107652 bucket

1шт.

15

S46134

PIN,37.95mm OD x 98.55mm L

- cylinder, closed end

2шт.

16

S61971

CLEVIS PIN,15.88mm OD x 80.16mm L

- used with S46134 pin

2шт.

17

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

4шт.

18

S10786

CLEVIS PIN

PIN, CLEVIS - 5/8" x 4-3/4", Rod end

2шт.

19

S18633

AXLE PIN,38.13mm OD x 102.36mm L

PIN - cylinder, rod end

2шт.

20

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

CONNECTOR, HYD., , straight 7/8"-14, 37º x 3/4"-16, O-Ring

4шт.

22

218-999

ADAPTER,90 Degree, 37 Degree Fl, 7/8"-14 Male x 7/8"-14 Fem

ELBOW - clam circuit

2шт.

23

S8581

HOSE ASSY.

HOSE - clam cylinder, used on L107652 bucket

4шт.

24

N7660

TEE

- male

2шт.

25

N7659

FITTING

- swivel

2шт.

26

N7655

VALVE

RELIEF VALVE - clam bucket, parts list Figure 8-68

1шт.

27

9635082

NUT,5/16" - 18, Gr 5

2шт.

28

218-445

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

ADAPTER - straight

2шт.

29

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

Clam circuit 90º, 7/8"-14, 37º x 7/8"-14, 37º Fem Sw

2шт.

30

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

31

92-6

LOCK WASHER,3/8"

2шт.

32

D44073

CLAMP

- hose

2шт.

33

S81109

DECAL

- clam opening

1шт.

34

S45226

DECAL

- clean daily

2шт.

35

REF

INSTRUCTION

SPILLGUARD - L107698 or L115660 bucket, weld on, not shown, order complete bucket assembly on Figure 9-014

1шт.

36

N9149

CYLINDER ASSY.

CYLINDER - hydraulic, clam, parts list page 8-65, used on L115659 bucket

2шт.

37

N9159

HOSE

- 36-3/4" (921 mm) long, clam cylinder, used on L115659 bucket

3шт.

38

N9185

HOSE,972.00 mm

- clam cylinder, used on L115659 bucket 972.00 mm

1шт.

21

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, adapter

1шт.
