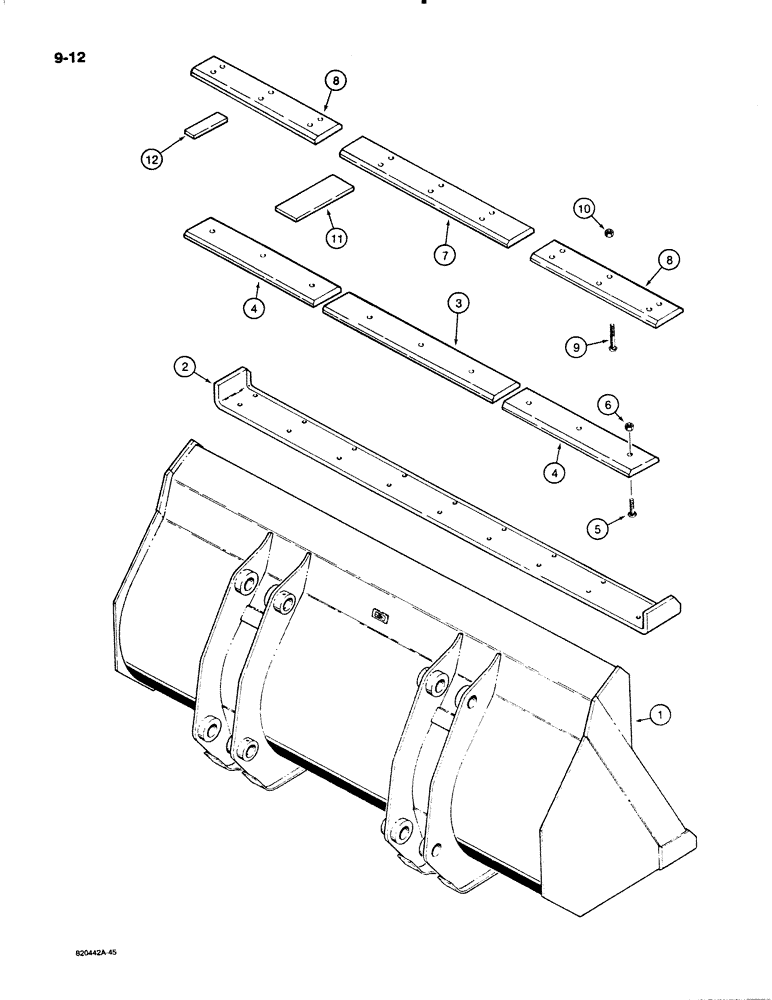

Запчасти Case W18B (9-012[A]) - LOADER BUCKET - 1-3/4 CUBIC YARD (1.34 CUBIC METER) (09) - CHASSIS/ATTACHMENTS

L72733

BUCKET

ASSEMBLY - loader, 94" (2387 mm) wide, machinery item, order from Machinery Price List

1шт.

L113254

BUCKET ASSEMBLY - loader, 94" (2387 mm) wide, machinery item, order from Machinery Price List

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET - loader

1шт.

2

L112524

EDGE, CUTTING

CUTTING EDGE - bucket

1шт.

L36249

KIT - bolt on cutting edge, service option for 94" (2387 mm) wide buckets with weld on cutting edge, order component parts, Includes: Ref. 3 - 6

1шт.

3

L111769

EDGE

CUTTING EDGE - center, bolt on, 37-1/8" long, 3 holes

1шт.

4

L111770

EDGE

CUTTING EDGE - end, bolt on, 28-5/8" long, 3 holes

2шт.

5

118-427

PLOW BOLT,5/8"-11 x 2 3/4", G8

- 5/8" - 11 NC x 2-3/4", grade 8, bolt on cutting edge kit

9шт.

6

129-563

NUT,5/8"-11, G8

- hex, 5/8" - 11 NC, grade 8, bolt on cutting edge kit

9шт.

L36295

KIT - bolt on cutting edge, service option for 94" (2387 mm) wide buckets with weld on cutting edge, order component parts, Includes: Ref. 7 - 12

1шт.

7

L115720

EDGE

CUTTING EDGE - center, bolt on, 37" long, 6 holes

1шт.

8

L115721

EDGE

CUTTING EDGE - end, bolt on, 28.60" long, 6 holes

2шт.

9

118-427

PLOW BOLT,5/8"-11 x 2 3/4", G8

- 5/8" - 11 NC x 2-3/4", grade 8, bolt on cutting edge kit

18шт.

10

129-563

NUT,5/8"-11, G8

- hex, 5/8" - 11 NC, grade 8, bolt on cutting edge kit

18шт.

11

L116321

PLATE

- wear, bucket ear, bolt on cutting edge kit

2шт.

12

L116632

PLATE ASSY.

PLATE - wear, outer, bolt on cutting edge kit

2шт.
