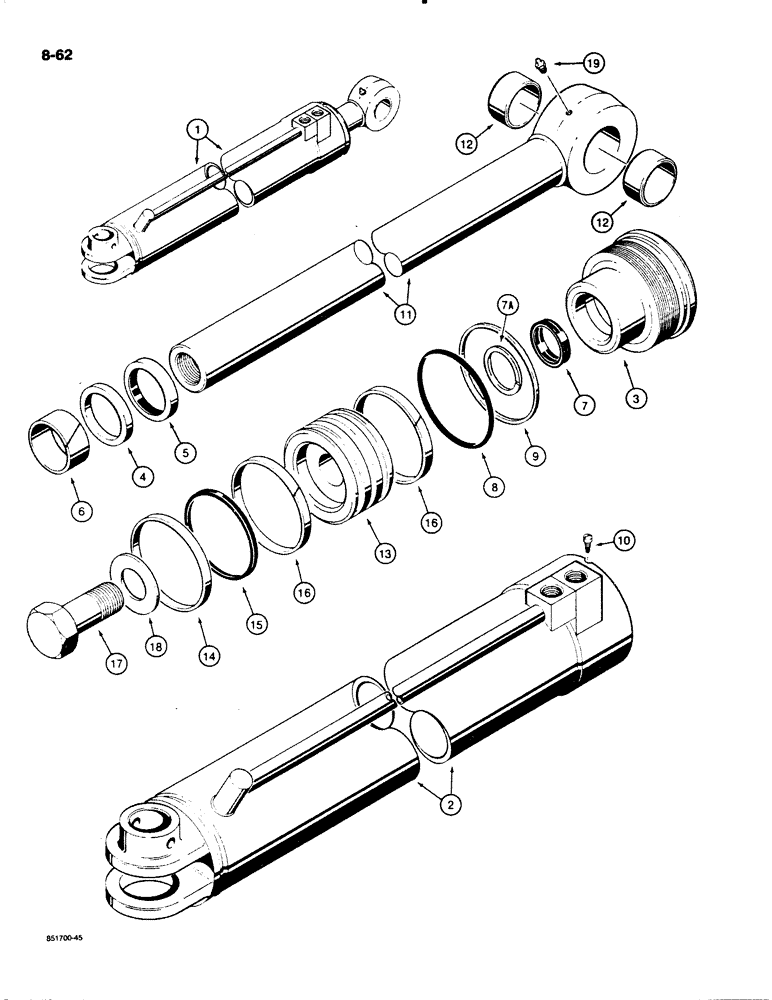

Запчасти Case W18B (8-62) - G101564 AND G101565 CLAM CYLINDERS (08) - HYDRAULICS

1

G101564

CYLINDER BLOCK

CYLINDER ASSEMBLY - 4 inch (102 mm) ID x 10 inch (254 mm) stroke, clam, right-hand, Includes: Ref. 2 - 19

1шт.

G101564 and G101565 clam cylinders are used with L107652 clam bucket on Figure 9-014.

1шт.

1

G101565

CYLINDER BLOCK

CYLINDER ASSEMBLY - 4 inch (102 mm) ID x 10 inch (254 mm) stroke, clam, left-hand, Includes: Ref. 2 - 19

1шт.

G101564 and G101565 clam cylinders are used with L107652 clam bucket on Figure 9-014.

1шт.

2

G31964

HYD TUBE,18.69" L

TUBE - cylinder, right-hand

1шт.

2

G31965

HYD TUBE

TUBE - cylinder, left-hand

1шт.

G107524

GLAND

ASSEMBLY - cylinder, Includes: Ref. 3 - 9

1шт.

3

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

4

NSS

NOT SOLD SEPARAT

RING - retaining, bushing

1шт.

5

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - piston rod

1шт.

Part of seal kit P/N G109423

1шт.

6

G101533

WEAR RING,Split, 50.8mm ID x 53.87mm OD x 25.15mm Thk

BEARING - center

1шт.

Part of seal kit P/N G109423

1шт.

7

G107923

SEAL,50.77mm ID x 63.63mm OD x 10.69mm Thk

- U-cup, piston rod, wide, with O-ring

1шт.

Part of seal kit P/N G109423

1шт.

7

G100778

SEAL

- U-cup, piston rod, service option - severe heat or cold

1шт.

7a

G107997

SEAL,50.37mm ID x 63.68mm OD x 3.05mm Thk

- buffer, grooved, piston rod, narrow

1шт.

Part of seal kit P/N G109423

1шт.

8

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

- gland

1шт.

Part of seal kit P/N G109423

1шт.

9

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

- Gland O-Ring

1шт.

Part of seal kit P/N G109423

1шт.

10

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, hex hd, No. 8 NC x 3/8 "

1шт.

11

G33626

ROD

ASSEMBLY - piston, 2 inch (51 mm) diameter, Includes: Ref. 12

1шт.

12

D33127

BUSHING,38.33mm ID x 47.63mm OD x 12.7mm L

- piston rod

2шт.

13

G100438

PISTON,100.89mm Bore, 32.8mm Rod, 50.7mm W

- cylinder

1шт.

14

G102285

SEAL,Locking, 98.55mm ID x 102.97mm OD x 6.96mm Thk

- piston

1шт.

Part of seal kit P/N G109423

1шт.

15

G100440

RING,Square, 5.28mm Thk x 88.01mm ID

- backup, piston seal

1шт.

Part of seal kit P/N G109423

1шт.

16

G100448

RING,101.6mm OD, Ext

- wear, piston

2шт.

Part of seal kit P/N G109423

1шт.

17

28-2040

BOLT,Hex, 1-1/4" - 12 x 2-1/2", Gr 8

- Hex, 1-1/4"-12 NF x 2-1/2", G8

1шт.

18

G32351

WASHER

- hardened

1шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

1шт.

G109423

GASKET KIT

KIT - seal, Includes: Refs. 5, 6, 7, 7A, 8, 9, 14, 15 & 16

1шт.
