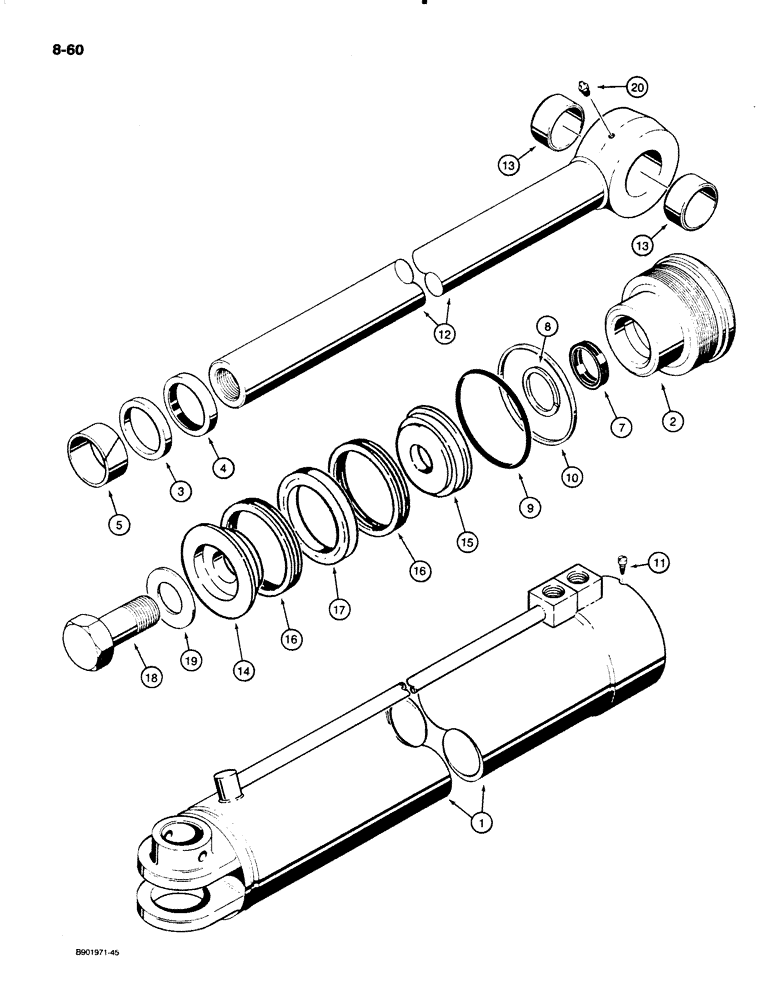

Запчасти Case W18B (8-60) - G33624 CLAM CYLINDER (08) - HYDRAULICS

G33624

CYLINDER

ASSEMBLY - 4 inch (102 mm) ID x 10 inch (254 mm) stroke, clam, left-hand, no longer available, order G101565 cylinder assembly on Figure 8-62, Includes: Ref. 1 - 20

1шт.

1

G31965

HYD TUBE

TUBE - cylinder, left-hand

1шт.

G107524

GLAND

ASSEMBLY - cylinder, Includes: Ref. 2 - 10

1шт.

2

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

3

NSS

NOT SOLD SEPARAT

RING - retaining, bushing

1шт.

4

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - piston rod

1шт.

5

G101533

WEAR RING,Split, 50.8mm ID x 53.87mm OD x 25.15mm Thk

BEARING - center

1шт.

7

G107923

SEAL,50.77mm ID x 63.63mm OD x 10.69mm Thk

- U-cup, piston rod, wide, with O-ring

1шт.

7

G100778

SEAL

- U-cup, piston rod, service option - severe heat or cold

1шт.

8

G107997

SEAL,50.37mm ID x 63.68mm OD x 3.05mm Thk

- buffer, grooved, piston rod, narrow

1шт.

9

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

- gland

1шт.

10

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

- Gland O-Ring

1шт.

11

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, hex hd, No. 8 NC x 3/8 "

1шт.

12

G33626

ROD

ASSEMBLY - piston, 2 inch (51 mm) diameter, Includes: Ref. 13

1шт.

13

D33127

BUSHING,38.33mm ID x 47.63mm OD x 12.7mm L

- piston rod

2шт.

14

D46930

PISTON

- cylinder, split, bolt end

1шт.

15

G33159

PISTON

- cylinder, split, rod end

1шт.

16

D47204

PACKING,89.15mm ID x 100.86mm OD

- piston, "V" type

2шт.

17

D47209

BEARING,3.006" ID x 3.987" OD x 0.631"

RING - bearing, center

1шт.

18

28-2040

BOLT,Hex, 1-1/4" - 12 x 2-1/2", Gr 8

- Hex, 1-1/4"-12 NF x 2-1/2", G8

1шт.

19

G32351

WASHER

- hardened

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

1шт.
