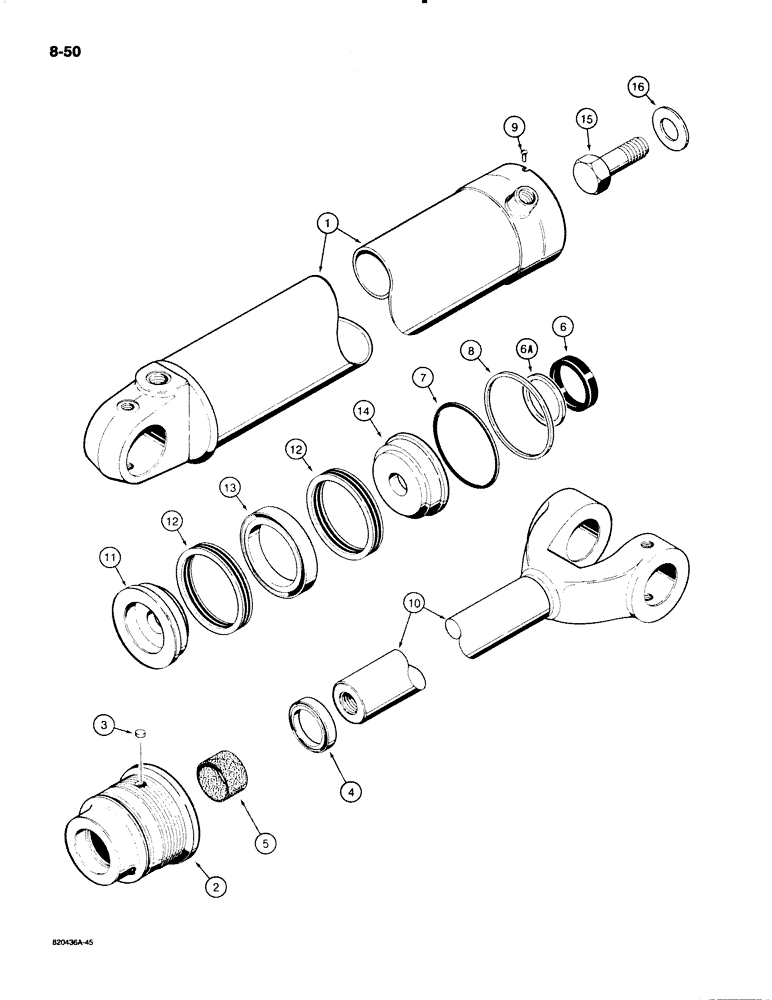

Запчасти Case W18B (8-50) - G101714 AND G101715 LIFT CYLINDERS (08) - HYDRAULICS

G101714

CYLINDER

ASSEMBLY - right-hand lift, 5" (127 mm) diameter x 30" (762 mm) stroke, Includes: Ref. 1 - 16

1шт.

G101715

CYLINDER

ASSEMBLY - left-hand lift, 5" (127 mm) diameter x 30" (762 mm) stroke, Includes: Ref. 1 - 16

1шт.

1

G101716

TUBE,127mm Bore Dia

- G101714 cylinder

1шт.

1

G101717

TUBE,127mm Bore Dia

- G101715 cylinder, not shown

1шт.

G104332

GLAND

ASSEMBLY - cylinder, Includes: Ref. 2 - 8

1шт.

2

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

3

G102569

PLUG

- nylon, thread locking, gland, if used

1шт.

4

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

WIPER - piston rod

1шт.

Part of seal kit P/N G109499

1шт.

5

G102427

BUSHING,63.5mm ID x 60.22mm OD x 37.85mm L

- center

1шт.

Part of seal kit P/N G109499

1шт.

6

G109052

SEAL

- piston rod, wide

1шт.

Part of seal kit P/N G109499

1шт.

6

G100780

SEAL

U-CUP SEAL - piston rod, service option, extreme heat or cold

1шт.

6a

G107998

SEAL,63.07mm ID x 79.2mm OD x 4.9mm Thk

- piston rod, narrow, used in addition to item 6 in some glands

1шт.

Part of seal kit P/N G109499

1шт.

7

238-5247

O-RING,0.139" Thk x 4.609" ID, -247, Cl 5, 75 Duro

Gland seal -247, 70 Duro, 4.609" ID x .139" Thk

1шт.

Part of seal kit P/N G109499

1шт.

8

G107970

BACK-UP RING,120.27mm ID x 127.13mm OD x 1.4mm Thk

BACKUP RING - Gland O-Ring

1шт.

Part of seal kit P/N G109499

1шт.

9

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, hex head, No. 8 NC x 3/8 inch, if used, not required when nylon plug is used

1шт.

10

G100526

ROD

- piston, 2-1/2" (64 mm) diameter

1шт.

11

D48562

PISTON,123.95mm Bore, 63.5mm Rod, 34.92mm W

- split, bolt half

1шт.

12

D47206

PACKING

ASSEMBLY - piston, V-type

2шт.

Part of seal kit P/N G109499

1шт.

13

D47211

BEARING WASHER,95.28mm ID x 126.69mm OD x 19mm Thk

SPACER - packing

1шт.

14

G100530

PISTON,123.95mm Bore, 32.54mm Rod, 36.92mm W

- split, rod half

1шт.

15

28-2048

BOLT,Hex, 1-1/4" - 12 x 3", Gr 8

1шт.

16

G104989

WASHER,34.29mm ID x 60.3mm OD x 4.78mm Thk

- hardened

1шт.

G109499

GASKET KIT

KIT - seal, Includes: Refs. 4, 5, 6, 6A, 7, 8 & 12

1шт.
