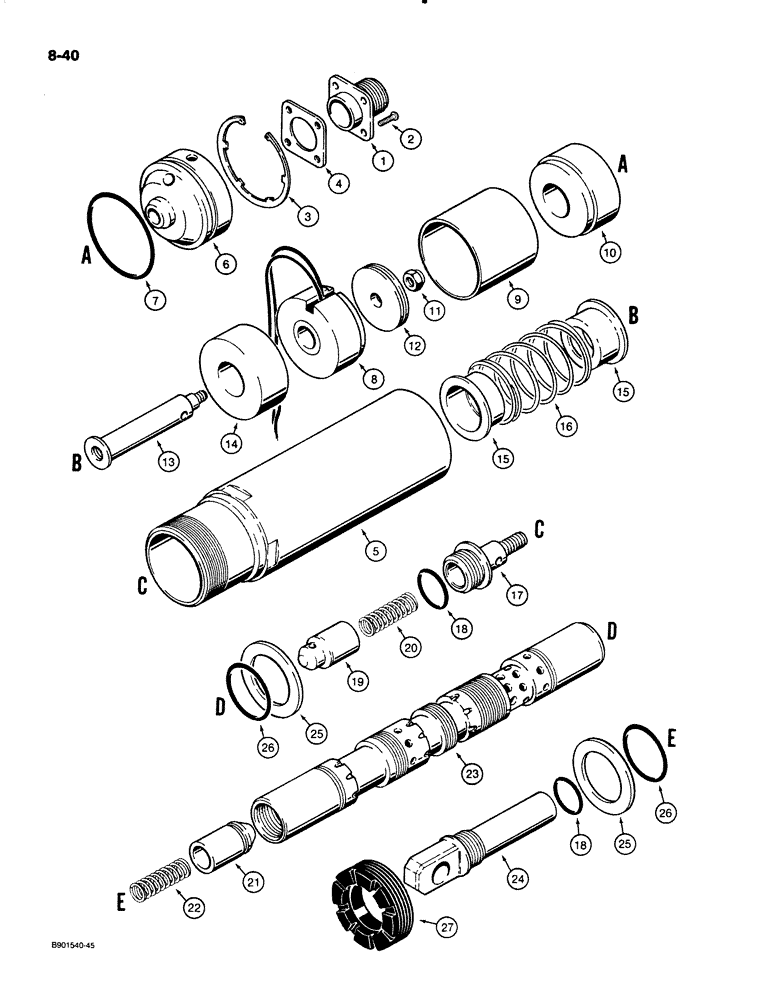

Запчасти Case W18B (8-40) - S300835 BUCKET SPOOL (08) - HYDRAULICS

S300835

SPOOL

ASSEMBLY - valve, bucket, Includes: Ref. 1 - 27

1шт.

1

L36043

CONNECTOR, ELEC

CONNECTOR - spool

1шт.

2

S300856

SCREW

- special, connector to spool end plug

4шт.

3

S300855

OIL SEAL

RING - retaining, spool end plug

1шт.

4

D80410

GASKET

- connector

1шт.

5

S300841

CAP

HOUSING - magnetic detent

1шт.

6

S300854

SPACER

PLUG - spool end

1шт.

7

A15528

O-RING,0.103" Thk x 1.674" ID, -131, Cl 5, 75 Duro

O-RING - spool end plug

1шт.

8

S300847

SOLENOID

COIL - magnetic detent

1шт.

9

S300852

SPACER

- detent plate

1шт.

10

S300848

SPACER

RETAINER - detent spacer

1шт.

11

S300865

NUT

- lock, detent plate

1шт.

12

S300853

WASHER

PLATE - detent

1шт.

13

S300850

SPOOL

EXTENSION - spool, detent

1шт.

14

S300851

CENTERING RING

RETAINER - detent coil

1шт.

15

A13164

RETAINER,13.49mm ID x 37.31mm OD

SEAT - spring

2шт.

16

A15981

SPRING

- spool centering

1шт.

17

S300842

END

CONNECTOR - spool to detent extension

1шт.

18

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

19

S300844

VALVE POPPET

POPPET - spool, inner

1шт.

20

S300843

SPRING

- inner poppet

1шт.

21

S300845

VALVE POPPET

POPPET - spool, outer

1шт.

22

S300846

SPRING

- outer poppet

1шт.

23

NSS

NOT SOLD SEPARAT

SPOOL - valve, tilt

1шт.

24

S300849

EYE

- spool

1шт.

25

L32604

RETAINER,1.007" ID x 1.672" OD x 0.187"

RETAINER - O-ring, inner and outer

2шт.

26

A13184

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

- spool, inner and outer

2шт.

27

L32608

RETAINER

WIPER - spool, includes retainer

1шт.
