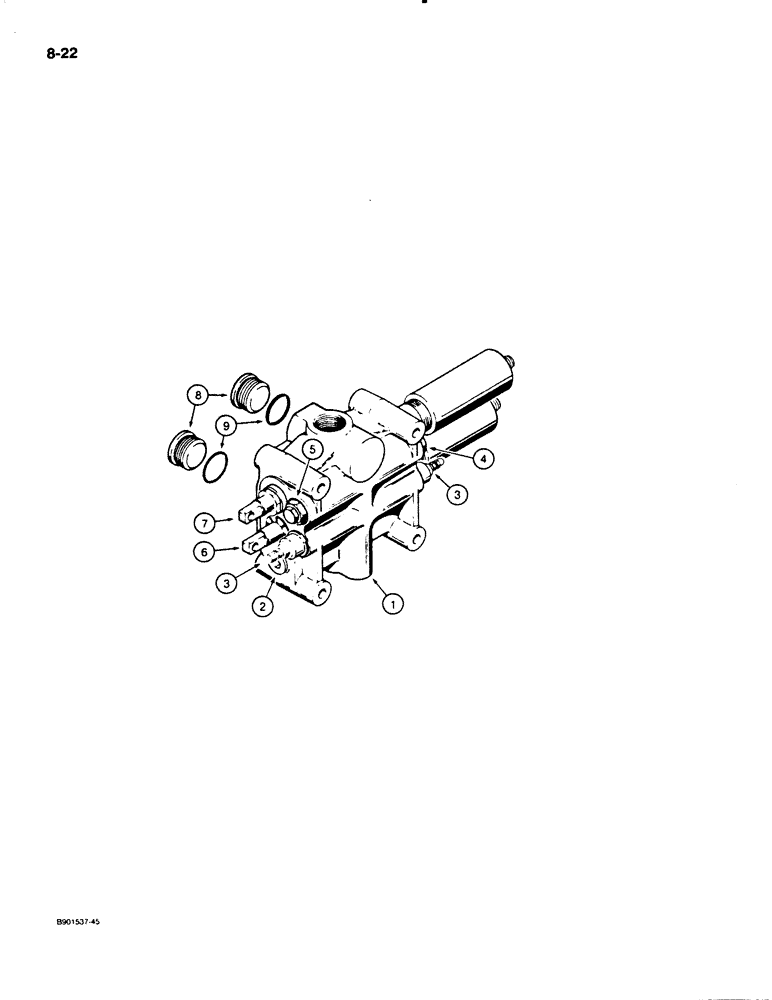

Запчасти Case W18B (8-22) - L127094 LOADER CONTROL VALVE - 2 SPOOL (08) - HYDRAULICS

L127094

VALVE

ASSEMBLY - loader control, 2 spool, Parker Hannifin No. VDSP24RF299, Includes: Ref. 1 - 9

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

2

S300834

VALVE

- main relief, parts list Figure 8-42

1шт.

3

D146629

VALVE PRESSURE RELIE

VALVE - circuit relief, used at ports 1A and 1B of bucket spool, parts list Figure 8-46

2шт.

4

D146628

VALVE

- load check, used at port 2B of lift spool, parts list Figure 8-44

1шт.

5

S300837

VALVE

- anticavitation, used at port 2A of lift spool, parts list Figure 8-44

1шт.

6

S300835

SPOOL

- bucket, parts list Figure 8-40

1шт.

7

S300836

SPOOL

- lift, parts list Figure 8-38

1шт.

8

218-5215

PLUG,Hex Soc, 1 5/8"-12 ORB

- hex socket, 1-5/8-12 inch O-ring boss, Includes: Ref. 9

2шт.

9

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk

1шт.
