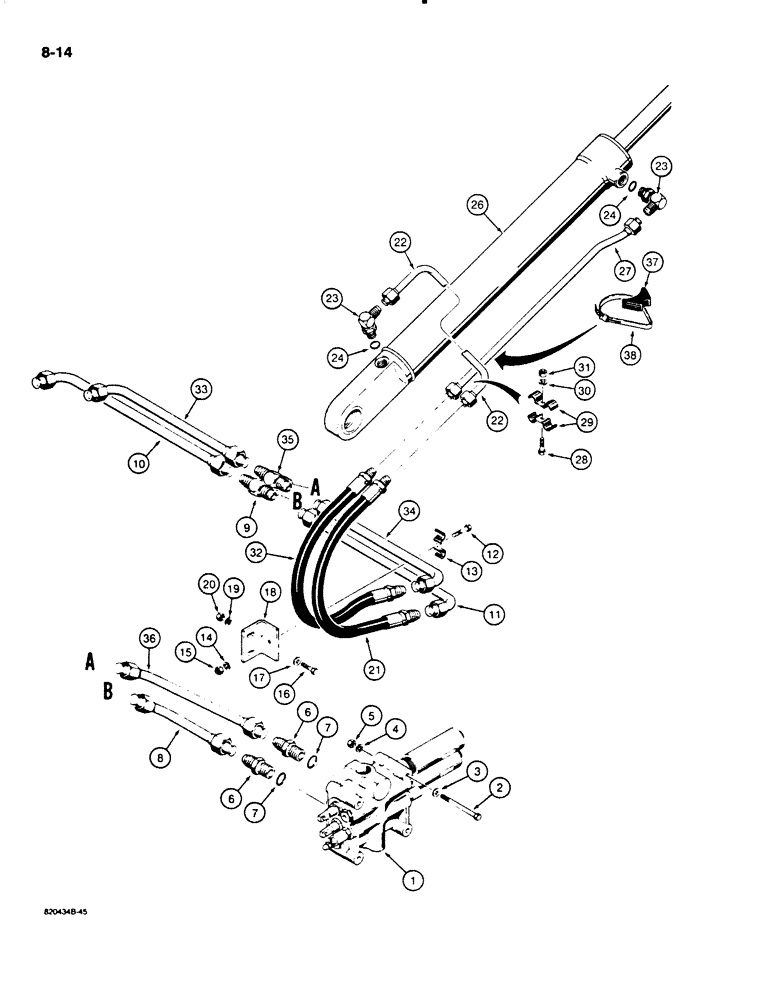

Запчасти Case W18B (8-14) - HYDRAULIC CIRCUIT, LOADER BUCKET (08) - HYDRAULICS

1

REF

INSTRUCTION

CONTROL VALVE - loader, see Figures 8-20 through 8-26 for valve options

1шт.

2

413-888

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 5

- hex head, 1/2 NC x 5-1/2 inch

3шт.

3

95-8

WASHER,1/2"

flat 1/2"

3шт.

4

92-8

LOCK WASHER,1/2"

3шт.

5

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

3шт.

6

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR - male, straight, Incl. Ref. 7

2шт.

7

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- connector

1шт.

8

L47509

TUBE,1" OD x 9.7, 5.4" L

- valve to closed end of bucket cylinder

1шт.

9

218-598

TEE,1 5/16"-12 37 Degree

- male

1шт.

10

L111604

TUBE ASSY.,1" OD x 23.5, 4.2" L

TUBE - tee to left-hand bucket cylinder, closed end

1шт.

11

L111607

TUBE ASSY.,1" OD x 22.2, 4.2" L

TUBE - tee to right-hand bucket cylinder, closed end

1шт.

12

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

13

R15257

CLAMP

- tube

2шт.

14

92-6

LOCK WASHER,3/8"

2шт.

15

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

16

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1-1/2"

4шт.

17

95-6

WASHER,3/8"

- flat, 3/8"

4шт.

18

L47468

BRACKET

- tube mounting

2шт.

19

92-6

LOCK WASHER,3/8"

4шт.

20

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

21

L112491

HOSE,0.75" ID x 37.00", SAE 100R2 Type B

2шт.

22

L47633

TUBE,0.75" OD

- to closed end of bucket cylinder

2шт.

23

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º, adjustable, Incl. Ref. 24

4шт.

24

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- elbow

1шт.

25

REF

INSTRUCTION

CYLINDER - left-hand bucket, not shown, for correct assembly and components, see Figures 8-52 and 8-54

1шт.

26

REF

INSTRUCTION

CYLINDER - right-hand bucket, for correct assembly and components, see Figures 8-52 through 8-56

1шт.

27

L77794

PIPE,0.75" OD x 27.6, 0.9" L

TUBE - to rod end of bucket cylinders

2шт.

28

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1-1/2"

2шт.

29

R15257

CLAMP

- tube

4шт.

30

92-6

LOCK WASHER,3/8"

2шт.

31

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

32

L112491

HOSE,0.75" ID x 37.00", SAE 100R2 Type B

2шт.

33

L111631

PIPE ASSY.,1" OD x 18.2, 4.2" L

TUBE - tee to left-hand bucket cylinder, rod end

1шт.

34

L111599

TUBE ASSY.,1" OD x 23.5, 4.2" L

TUBE - tee to right-hand bucket cylinder, rod end

1шт.

35

218-598

TEE,1 5/16"-12 37 Degree

- male

1шт.

36

L107085

PIPE,1" OD x 9.31, 13.04" L

TUBE - valve to rod end of bucket cylinder

1шт.

37

L79937

SADDLE

- tube clamp

2шт.

38

214-183

HOSE CLAMP,5-1/4" - 6-1/8", HD Worm

CLAMP - tube to cylinder

2шт.
