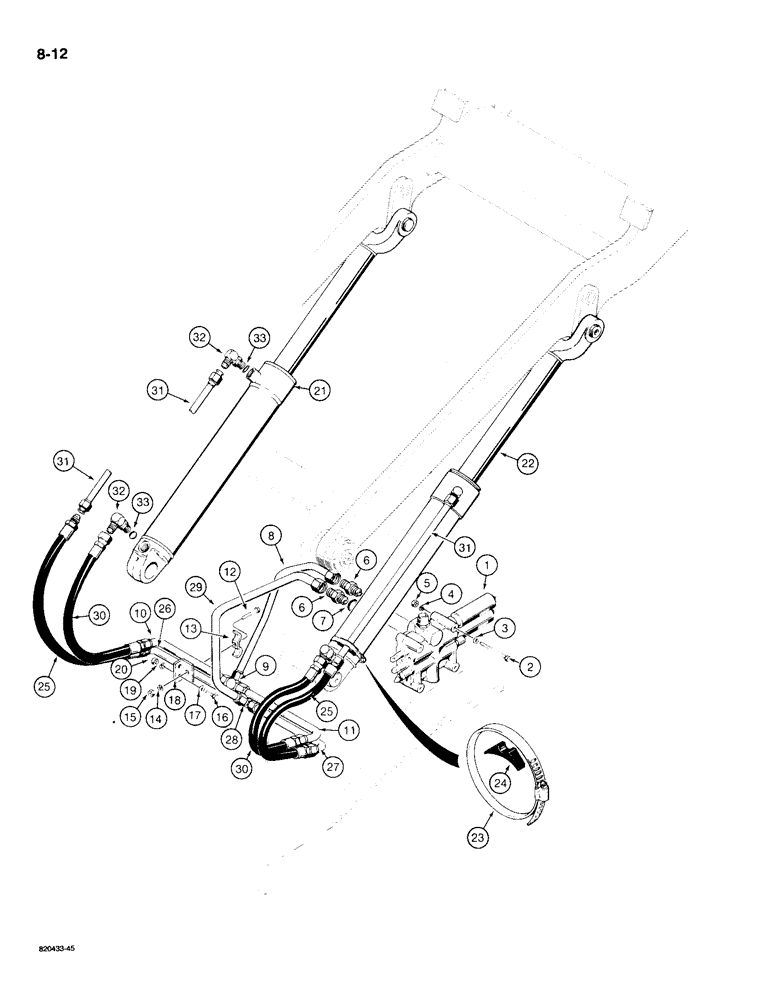

Запчасти Case W18B (8-12) - HYDRAULIC CIRCUIT, LOADER LIFT (08) - HYDRAULICS

1

REF

INSTRUCTION

CONTROL VALVE - loader, see Figures 8-20 through 8-26 for valve options

1шт.

2

413-888

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 5

- hex, 1/2 NC x 5-1/2 inch

3шт.

3

95-8

WASHER,1/2"

flat 1/2"

3шт.

4

92-8

LOCK WASHER,1/2"

3шт.

5

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

3шт.

6

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR - male, straight, Incl. Ref. 7

2шт.

7

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- connector

1шт.

8

L47757

TUBE,1" OD

- valve to closed end of lift cylinder

1шт.

9

218-598

TEE,1 5/16"-12 37 Degree

- male

1шт.

10

L111638

TUBE ASSY.,1" OD x 22.2, 4.2" L

TUBE - tee to left-hand lift cylinder, closed end

1шт.

11

L111622

PIPE,1" OD x 16.7, 4.2" L

TUBE - tee to right-hand lift cylinder, closed end

1шт.

12

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

13

R15257

CLAMP

- tube

2шт.

14

92-6

LOCK WASHER,3/8"

2шт.

15

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

16

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1-1/2"

4шт.

17

95-6

WASHER,3/8"

- flat, 3/8"

4шт.

18

L47468

BRACKET

- tube clamp

2шт.

19

92-6

LOCK WASHER,3/8"

4шт.

20

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

21

G101715

CYLINDER

- left-hand lift, parts list Figure 8-50

1шт.

22

G101714

CYLINDER

- right-hand lift, parts list Figure 8-50

1шт.

23

214-184

HOSE CLAMP,5-3/4" - 6-5/8", HD Worm

CLAMP - tube to cylinder

2шт.

24

L79937

SADDLE

- tube clamp

2шт.

25

L112491

HOSE,0.75" ID x 37.00", SAE 100R2 Type B

to Rod End of Lift Cylinders 0.75" ID x 37.00", SAE 100R2 Type B

2шт.

26

L111610

PIPE ASSY.,1" OD x 18.2, 4.2" L

TUBE - tee to left-hand lift cylinder, rod end

1шт.

27

L111620

PIPE,1" OD x 16.7, 4.2" L

TUBE - tee to right-hand lift cylinder, rod end

1шт.

28

218-598

TEE,1 5/16"-12 37 Degree

- male

1шт.

29

L47466

TUBE,1" OD

- valve to rod end of lift cylinder

1шт.

30

L111302

HOSE

- to closed end of lift cylinders, 37" (940 mm) long

2шт.

31

L78024

PIPE,0.75" OD x 33.5, 1.2" L

TUBE - to rod end of lift cylinders

2шт.

32

L114091

FITTING

ELBOW - 90 degree, adjustable, at cylinder ports, Includes: Ref. 33

4шт.

33

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- elbow

1шт.
