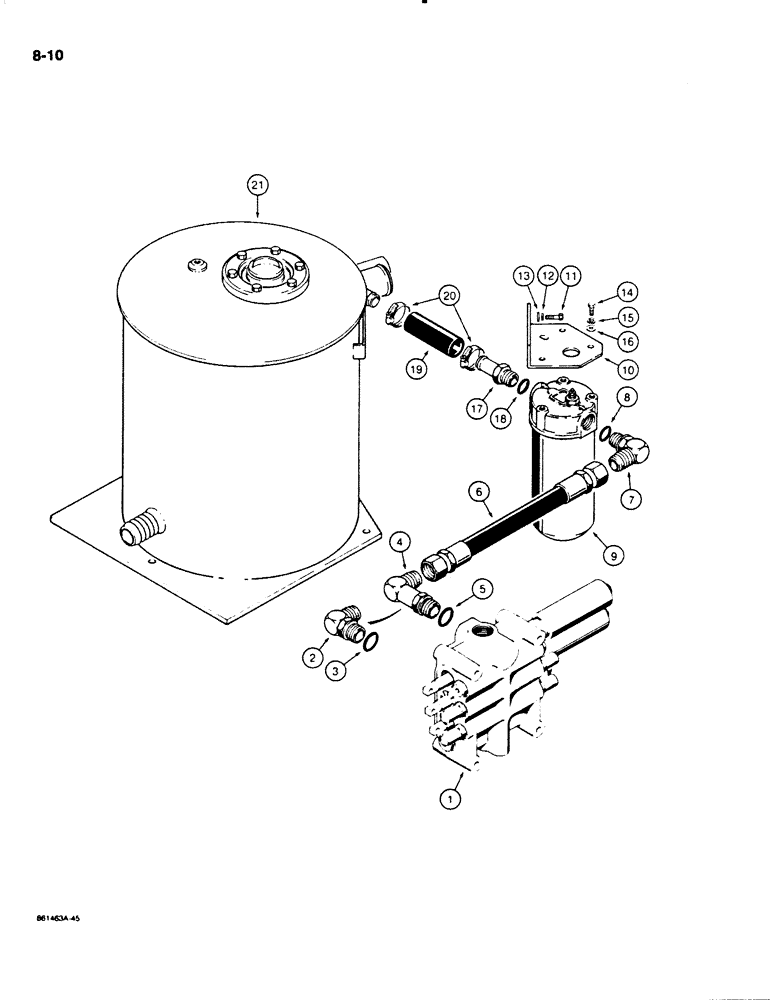

Запчасти Case W18B (8-10) - LOADER HYD. RETURN CIRCUIT, LOADER CONTROL VALVE TO HYD. RESERVOIR USED ON P.I.N. 9155784 & AFTER (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
REF
INSTRUCTION
CONTROL VALVE - loader, see Figures 8-20 through 8-26 for valve options
1шт.
2
218-5112
ELBOW,90 Degree Elbow, 1-5/8" - 12 Male JIC x 1-5/8" - 12 Male ORB
- 90 degree, adjustable, used with 2 spool valve, Includes: Ref. 3
1шт.
3
218-5011
O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro
- elbow
1шт.
4
218-5551
ELBOW,90 Degree Elbow, 1-5/8" - 12 Male JIC x 1-5/8" - 12 Male ORB
- 90 degree, adjustable, used with 3 spool valve, Includes: Ref. 5
1шт.
5
218-5011
O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro
- elbow
1шт.
6
L115590
HOSE,1.25" ID x 19.75", SAE 100R3
Valve to Filter 1.25" ID x 19.75", SAE 100R3
1шт.
7
218-5116
ELBOW,90 Degree Elbow, 1-5/8" - 12 Male JIC x 1-5/16" - 12 Male ORB
Adjustable, Incl. Ref. 8 90º, 1 5/8"-12, 37º x 1 5/16"-12, O-Ring
1шт.
8
218-5010
O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro
- elbow
1шт.
9
L114122
FILTER
ASSEMBLY - hydraulic oil, parts list Figure 8-48
1шт.
10
L115582
RELAY
BRACKET - filter
1шт.
11
113-208
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5
2шт.
12
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
2шт.
13
195-104
WASHER,3/8"
- flat, , plated 3/8"
2шт.
14
113-207
BOLT,Hex, 3/8" - 16 x 1", Gr 5
3шт.
15
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
3шт.
16
195-104
WASHER,3/8"
- flat, , plated 3/8"
3шт.
17
217-184
FITTING,1-1/4" Hose Barb x 1-5/16" - 12 Male ORB
Includes Ref. 18 1 1/4" Hose X 1 5/16"-12 ORB, Beaded
1шт.
18
218-5010
O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro
- stem fitting
1шт.
19
D36350
HOSE
- 1-1/4" (32 mm) ID x 4" (102 mm) long, cut from S118465 bulk hose, see below
1шт.
20
214-258
HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm
2шт.
21
REF
INSTRUCTION
HYDRAULIC RESERVOIR - see Figure 8-02, items 13 and 13A for correct reservoir identification
1шт.
S118465
HOSE,1.25" ID x 180.00", SAE 100R3
1.25" ID x 180.00", SAE 100R3
1шт.
