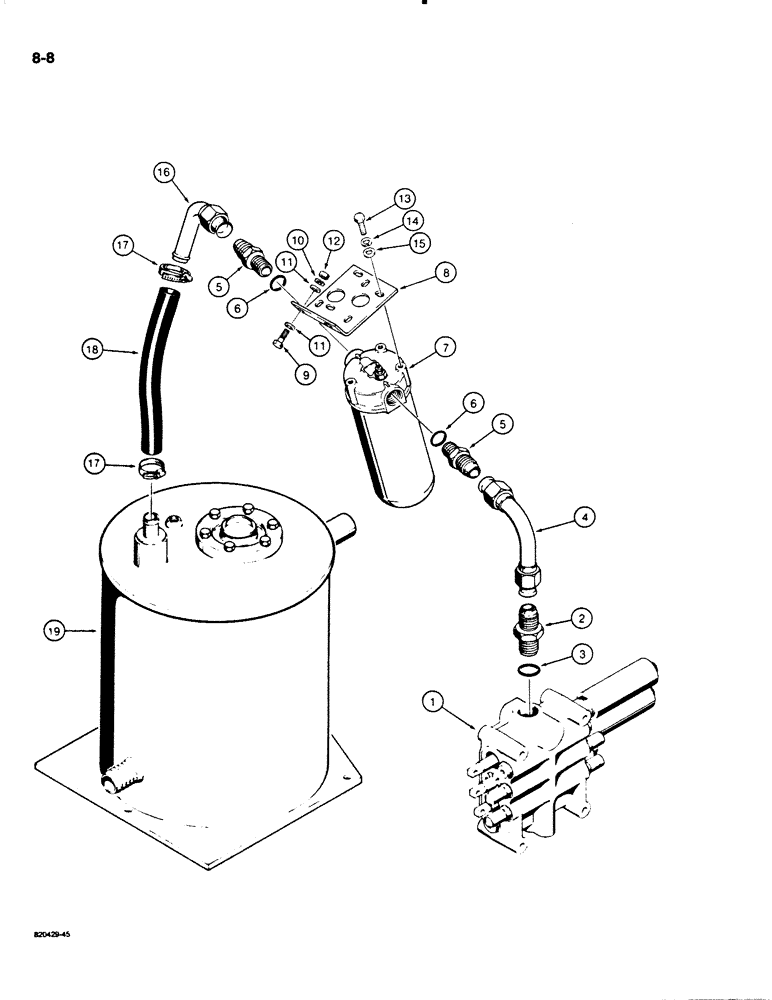

Запчасти Case W18B (8-08) - LOADER HYD. RETURN CIRCUIT, LOADER CONTROL VALVE TO HYD. RESERVOIR USED BEF. P.I.N. 9155784 (08) - HYDRAULICS

1

REF

INSTRUCTION

CONTROL VALVE - loader, see Figures 8-20 - 8-26 for valve options

1шт.

2

218-5072

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-5/8" - 12 Male ORB

CONNECTOR - straight, Includes: Ref. 3

1шт.

3

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

- connector

1шт.

4

L107218

PIPE,177.8, 151.4 mm L

TUBE - valve to filter

1шт.

5

218-5039

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, Includes: Ref. 6

2шт.

6

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter

1шт.

7

L114122

FILTER

ASSEMBLY - hydraulic oil, parts list Figure 8-48

1шт.

8

L106692

BRACKET

- filter

1шт.

9

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

10

92-6

LOCK WASHER,3/8"

2шт.

11

95-6

WASHER,3/8"

- flat, 3/8"

4шт.

12

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

13

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

14

92-6

LOCK WASHER,3/8"

3шт.

15

95-6

WASHER,3/8"

- flat, 3/8"

3шт.

16

L107308

TUBE,102, 127 mm L

- filter to hydraulic reservoir

1шт.

17

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

18

L107328

HOSE,31.75mm ID x 228.6mm L, SAE 100R3

- return to hydraulic reservoir

1шт.

19

REF

INSTRUCTION

HYDRAULIC RESERVOIR - see Figure 8-02, items 13 and 13A for correct reservoir identification

1шт.
