Запчасти Case W18B (7-82) - L117120 CLUTCH CUTOUT CYLINDER (07) - BRAKES

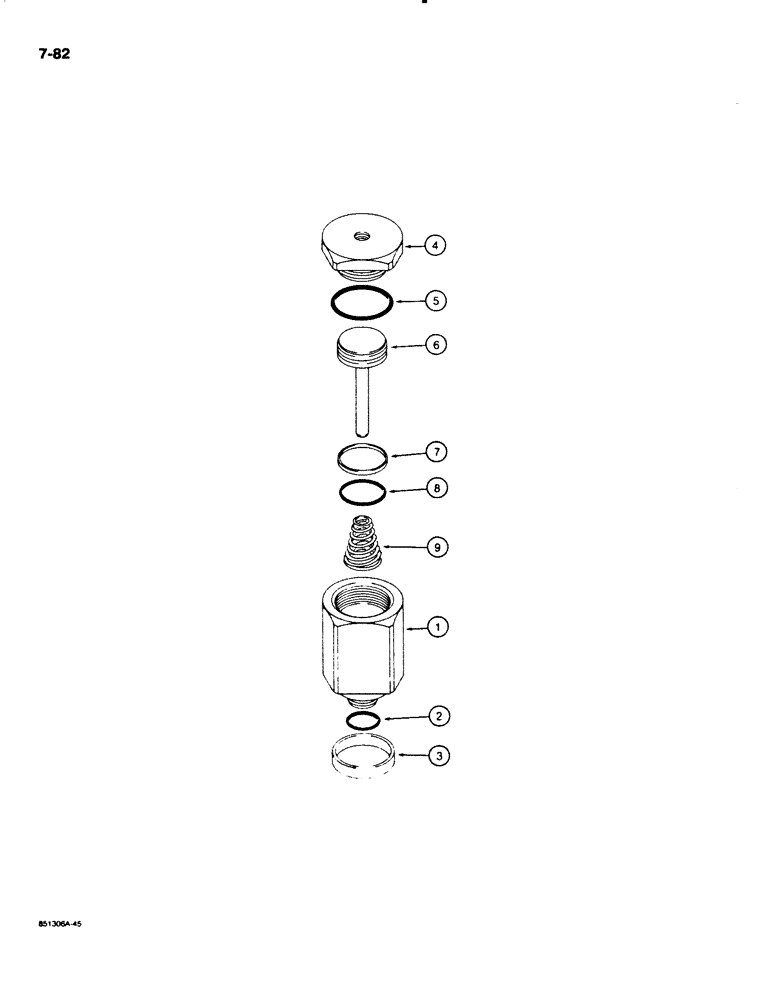

Схема запчастей Case W18B - (7-82) - L117120 CLUTCH CUTOUT CYLINDER (07) - BRAKES

Артикул

Название

Примечание

Количество

L117120

CYLINDER

- clutch cutout, Includes: Ref. 1 - 9

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - piston

1шт.

2

N13181

O-RING,0.987" ID x 1.193" OD x 0.103"

- piston housing

1шт.

3

N13180

FELT

GASKET - felt

1шт.

4

N13184

PLUG

- cylinder

1шт.

5

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- plug

1шт.

6

N13182

PISTON

- cylinder

1шт.

7

N13183

OIL SEAL

RING - glide

1шт.

8

A58602

O-RING,0.103" Thk x 0.924" ID, -119, Cl 5, 75 Duro

- piston

1шт.

9

N13179

SPRING

- cylinder

1шт.

Выбрано товаров: 10
