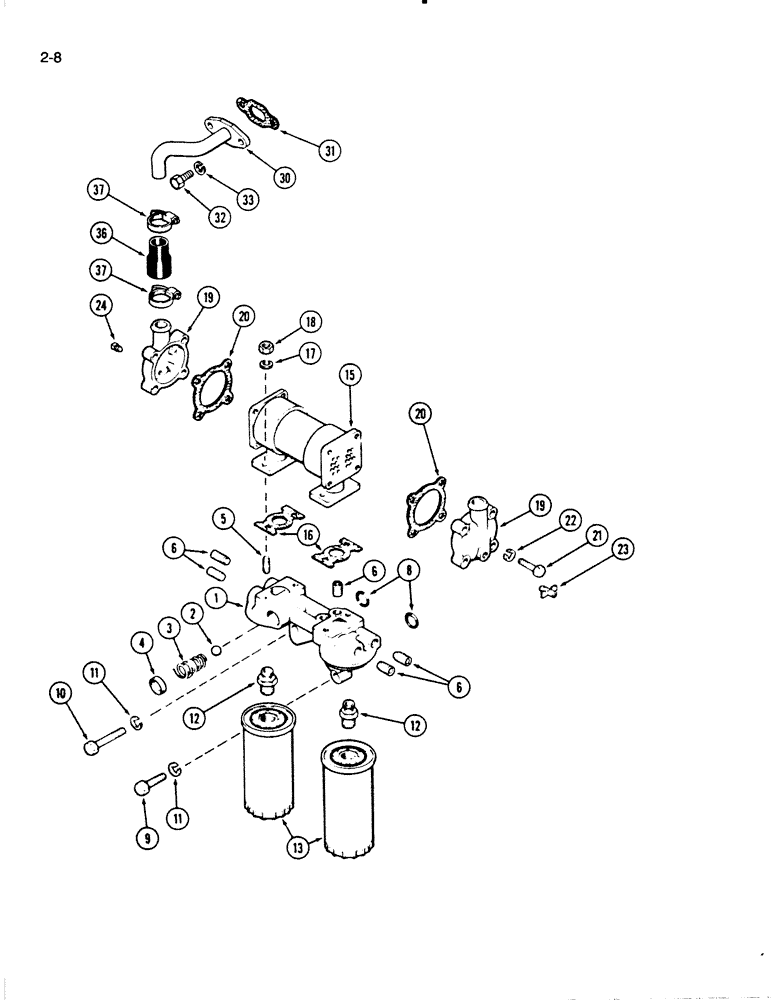

Запчасти Case W18B (2-08) - OIL FILTER AND HEAT EXCHANGER, 504BDT ENGINE (02) - ENGINE

1

A154541

BASE

ASSEMBLY - oil filter, Includes: Ref. 2

1шт.

2

211-219

BALL

- 3/4 inch, Grade 25, chrome alloy steel

1шт.

3

A146897

SPRING

- relief

1шт.

4

41-1020

PLUG,Cup, 1 1/4"

- cup, 1-1/4 inch diameter

1шт.

5

G102128

BOLT

- 3/8 NC x 1-1/2 inch

4шт.

6

221-844

PLUG,Hex Soc, 1/2"-14

- hex socket, 1/2 inch PT

5шт.

8

A64434

O-RING,0.93" ID x 1.142" x 0.106"

- base to block

2шт.

9

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

10

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hex, 1/2 NC x 3 inch

1шт.

11

195-533

WASHER,1/2", SAE

- flat, 1/2" (17/32 x 1-1/16 x 3/32")

2шт.

12

A63916

ADAPTER

-, Serial Range: filter-base

2шт.

13

NSS

NOT SOLD SEPARAT

ELEMENT - oil filter, 6-7/8 inch long (JI Case installed) (Order A44081)

2шт.

13

A44081

ENGINE OIL FILTER

ELEMENT - filter, 8-5/8 inch long

2шт.

15

A63917

COOLER

EXCHANGER - heat

1шт.

16

A65359

GASKET

- heat, Serial Range: exchanger-base

2шт.

17

492-11038

LOCK WASHER,3/8"

4шт.

18

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

19

A64349

HOOD

PLATE - end, heat exchanger

2шт.

20

A63920

GASKET

- end plate

2шт.

21

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

8шт.

22

492-11038

LOCK WASHER,3/8"

8шт.

23

217-107

VALVE

- 1/8 inch PT

1шт.

24

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - square, 1/8 inch PT

1шт.

30

A64350

TUBE

- heat, Serial Range: exchanger-block

1шт.

31

A58670

GASKET

-, Serial Range: tube-block

1шт.

32

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

33

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

36

A64353

HOSE

- tube to heat exchanger

1шт.

37

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - adj, 13/16 - 1-3/4 inch diameter

2шт.
